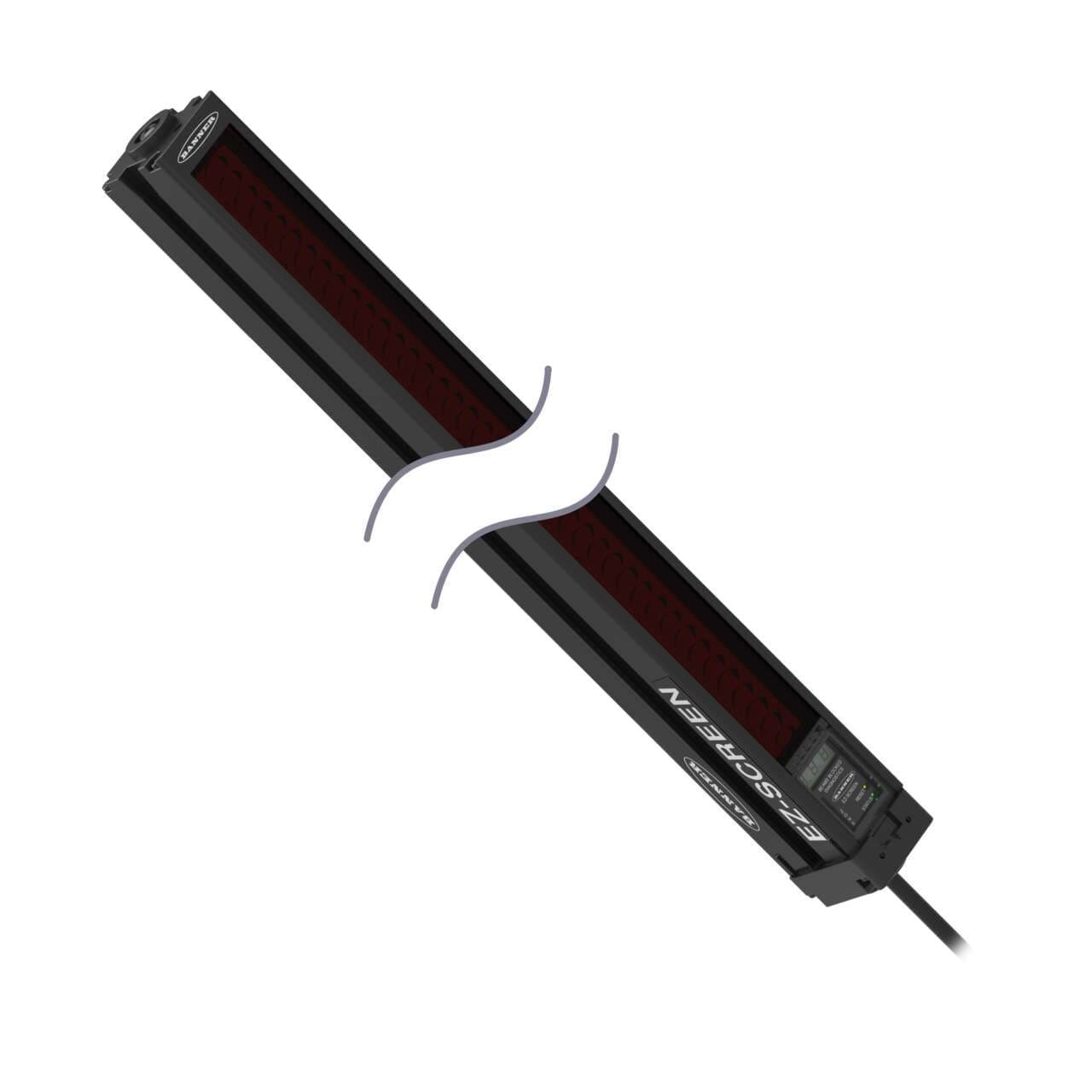

SLSR30-450P8 Banner Safety Light Curtains

SLSR30-450P8 on Powermatic Associates
Banner
  • SLSR30-450P8
  • SLSR30-450P8

Part#:SLSR30-450P8

Alt. Part#:73894

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

EZ-SCREEN Receiver; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 450 mm (17.7 in); Housing Length: 522 mm (20.6 in); Connection: 8-pin M12 Pigtail Connectors

Product Details

  • Weight
    716.67536 g
  • Country Of Origin
    MX
  • Feature: Integral Muting
    No
  • Feature: ESD Safe
    No
  • Feature: End-to-End Sensing
    No
  • Test Input
    No
  • Trip/Latch Output
    Selectable
  • OSSD Rating
    24 V dc at 0.5 A each
  • Supply Current
    275 mA max.
  • Auxiliary Output
    Yes
  • Vibration
    10-55 Hz at 0.35 mm
  • System Type
    Receiver
  • Fault Output
    No
  • Short Protection
    Yes
  • Shock
    10g at 16ms (6000 cycles)
  • Reduced Resolution
    Yes
  • Scan Code
    Selectable
  • SIL Rating
    SIL3; CL3
  • Response Time
    13
  • Resolution (mm)
    30
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Recovery Time
    25-152 / 81-495
  • Operating Distance (m)
    0.1 - 18
  • Operating Voltage
    24 V dc +/- 15%
  • Number of Pins (Receiver/Emitter)
    8
  • Fixed Blanking
    Yes
  • IP Rating
    IP65
  • low-profile
    No
  • Overall Length (mm)
    522
  • Connector Type
    M12 Pigtail (Yellow)
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Electrical Safety Class
    III
  • PL Rating
    Ple
  • Housing Finish
    Yellow Polyester
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Defined Area Height (mm)
    450
  • Dimensions WxD (mm)
    36 x 45.2
  • Safety Level
    Type 4
  • External Monitoring Device
    1 or 2 Channel
  • Primary Housing Material
    Aluminum

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSR30-450P8 on Powermatic Associates is $1,116.00. Order now.

About the product

Banner Engineering SLSR30-450P8 is a safety light curtain designed for hand detection with a protective height of 450mm and a resolution of 30mm. This component of the 14/30 series features an aluminium housing with an acrylic lens and die-cast zinc end caps. It is pre-wired with a 300mm pigtail that terminates with an 8-pin Euro-style M12 connector. The unit operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. It offers a degree of protection rated at IP65. The dimensions include a net width of 36mm, a net height of 522mm, and a net depth of 46mm. The SLSR30-450P8 has a 30mm beam spacing/pitch and a sensing distance ranging from 10cm to 18m. It is equipped with two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary functions, one digital input (10Vdc-30Vdc) for EDM, and one digital input (10Vdc-30Vdc) for reset functions. The response time is 13ms.
