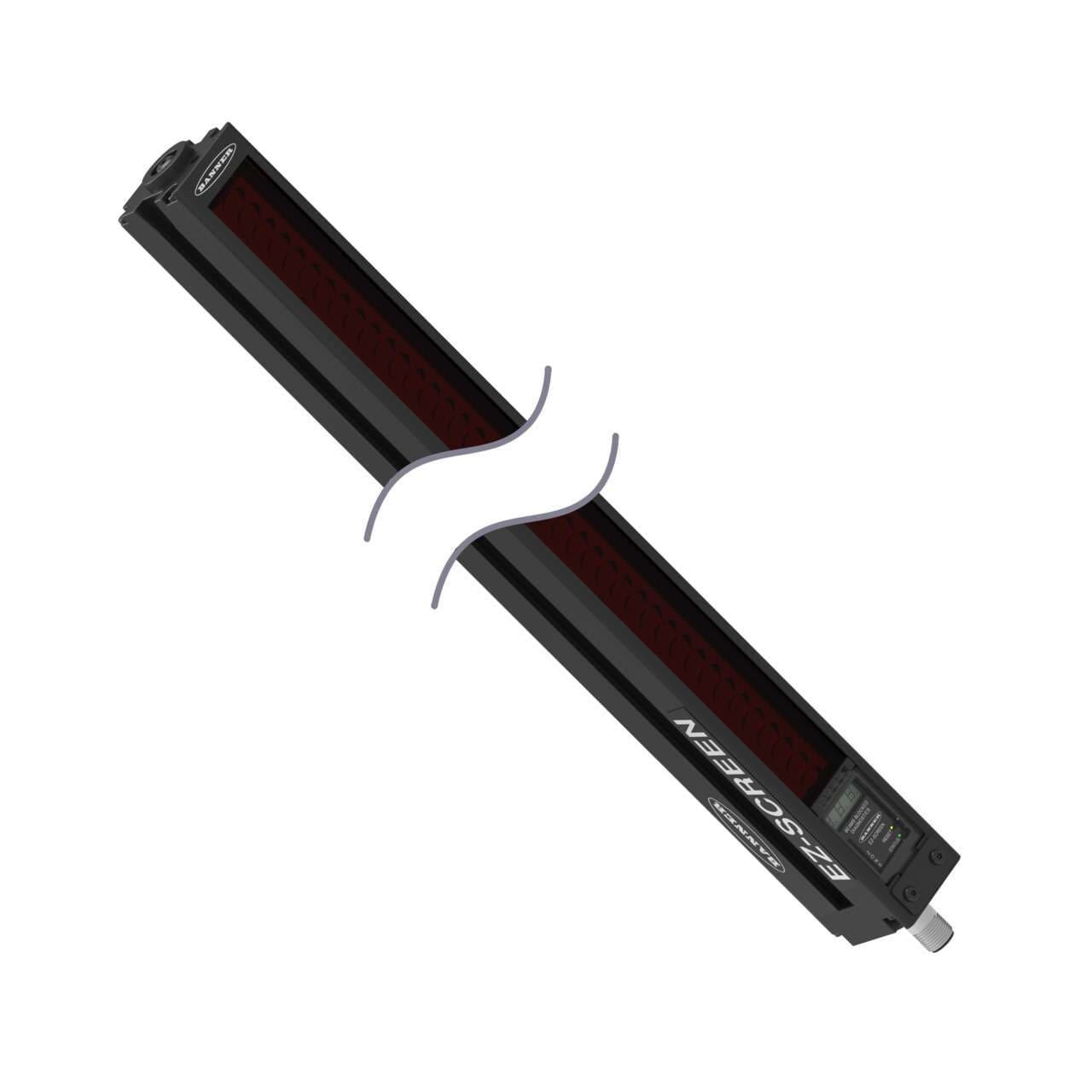

SLSR30-750Q8 Banner Safety Light Curtains

SLSR30-750Q8 on Powermatic Associates
Banner

Part#:SLSR30-750Q8

Manufacturer:Banner

Alt. Part#:71252

Product Lifecycle:Active

Get a quick Quote!

EZ-SCREEN Receiver; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 750 mm (29.5 in); Housing Length: 821 mm (32.3 in); Connection: 8-pin M12 Connector

About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SLSR30-750Q8 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    4535.92 g
  • Country Of Origin
    MX
  • Trip/Latch Output
    Selectable
  • Feature: End-to-End Sensing
    No
  • OSSD Rating
    24 V dc at 0.5 A each
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Supply Current
    275 mA max.
  • Fault Output
    No
  • System Type
    Receiver
  • Vibration
    10-55 Hz at 0.35 mm
  • Auxiliary Output
    Yes
  • Electrical Safety Class
    III
  • SIL Rating
    SIL3; CL3
  • Number of Pins (Receiver/Emitter)
    8
  • Reduced Resolution
    Yes
  • IP Rating
    IP65
  • Recovery Time
    25-152 / 81-495
  • Housing Finish
    Yellow Polyester
  • PL Rating
    Ple
  • Defined Area Height (mm)
    750
  • Primary Housing Material
    Aluminum
  • Overall Length (mm)
    821
  • Feature: Integral Muting
    No
  • Feature: ESD Safe
    No
  • Test Input
    No
  • Short Protection
    Yes
  • Shock
    10g at 16ms (6000 cycles)
  • Response Time
    17
  • Scan Code
    Selectable
  • Resolution (mm)
    30
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Operating Distance (m)
    0.1 - 18
  • Operating Voltage
    24 V dc +/- 15%
  • External Monitoring Device
    1 or 2 Channel
  • Fixed Blanking
    Yes
  • Dimensions WxD (mm)
    36 x 45.2
  • Connector Type
    M12
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Safety Level
    Type 4
  • low-profile
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SLSR30-750Q8 Description

Banner Engineering SLSR30-750Q8 is a safety light curtain designed for hand detection with a protective height of 750mm and a resolution of 30mm. It features an aluminium housing with an acrylic lens and die-cast zinc end caps, colored in yellow. This model is specifically a receiver unit within the 14/30 series, equipped with an 8-pin Euro-style M12 connector for connectivity. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. The SLSR30-750Q8 offers a degree of protection rated at IP65 and has dimensions of 36mm in width, 821mm in height, and 46mm in depth. It includes 2 digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and 1 digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary functions, alongside 1 digital input (10Vdc-30Vdc) for EDM and 1 digital input (10Vdc-30Vdc) for RESET. The sensing distance ranges from 10cm to 18m, with a response time of 17ms. The device is designed with a 30mm beam spacing/pitch for accurate detection.

Related documents SLSR30-750Q8 Specs

SLSR30-750Q8 112852.pdf
