SLSE30-300Q8 Banner Safety Light Curtains
Part#:SLSE30-300Q8
Alt. Part#:72368
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
EZ-SCREEN Emitter; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 300 mm (11.8 in); Housing Length: 372 mm (14.6 in); Connection: 8-pin M12 Connector; No test input
Product Details
- Weight 1601.542634 g
- Country Of Origin MX
- Feature: End-to-End Sensing No
- Supply Current 100 mA max.
- Housing Material Aluminum; Zinc; Acrylic
- Short Protection Yes
- Feature: Integral Muting No
- Feature: ESD Safe No
- Test Input No
- Trip/Latch Output N/A
- OSSD Rating N/A
- Fault Output No
- Auxiliary Output No
- Vibration 10-55 Hz at 0.35 mm
- Shock 10g at 16ms (6000 cycles)
- System Type Emitter
- Scan Code Selectable
- SIL Rating SIL3; CL3
- Electrical Safety Class III
- Response Time 11
- Reduced Resolution No
- Resolution (mm) 30
- Recovery Time 25-152 / 81-495
- PL Rating Ple
- Operating Temperature 0 to +55 deg. C; RH 95%
- Operating Distance (m) 0.1 - 18
- Number of Pins (Receiver/Emitter) 8
- Operating Voltage 24 V dc +/- 15%
- IP Rating IP65
- Housing Finish Yellow Polyester
- Fixed Blanking No
- External Monitoring Device No
- Connector Type M12
- Dimensions WxD (mm) 36 x 45.2
- Overall Length (mm) 372
- Primary Housing Material Aluminum
- low-profile No
- Safety Level Type 4
- Defined Area Height (mm) 300
- Effective Aperture Angle Type 4 Per IEC 61496-2
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSE30-300Q8 on Powermatic Associates is $596.00. Order now.
About the product

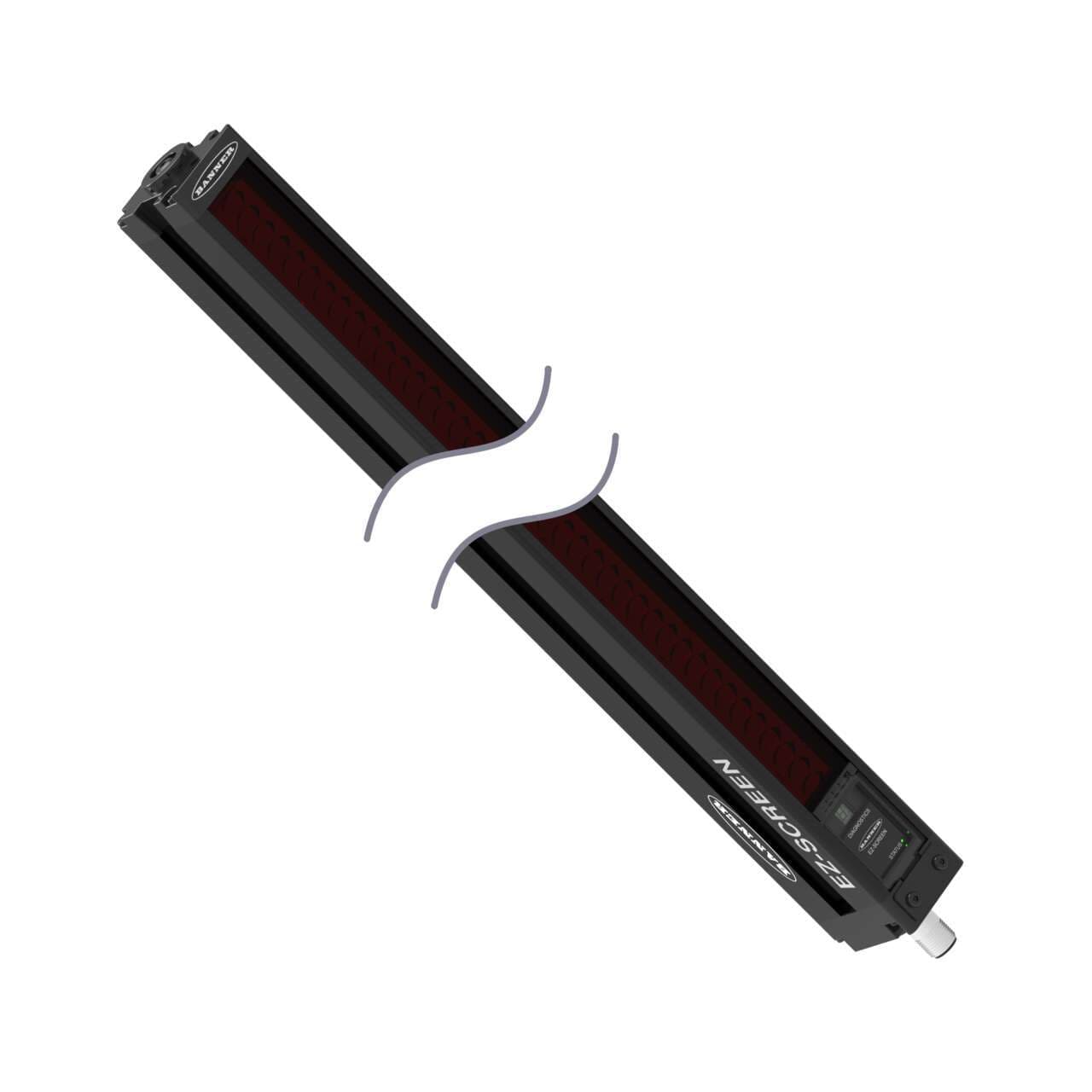

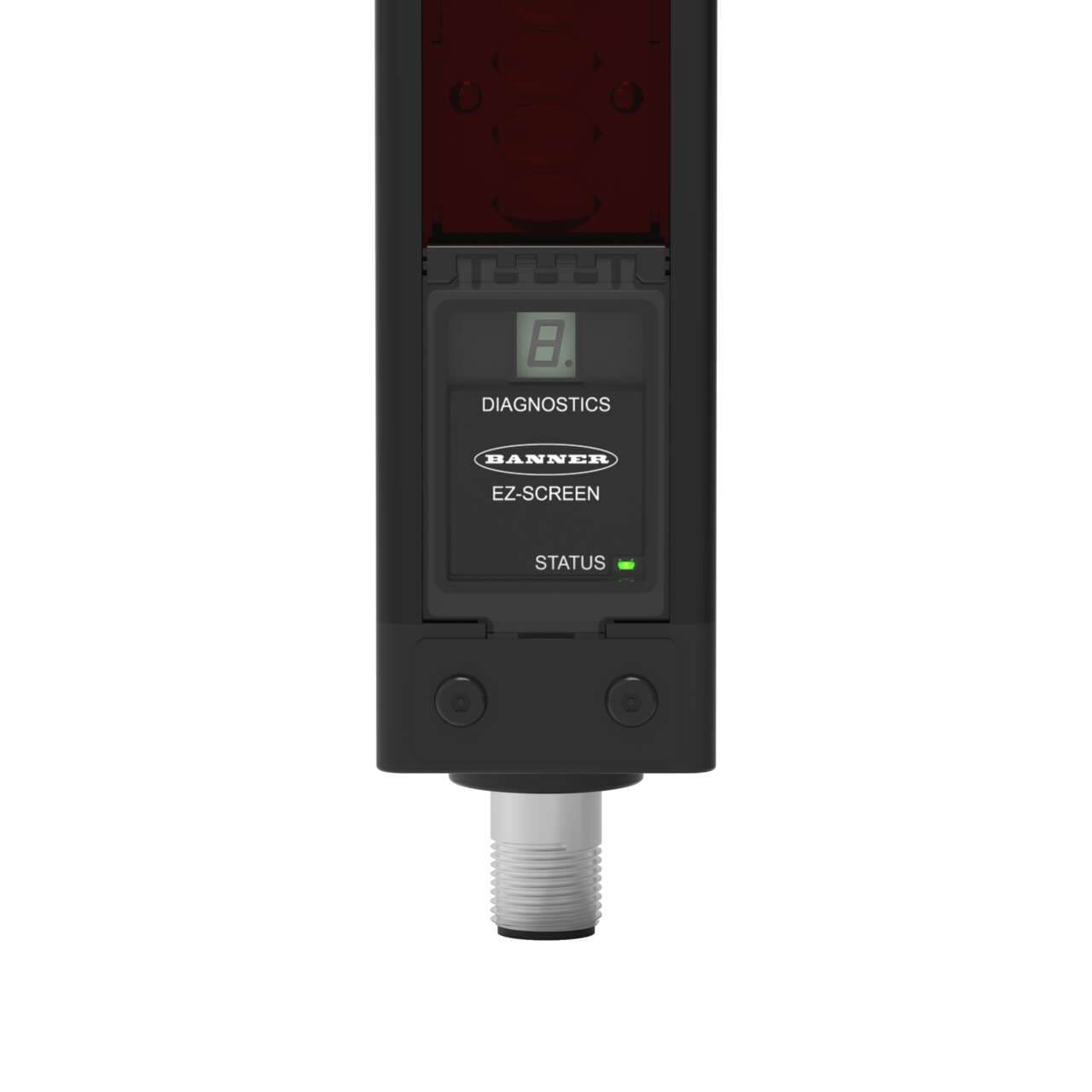

Banner Engineering SLSE30-300Q8 is a safety light curtain designed for hand detection with a protective height of 300mm and features a 30mm beam spacing/pitch. This component, part of the 14/30 series, functions as an emitter alone and is constructed with an aluminium housing, acrylic lens, and die-cast zinc end caps. It is pre-equipped with an 8-pin Euro-style M12 connector for connectivity. The housing is colored yellow, and it operates on a 24Vdc supply voltage. It is designed to function within an ambient air temperature range of 0 to +55°C and offers a degree of protection rated at IP65. The dimensions include a net width of 36mm, a net height of 372mm, and a net depth of 46mm. It features 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), a sensing distance ranging from 10cm to 18m, and utilizes infrared (IR) light with a wavelength of 850 nm. The response time is 11ms / 0.011 s, and it has a resolution of 30mm for hand detection.
