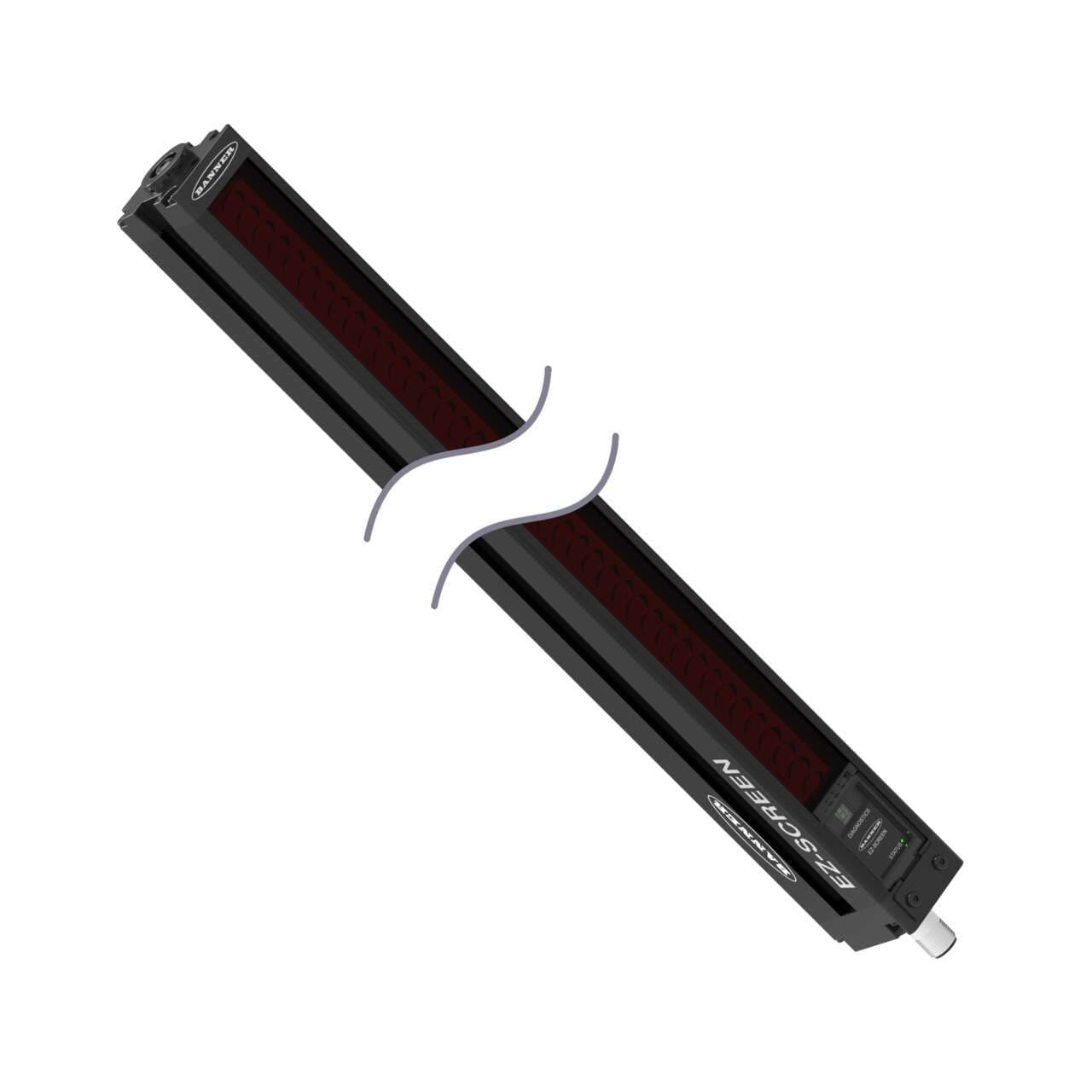

SLSE14-300Q5 Banner Safety Light Curtains

SLSE14-300Q5 on Powermatic Associates
Banner
  • SLSE14-300Q5
  • SLSE14-300Q5

Part#:SLSE14-300Q5

Alt. Part#:71213

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

EZ-SCREEN Emitter; Resolution: 14 mm; Range: 6 m (20 ft); Defined Area: 300 mm (11.8 in); Housing Length: 372 mm (14.6 in); Connection: 5-pin M12 Connector; With Test Input

Product Details

  • Weight
    1133.98 g
  • Country Of Origin
    MX
  • Feature: Integral Muting
    No
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Test Input
    Yes
  • Feature: ESD Safe
    No
  • OSSD Rating
    N/A
  • Fault Output
    No
  • Feature: End-to-End Sensing
    No
  • Trip/Latch Output
    N/A
  • Auxiliary Output
    No
  • Shock
    10g at 16ms (6000 cycles)
  • Supply Current
    100 mA max.
  • Vibration
    10-55 Hz at 0.35 mm
  • Short Protection
    Yes
  • System Type
    Emitter
  • Scan Code
    Selectable
  • Response Time
    15
  • Electrical Safety Class
    III
  • SIL Rating
    SIL3; CL3
  • Reduced Resolution
    No
  • PL Rating
    Ple
  • Recovery Time
    33-220 / 109-800
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Operating Voltage
    24 V dc +/- 15%
  • Resolution (mm)
    14
  • Operating Distance (m)
    0.1 - 6
  • Housing Finish
    Yellow Polyester
  • Number of Pins (Receiver/Emitter)
    5
  • IP Rating
    IP65
  • Fixed Blanking
    No
  • Safety Level
    Type 4
  • Connector Type
    M12
  • Dimensions WxD (mm)
    36 x 45.2
  • External Monitoring Device
    No
  • Defined Area Height (mm)
    300
  • Primary Housing Material
    Aluminum
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Overall Length (mm)
    372
  • low-profile
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSE14-300Q5 on Powermatic Associates is $811.00. Order now.

About the product

Banner Engineering SLSE14-300Q5 is a safety light curtain designed for protective applications, part of the 14/30 series. This model features an aluminium housing with an acrylic lens and die-cast zinc end caps, ensuring durability. It is specifically an emitter alone, pre-equipped with a 5-pin Euro-style M12 connector for easy integration. The device offers a protective height of 300mm and comes in a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. With an IP65 degree of protection, it is suitable for various industrial environments. The SLSE14-300Q5 has a net width of 36mm and a depth of 46mm, featuring 14mm beam spacing/pitch for finger detection. It includes 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and 1 x digital input (10Vdc-30Vdc) for remote test input. The sensing distance ranges from 10cm to 6m, with a response time of 15ms / 0.015 s. The light emitted is infrared (IR) with a wavelength of 850 nm, ensuring precise detection within the specified resolution of 14mm.

SLSE14-300Q5 Related Documents

112852.pdf
