SLSE14-300P8 Banner Safety Light Curtains
Part#:SLSE14-300P8
Manufacturer:Banner
Category:Safety Light Curtains
Alt. Part#:73857
Product Lifecycle:Active
Get a quick Quote!
EZ-SCREEN Emitter; Resolution: 14 mm; Range: 6 m (20 ft); Defined Area: 300 mm (11.8 in); Housing Length: 372 mm (14.6 in); Connection: 8-pin M12 Pigtail Connector; No test input
About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SLSE14-300P8 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 281.22704 g
- Country Of Origin MX
- Feature: ESD Safe No
- Supply Current 275 mA max.
- Feature: Integral Muting No
- Feature: End-to-End Sensing No
- Short Protection Yes
- Test Input Yes
- OSSD Rating 24 V dc at 0.5 A each
- Housing Material Aluminum; PBT; Acrylic
- Auxiliary Output Yes
- Trip/Latch Output Selectable
- Fault Output Yes
- Vibration 10-55 Hz at 0.35 mm
- System Type Emitter
- Electrical Safety Class III
- Scan Code Selectable
- Shock 10g at 16ms (6000 cycles)
- Response Time 11
- SIL Rating SIL3; CL3
- Reduced Resolution Yes
- PL Rating Ple
- Operating Temperature 0 to +55 deg. C; RH 95%
- Resolution (mm) 14
- Recovery Time 33-220 / 109-800
- Operating Distance (m) 0.1 - 6
- Number of Pins (Receiver/Emitter) 8
- Operating Voltage 24 V dc +/- 15%
- IP Rating IP65
- Housing Finish Yellow Polyester
- Defined Area Height (mm) 300
- External Monitoring Device 1 or 2 Channel
- Dimensions WxD (mm) 36 x 45.2
- Primary Housing Material Aluminum
- Overall Length (mm) 372
- Connector Type M12 Pigtail (Yellow)
- Fixed Blanking Yes
- Safety Level Type 4
- Effective Aperture Angle Type 4 Per IEC 61496-2
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
SLSE14-300P8 Description

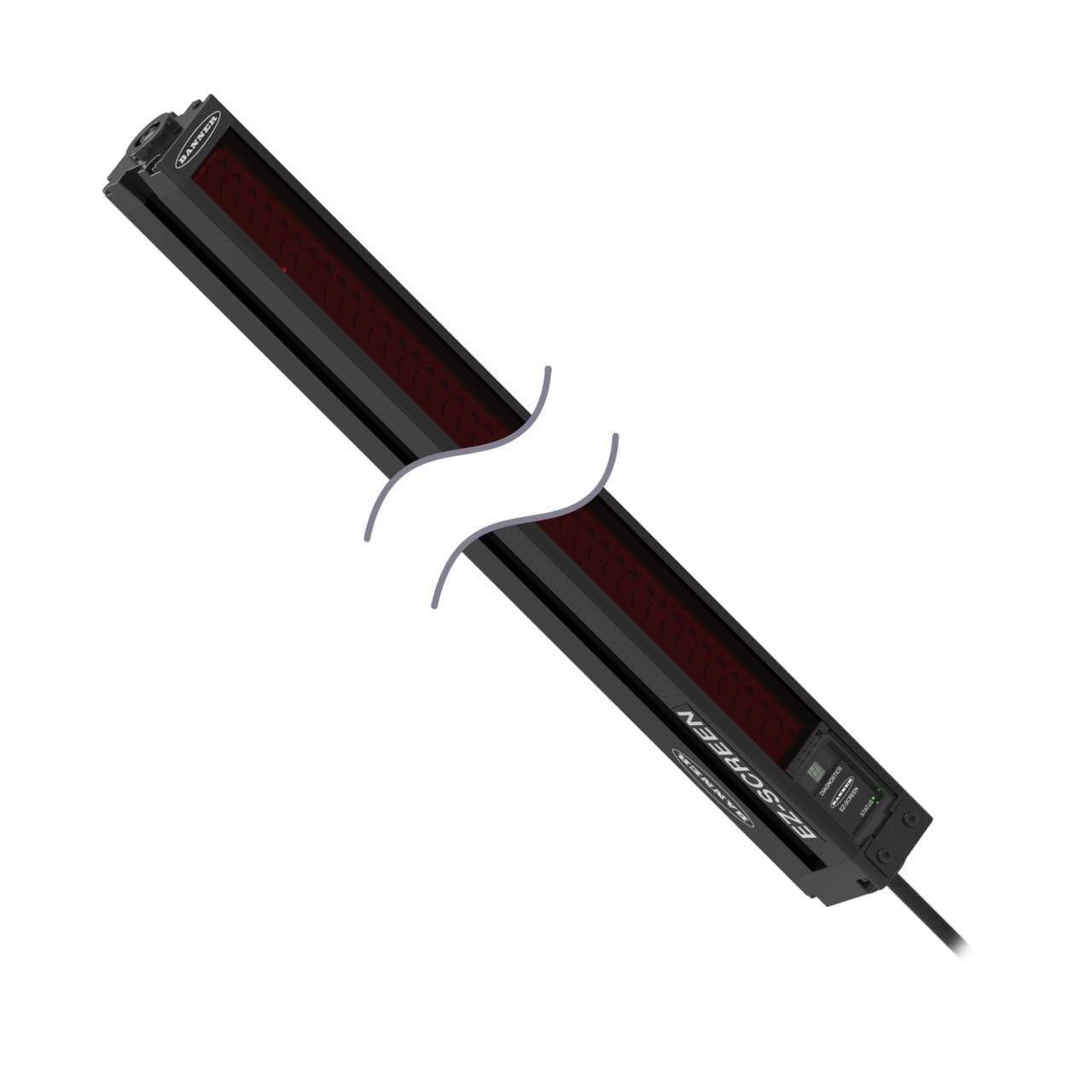

Banner Engineering SLSE14-300P8 is a safety light curtain from the 14/30 series designed for finger detection with a resolution of 14mm. This emitter alone unit features an aluminium housing with an acrylic lens and die-cast zinc end caps. It is pre-wired with a 300mm pigtail that terminates with an 8-pin Euro-style M12 connector. The protective height of the device is 300mm, and it comes in a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. The SLSE14-300P8 offers an IP65 degree of protection, has a net width of 36mm, and a net depth of 46mm. The beam spacing or pitch is 14mm, and it includes 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) for connectivity. Its sensing distance ranges from 10cm to 6m, uses infrared (IR) light with a wavelength of 850 nm, and has a response time of 11ms / 0.011 s.
Related documents SLSE14-300P8 Specs
