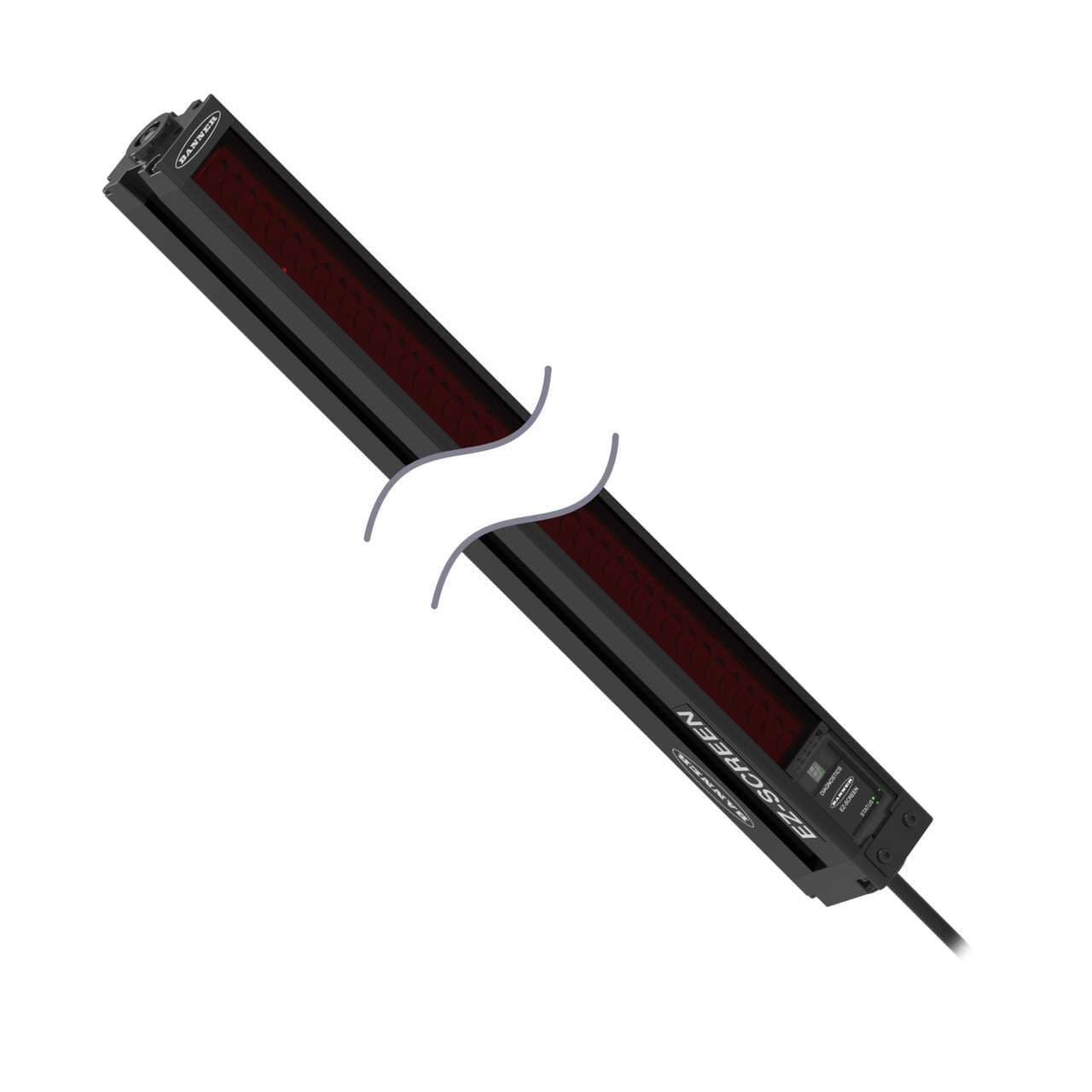

SLSE14-600P8 Banner Safety Light Curtains

SLSE14-600P8 on Powermatic Associates
Banner
  • SLSE14-600P8
  • SLSE14-600P8

Part#:SLSE14-600P8

Alt. Part#:73859

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

EZ-SCREEN Emitter; Resolution: 14 mm; Range: 6 m (20 ft); Defined Area: 600 mm (23.6 in); Housing Length: 571 mm (26.4 in); Connection: 8-pin M12 Pigtail Connector; No test input

Product Details

  • Weight
    290.29888 g
  • Country Of Origin
    MX
  • Test Input
    Yes
  • Feature: ESD Safe
    No
  • Feature: End-to-End Sensing
    No
  • Feature: Integral Muting
    No
  • OSSD Rating
    24 V dc at 0.5 A each
  • Trip/Latch Output
    Selectable
  • Supply Current
    275 mA max.
  • Housing Material
    Aluminum; PBT; Acrylic
  • Fault Output
    Yes
  • Auxiliary Output
    Yes
  • Vibration
    10-55 Hz at 0.35 mm
  • Electrical Safety Class
    III
  • System Type
    Emitter
  • Shock
    10g at 16ms (6000 cycles)
  • Short Protection
    Yes
  • SIL Rating
    SIL3; CL3
  • Scan Code
    Selectable
  • Response Time
    15
  • Reduced Resolution
    Yes
  • Recovery Time
    33-220 / 109-800
  • Number of Pins (Receiver/Emitter)
    8
  • PL Rating
    Ple
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Resolution (mm)
    14
  • Operating Voltage
    24 V dc +/- 15%
  • Operating Distance (m)
    0.1 - 6
  • IP Rating
    IP65
  • Housing Finish
    Yellow Polyester
  • Defined Area Height (mm)
    600
  • Connector Type
    M12 Pigtail (Yellow)
  • Dimensions WxD (mm)
    36 x 45.2
  • Overall Length (mm)
    671
  • External Monitoring Device
    1 or 2 Channel
  • Fixed Blanking
    Yes
  • Primary Housing Material
    Aluminum
  • Safety Level
    Type 4
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSE14-600P8 on Powermatic Associates is $1,248.00. Order now.

About the product

Banner Engineering SLSE14-600P8 is a safety light curtain designed for finger detection with a resolution of 14mm, part of the 14/30 series. This unit, serving as the emitter alone, is encased in an aluminium housing with an acrylic lens and die-cast zinc end caps. It features a pre-wired 300mm pigtail terminated with an 8-pin Euro-style M12 connector. The protective height of the device is 600mm, and it has a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. The SLSE14-600P8 offers an IP65 degree of protection, with net dimensions of 36mm in width and 46mm in depth. The light curtain has a 14mm beam spacing/pitch and provides two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs). It is capable of sensing distances from 10cm up to 6m and emits an infrared (IR) light with a wavelength of 850 nm. The response time of the device is 23ms / 0.023 s.
