SLO30VB6Y Banner Retroreflective Sensors

SLO30VB6Y on Powermatic Associates
Banner

Part#:SLO30VB6Y

Alt. Part#:59771

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

SLO30 Series: Slot Sensor w/o Sensitivity Adjustme; Slot width: 30 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 2 m (6.5 ft) Cable

Product Details

  • Weight
    171.2763392 g
  • Country Of Origin
    CN
  • Indicator
    LEDs
  • Lens Material
    Acrylic
  • Primary Housing Material
    Thermoplastic
  • Connection
    Cable
  • NEMA Rating
    NEMA 6
  • Minimum Object Detection [mm]
    2
  • IP Rating
    IP67
  • Max Op. Relative Humidity (%)
    90% @ 50°C
  • Min Op. Temperature (°C)
    -40
  • Max Op. Temperature (°C)
    70
  • Operation
    Light/Dark Operate
  • Special Feature: Remote Teach
    No
  • Adjustments
    N/A
  • Repeatability (µs)
    75
  • Power Supply/Supply Voltage
    10-30 V dc
  • Output response time (ms)
    0.3
  • Number of Pins
    5
  • Slot Overall Depth (mm)
    72
  • Outputs
    Bipolar (NPN & PNP)
  • Minimum Object Detection (mm)
    2
  • Slot Depth/Array Length (mm)
    45
  • Max Sensing Range (mm)
    30
  • Quick Disconnect Type
    No QD
  • Sensing Mode (Detailed)
    Emitter/Receiver Pair
  • Housing Style
    Slot
  • Cable Length (m)
    2
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLO30VB6Y on Powermatic Associates is $129.00. Order now.

About the product

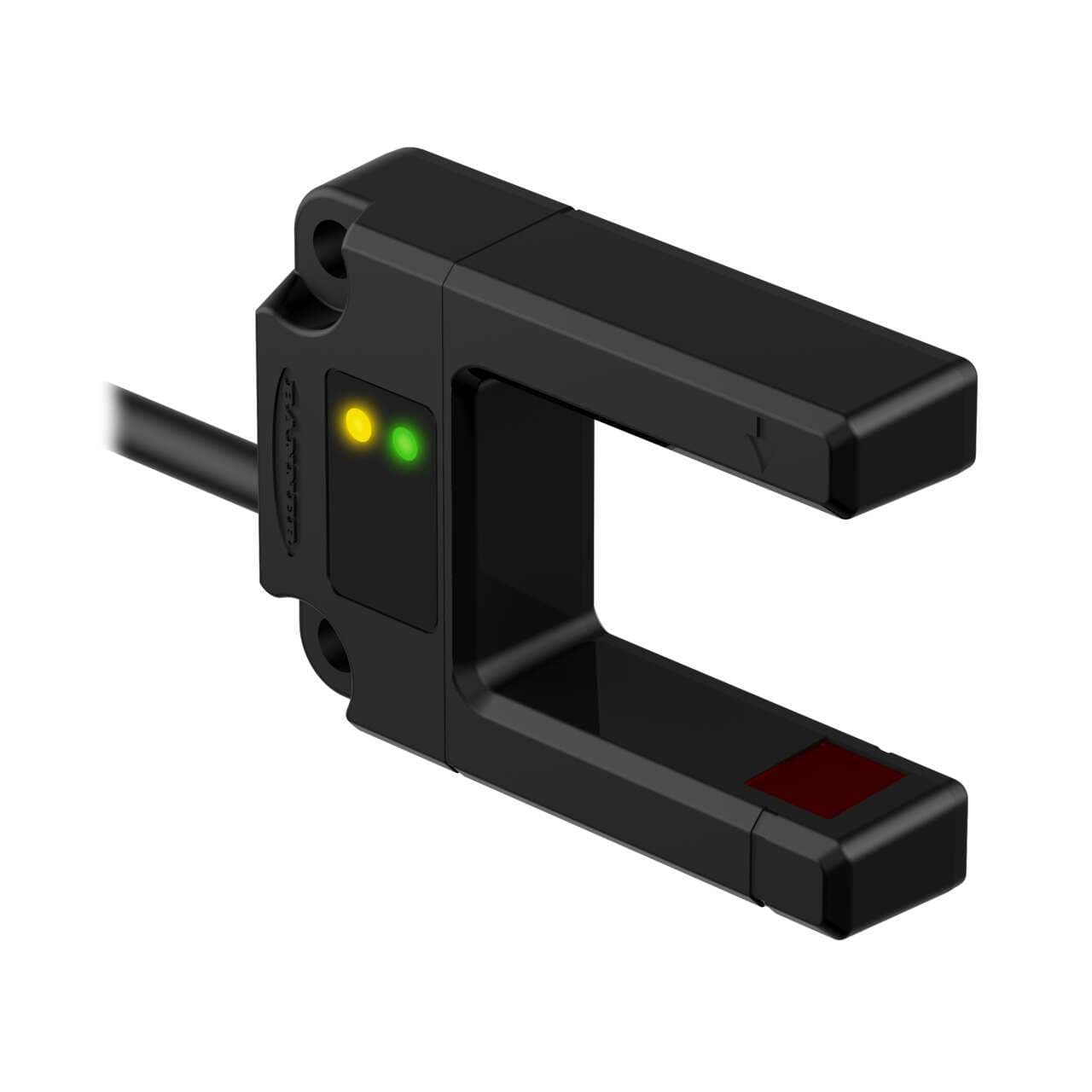

Banner Engineering SLO30VB6Y is a photo-electric slot / optical fork sensor within the SLO series. This sensor features a thermoplastic housing with an acrylic lens and is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads. It operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc / 24Vdc. Designed for operation in ambient air temperatures ranging from -40 to +70°C, it offers a degree of protection rated at IP67 NEMA 6. The sensor has a slot (U-shaped) shape with a passageway width of 30.2 mm and an overall width of 52 mm, a height of 72 mm, and a depth of 19 mm. It includes 1 x digital output (PNP/NPN transistor) and has a sensing distance of 30mm. The light source is infrared (IR) with a wavelength of 890 nm, and it features a rapid response time of 0.3ms / 0.0003 s. The operating modes available are Light-ON and Dark-ON.
