SLO30VB6 W-30 Banner Sensors & Transducers

Name: SLO30VB6 W-30
Brand: Banner

Part#:SLO30VB6 W-30

Manufacturer:Banner

Category:Sensors & Transducers

Product Lifecycle:Active

Product description

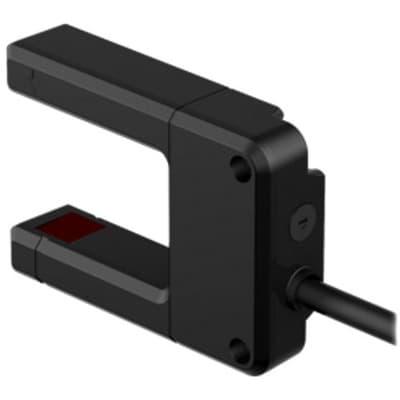

Photo-electric slot / optical fork sensor - Banner Engineering (SLO series) - Part #59770 - Sensing range 30mm - Infrared (IR) light (890nm) - slot width (passageway) 30.2mm - 1 x digital output (PNP/NPN transistor) (Light-ON or Dark-ON operation) - Suppl

Product Details

Main function
Sensor (Photo-electric)
Functions
Photo-electric slot / optical fork sensor green LED (power ON) yellow LED (output state)
Primary brand
Banner Engineering
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)
Shape
Slot
Degree of protection
IP67 NEMA 6
Order code / Manufacturer SKU
59770
Sub-range name
SLO series
Sensing distance
30mm
Connection type
Pre-wired with 30ft / 9m cable terminated with bare end flying leads
Material
thermoplastic housing Acrylic lns.
Ambient air temperature for operation
-40...+70 °C
Wavelength
890 nm
Response time
1ms / 0.001 s
Equivalent to
SLO30VB6W30
Net Depth (mm)
18.8 mm
Light Color
Infrared (IR)
Operating mode
Light-ON Dark-ON
Compliant with standard(s)
cULus Listed CE
Net Width (mm)
(passageway) 30.2 mm52 mm

Digital outputs

1 x digital output (PNP/NPN transistor)

Net Height (mm)

72 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SLO30VB6 W-30 Related Documents

Banner Engineering - SLO series - Datasheet.pdf
