SLO30VB6YQPMA13DO Banner Retroreflective Sensors

SLO30VB6YQPMA13DO on Powermatic Associates
Banner

Part#:SLO30VB6YQPMA13DO

Alt. Part#:74197

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

SLO30 VB6YQPMA13DO 700 MA 4-PIN 6 in PUR MALE M12

Product Details

  • Weight
    81.64656 g
  • Country Of Origin
    CN

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLO30VB6YQPMA13DO on Powermatic Associates is $154.00. Order now.

About the product

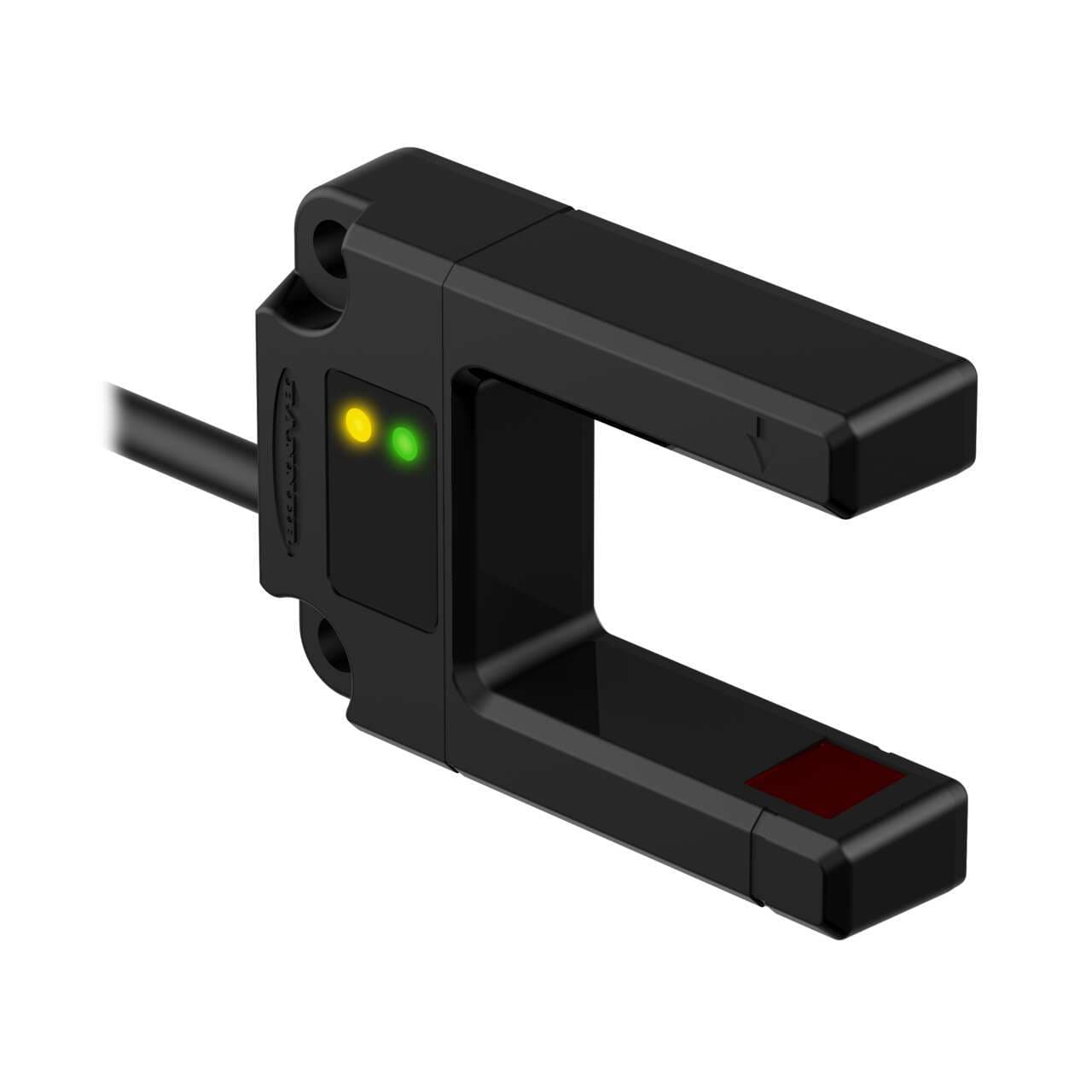

Banner Engineering SLO30VB6YQPMA13DO is a photo-electric slot / optical fork sensor from the SLO series, designed with a thermoplastic housing and an acrylic lens. It features a polyurethane (PUR) cable sheath and is pre-wired with a 6" / 150mm PUR cable that terminates with a 4-pin Euro-style M12 connector. This sensor operates within a supply voltage range of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and can function in ambient air temperatures ranging from -40 to +70°C. It offers a degree of protection rated at IP67 NEMA 6, making it suitable for various environments. The sensor has a slot (U-shaped) shape with a passageway width of 30.2 mm and an overall width of 52 mm, a height of 72 mm, and a depth of 19 mm. It provides one digital output (PNP/NPN transistor), has a sensing distance of 30mm, and uses infrared (IR) light with a wavelength of 890 nm. The response time of the sensor is 0.3ms / 0.0003 s, and it operates in a Dark-ON mode.

SLO30VB6YQPMA13DO Related Documents

60073.pdf
