SLO30VB6YQ Banner Retroreflective Sensors

SLO30VB6YQ on Powermatic Associates
Banner

Part#:SLO30VB6YQ

Alt. Part#:59772

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

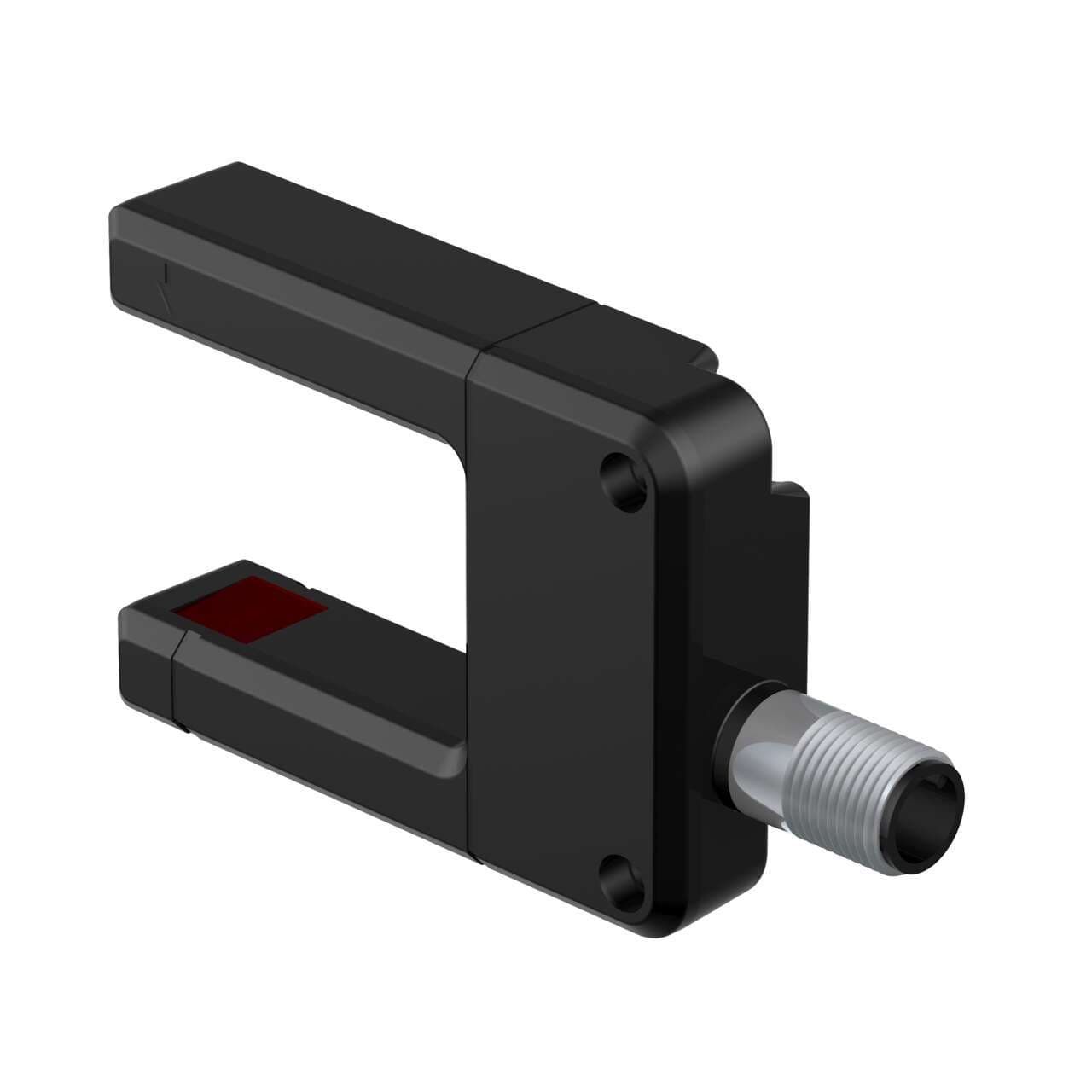

SLO30 Series: Slot Sensor w/o Sensitivity Adjustme; Slot width: 30 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; M12 Integral QD

Product Details

  • Weight
    72.57472 g
  • Country Of Origin
    CN
  • Outputs
    Bipolar (NPN & PNP)
  • Max Op. Relative Humidity (%)
    90% @ 50°C
  • Operation
    Light/Dark Operate
  • Indicator
    LEDs
  • Max Op. Temperature (°C)
    70
  • Special Feature: Remote Teach
    No
  • NEMA Rating
    NEMA 6
  • Minimum Object Detection [mm]
    2
  • IP Rating
    IP67
  • Adjustments
    N/A
  • Min Op. Temperature (°C)
    -40
  • Repeatability (µs)
    75
  • Lens Material
    Acrylic
  • Power Supply/Supply Voltage
    10-30 V dc
  • Slot Overall Depth (mm)
    72
  • Output response time (ms)
    0.3
  • Number of Pins
    5
  • Slot Depth/Array Length (mm)
    45
  • Housing Style
    Slot
  • Minimum Object Detection (mm)
    2
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Integral QD
  • Power
    DC
  • Max Sensing Range (mm)
    30
  • Primary Housing Material
    Thermoplastic
  • Sensing Mode (Detailed)
    Emitter/Receiver Pair
  • Primary brand
    Banner Engineering
  • Light Color
    Infrared (IR)
  • Digital outputs
    1 x digital output (PNP/NPN transistor)
  • Ambient air temperature for operation
    -40...+70 °C
  • Net Width (mm)
    (passageway) 30.2 mm52 mm
  • Sensing distance
    30mm
  • Operating mode
    Light-ON Dark-ON
  • Degree of protection
    IP67 NEMA 6
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Wavelength
    890 nm
  • Response time
    0.3ms / 0.0003 s
  • Sub-range name
    SLO series
  • Connection type
    Pre-equipped with 5-pin Euro-style M12 connector
  • Material
    thermoplastic housing Acrylic lns.
  • Main function
    Sensor (Photo-electric)
  • Functions
    Photo-electric slot / optical fork sensor green LED (power ON) yellow LED (output state)
  • Shape
    Slot
  • Order code / Manufacturer SKU
    59772
  • Compliant with standard(s)
    cULus Listed CE
  • Net Depth (mm)
    18.8 mm
  • Net Height (mm)
    72 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLO30VB6YQ on Powermatic Associates is $129.00. Order now.

About the product

Banner Engineering SLO30VB6YQ is a photo-electric slot / optical fork sensor within the SLO series, featuring a thermoplastic housing and an acrylic lens. It is pre-equipped with a 5-pin Euro-style M12 connector for connectivity. This sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It is designed to function within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP67 NEMA 6. The sensor has a U-shaped (slot) form factor, with a passageway width of 30.2 mm and an overall width of 52 mm, a height of 72 mm, and a depth of 19 mm. It features one digital output (PNP/NPN transistor), a sensing distance of 30mm, and utilizes infrared (IR) light with a wavelength of 890 nm. The response time of the sensor is 0.3ms / 0.0003 s, and it supports both Light-ON and Dark-ON operating modes.

SLO30VB6YQ Related Documents
