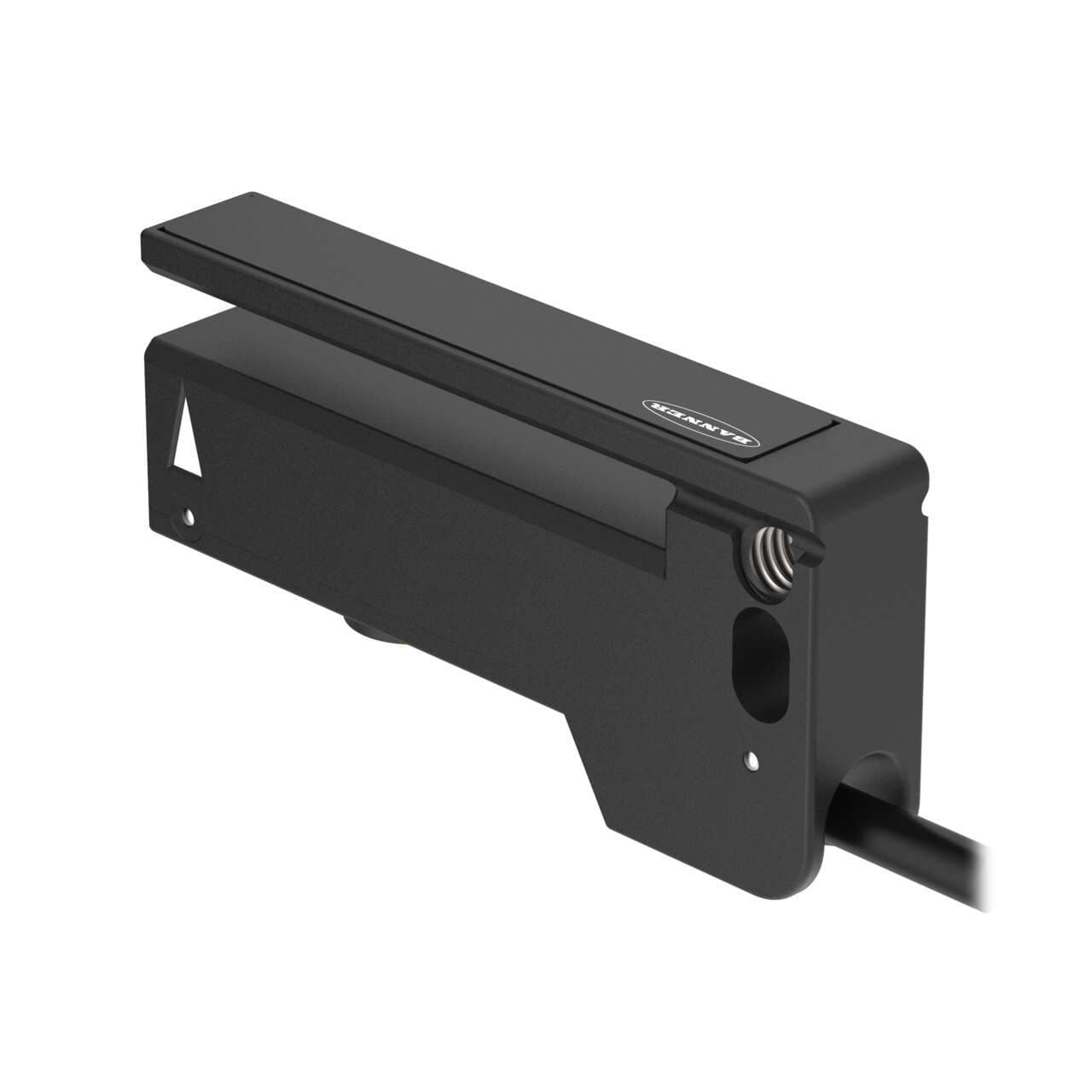

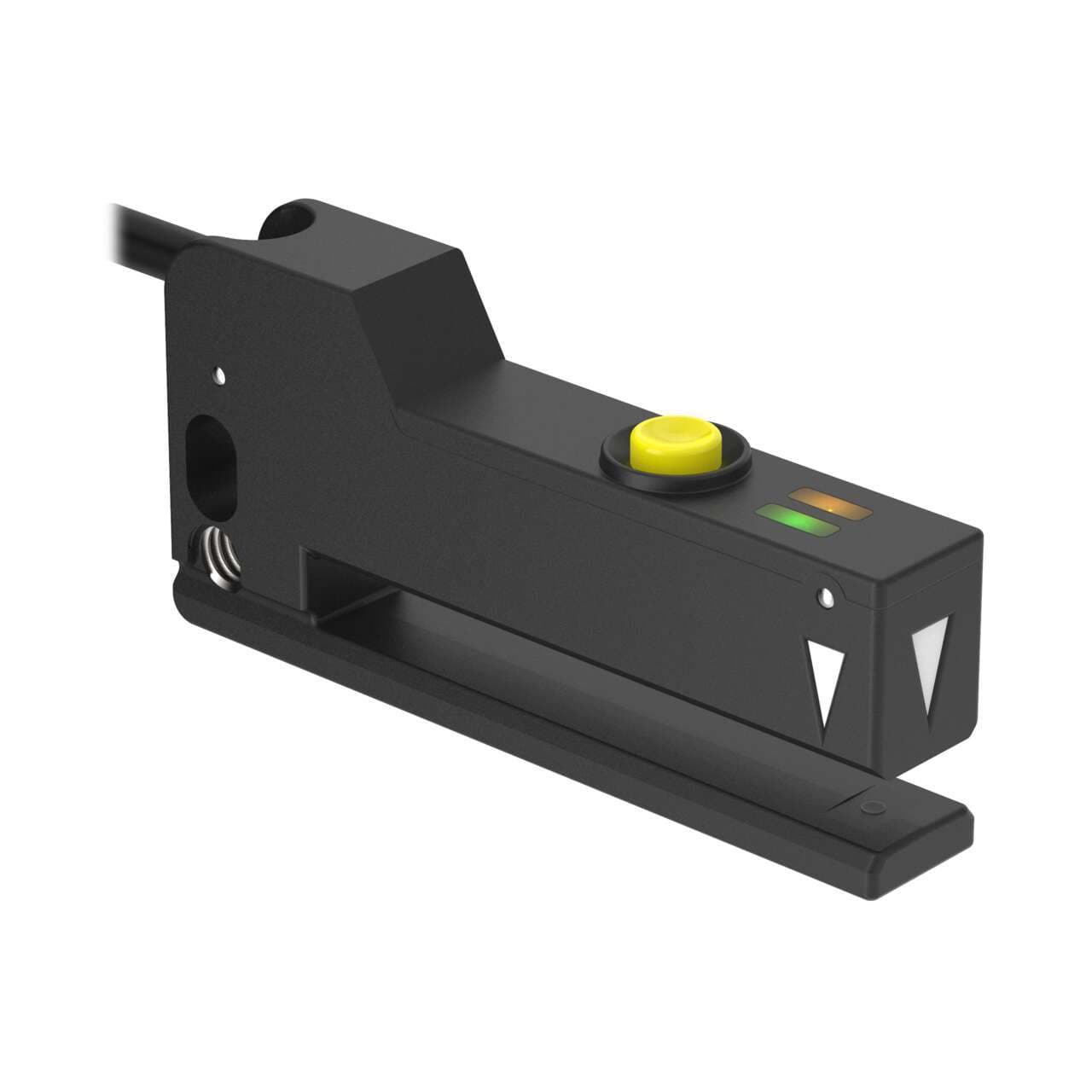

SLE5-PIR-2M Banner Retroreflective Sensors

SLE5-PIR-2M on Powermatic Associates
Banner
  • SLE5-PIR-2M
  • SLE5-PIR-2M

Part#:SLE5-PIR-2M

Alt. Part#:806611

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

SLE5 Series: Label Sensor; Slot width: 5 mm; Input: 10-30 V dc; Output: PNP; 2 m (6.5 ft) Cable

Product Details

  • Weight
    104.32616 g
  • Country Of Origin
    HU
  • Max Op. Temperature (°C)
    55
  • NEMA Rating
    N/A
  • Min Op. Temperature (°C)
    -20
  • Number of Beams
    1
  • IP Rating
    IP65
  • Indicator
    LEDs
  • Operation
    Light/Dark Operate
  • Number of Pins
    5
  • Power Supply/Supply Voltage
    10-30 V dc
  • Special Feature: Remote Teach
    Yes
  • Repeatability (µs)
    N/A
  • Adjustments
    Teach Button
  • Outputs
    PNP
  • Slot Overall Depth (mm)
    5
  • Output response time (ms)
    0.04
  • Connection
    Cable
  • Max Sensing Range (mm)
    5
  • Housing Style
    Label
  • Quick Disconnect Type
    No QD
  • Slot Depth/Array Length (mm)
    50
  • Primary Housing Material
    Zinc Alloy Die-Cast
  • Cable Length (m)
    2
  • Sensing Mode (Detailed)
    Emitter/Receiver Pair
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLE5-PIR-2M on Powermatic Associates is $156.00. Order now.

About the product

Banner Engineering SLE5-PIR-2M is a programmable photo-electric slot/optical fork sensor designed for single-layer/multi-layer detection. This sensor features a green LED to indicate power ON and an amber LED to display the output state. It operates in TEACH mode for easy setup. The sensor is housed in aluminium with thermoplastic lenses and comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads. It requires a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc being nominal. The SLE5-PIR-2M can operate in ambient air temperatures ranging from -20 to +70°C and is rated at IP65 for protection against dust and water ingress. Its slot shape has a passageway width of 50 mm and a height of 40.4 mm, with a net depth of 64 mm. The sensor offers one digital output (PNP transistor) and operates with infrared light at a wavelength of 850 nm. Its response time is remarkably fast at 0.04ms / 0.00004 s, and it supports both Light-ON and Dark-ON operating modes.
