Powermatic Associates Logo

SLE5-PIR-Q7 Banner Retroreflective Sensors

SLE5-PIR-Q7 on Powermatic Associates
Banner
  • SLE5-PIR-Q7
  • SLE5-PIR-Q7

Part#:SLE5-PIR-Q7

Alt. Part#:806610

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

SLE5 Series: Label Sensor; Slot width: 5 mm; Input: 10-30 V dc; Output: PNP; 4-pin M8 Integral QD

Product Details

  • Weight
    58.96696 g
  • Country Of Origin
    HU
  • Min Op. Temperature (°C)
    -20
  • NEMA Rating
    N/A
  • Max Op. Temperature (°C)
    55
  • IP Rating
    IP65
  • Number of Beams
    1
  • Indicator
    LEDs
  • Operation
    Light/Dark Operate
  • Special Feature: Remote Teach
    Yes
  • Adjustments
    Teach Button
  • Repeatability (µs)
    N/A
  • Power Supply/Supply Voltage
    10-30 V dc
  • Output response time (ms)
    0.04
  • Number of Pins
    4
  • Slot Overall Depth (mm)
    5
  • Connection
    Integral QD
  • Primary Housing Material
    Zinc Alloy Die-Cast
  • Outputs
    PNP
  • Quick Disconnect Type
    M8 (Pico)
  • Max Sensing Range (mm)
    5
  • Slot Depth/Array Length (mm)
    50
  • Sensing Mode (Detailed)
    Emitter/Receiver Pair
  • Housing Style
    Label
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLE5-PIR-Q7 on Powermatic Associates is $156.00. Order now.

About the product

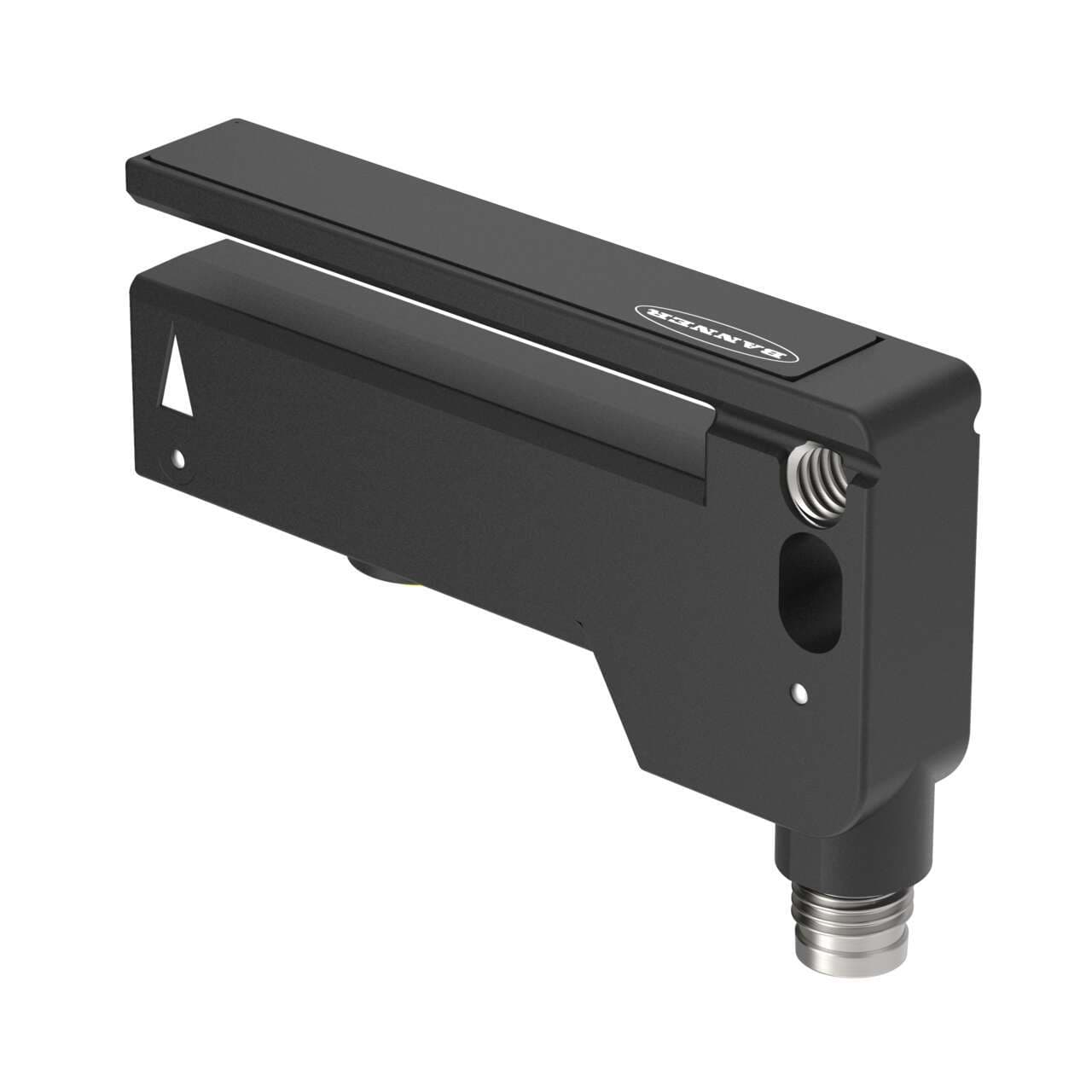

Banner Engineering SLE5-PIR-Q7 is a programmable photo-electric slot/optical fork sensor designed for single-layer/multi-layer detection. This sensor features a green LED to indicate power ON and an amber LED to display the output state, along with a TEACH mode for easy programming. It is housed in aluminium with thermoplastic lenses and comes pre-equipped with a 4-pin Pico-style M8 connector for connectivity. The SLE5-PIR-Q7 operates on a supply voltage of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc, and can function within an ambient air temperature range of -20 to +70°C. It offers a degree of protection rated at IP65, making it suitable for various environments. The sensor's slot shape has a passageway width of 50 mm and a height of 40.4 mm, with a net depth of 64 mm. It provides one digital output via a PNP transistor and operates with infrared light at a wavelength of 850 nm. The response time of the sensor is 0.04ms, and it supports both Light-ON and Dark-ON operating modes.

SLE5-PIR-Q7 Related Documents
