S30AW3FF400 W/30 Banner Proximity Sensors

S30AW3FF400 W/30 on Powermatic Associates
Banner

Part#:S30AW3FF400 W/30

Manufacturer:Banner

Alt. Part#:33889

Product Lifecycle:Active

Get a quick Quote!

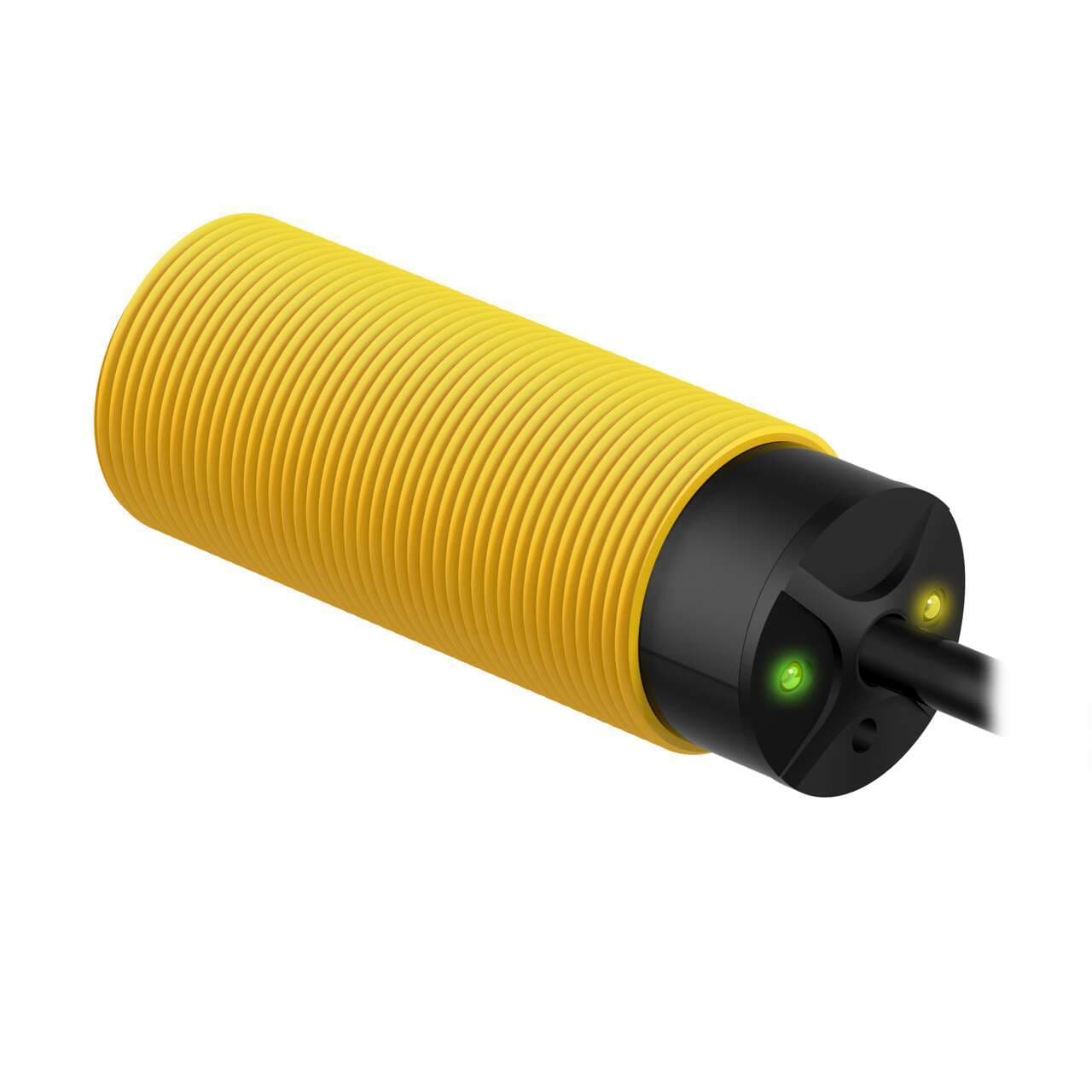

EZ-BEAM S30 Series: Fixed Field; Range: 400 mm; Input: 20-250 V ac; Output: SPST Solid-state Light Operate; 9 m (30 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the S30AW3FF400 W/30 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    656.801216 g
  • Country Of Origin
    US
  • Feature: Ecolab Certified
    Yes
  • Feature: Encapsulated
    Yes
  • Indicator
    LEDs
  • Feature: Audible
    No
  • Opposed Mode Emitter/Receiver
    N/A
  • Adjustments
    N/A
  • Barrel Diameter (mm)
    30
  • Lens Material
    Acrylic
  • Number of Pins
    3
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Special Feature: Water Detection
    No
  • IP Rating
    IP67
  • Delay at Power-up (ms)
    100
  • NEMA Rating
    NEMA 6P
  • Repeatability (µs)
    4000
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    16
  • Max Op. Temp. (°C)
    70
  • Quick Disconnect Type
    No QD
  • Operation
    Light Operate
  • Min Op. Temp. (°C)
    -40
  • Connection
    Cable
  • Outputs
    Solid-State AC Switch
  • Power Supply/Supply Voltage
    20-250 V ac
  • Special Feature: Remote Teach
    No
  • Input/Output
    Solid-State AC Switch
  • Max Sensing Distance (mm)
    400
  • Primary Housing Material
    Thermoplastic
  • Sensing Mode (Detailed)
    Background Suppression (Fixed)
  • Sensing Beam
    Infrared LED
  • Housing Style
    Barrel
  • Power
    AC
  • Cable Length (m)
    9
  • Sensing Mode (General)
    Proximity
  • Feature: Chemical Resistant
    No
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Hazardous Area
    No
  • Feature: Timing (Hold/Delay)
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

S30AW3FF400 W/30 Description

Banner Engineering S30AW3FF400 W/30 is a fixed-field photo-electric sensor from the S30 series, designed with a background suppression system. This sensor features a thermoplastic housing and is pre-wired with a 30ft / 9m cable that terminates with bare end flying leads. It operates on a supply voltage range of 20Vac-250Vac, with nominal voltages of 200Vac, 220Vac, and 240Vac. The sensor can function within an ambient air temperature range of -40 to +70°C and is rated with a degree of protection IP67 NEMA 6P, making it suitable for challenging environments. Its M30 cylindrical threaded/barrel shape facilitates easy installation. The S30AW3FF400 W/30 offers a sensing distance of 400mm and utilizes infrared light with a wavelength of 880 nm for detection. It has a response time of 16ms / 0.016 s and includes 1 x digital output (Solid-state AC output) for signaling. The operating mode for this sensor is Light-ON.
