S18UUA-74601 Banner Ultrasonic Sensors

Name: S18UUA-74601
Brand: Banner

Part#:S18UUA-74601

Manufacturer:Banner

Product Lifecycle:Active

Get a quick Quote!

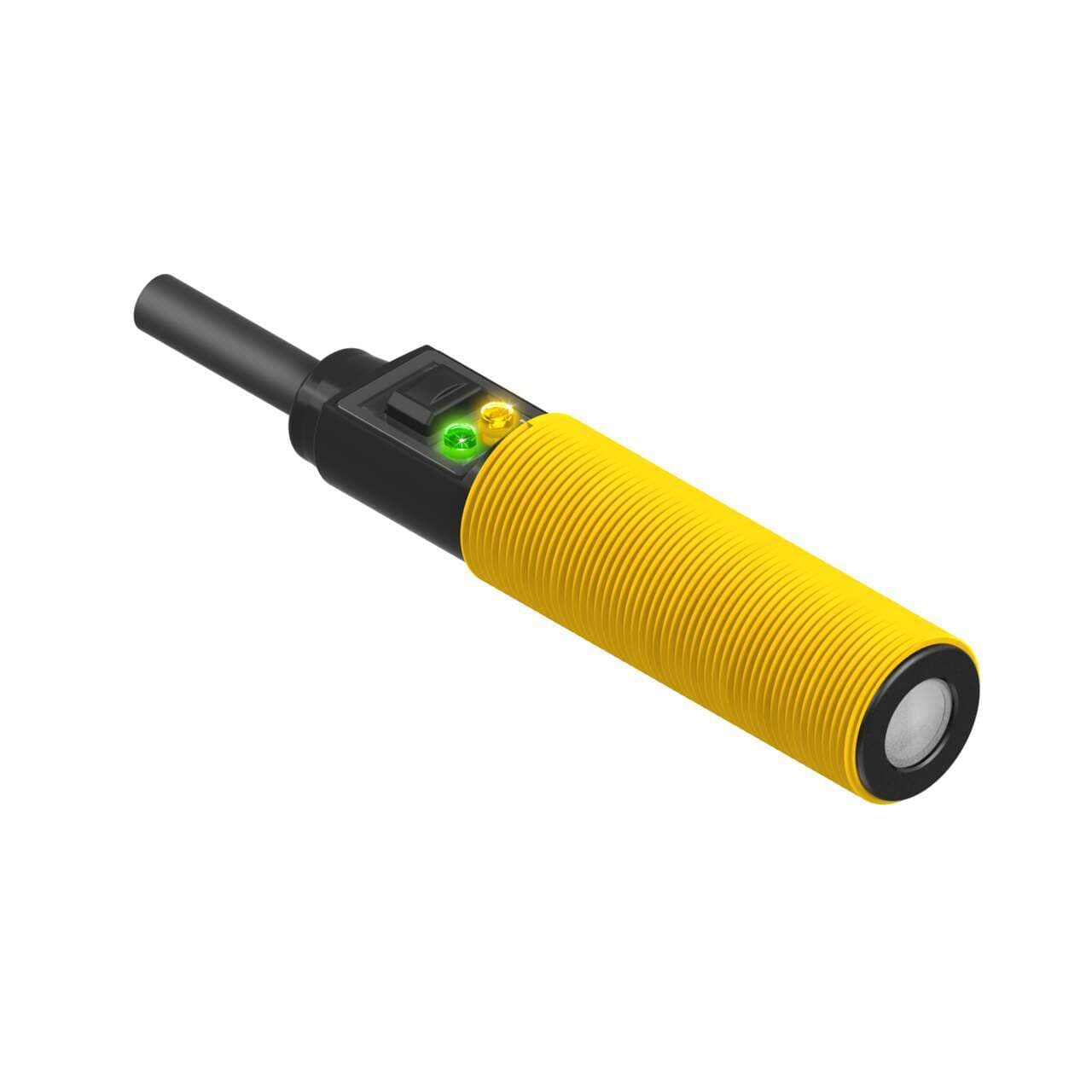

Banner Engineering S18UUA-74601 is an ultrasonic sensor belonging to the S18U straight series, designed with a time-of-flight system and TEACH mode for precise distance measurement. This sensor features an ultrasonic distance sensor/transmitter function, encased in a thermoplastic housing for durability. It is equipped with a pre-wired 9.8ft / 3m cable that terminates with bare end flying leads for easy installation. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc, and can function within an ambient air temperature range of -20 to +60°C. It offers a degree of protection rated at IP67 NEMA 6P, ensuring resistance to dust and water ingress. The S18UUA-74601 has an M18 cylindrical threaded/barrel shape for straightforward mounting, a sensing distance range of 30 to 300mm, and utilizes a 300kHz transmission frequency for reliable sensing. It includes protection functions against short-circuiting and features 1 x analog output (0-10Vdc) for signal transmission, with an M18 thread size for compatibility with standard fittings.

About the manufacturer: Banner is one of the manufacturers that offers Ultrasonic Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the S18UUA-74601 Banner price in the box on the right side or send a quick quote.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

S18UUA-74601 Description

Manufacturer warranty

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us
