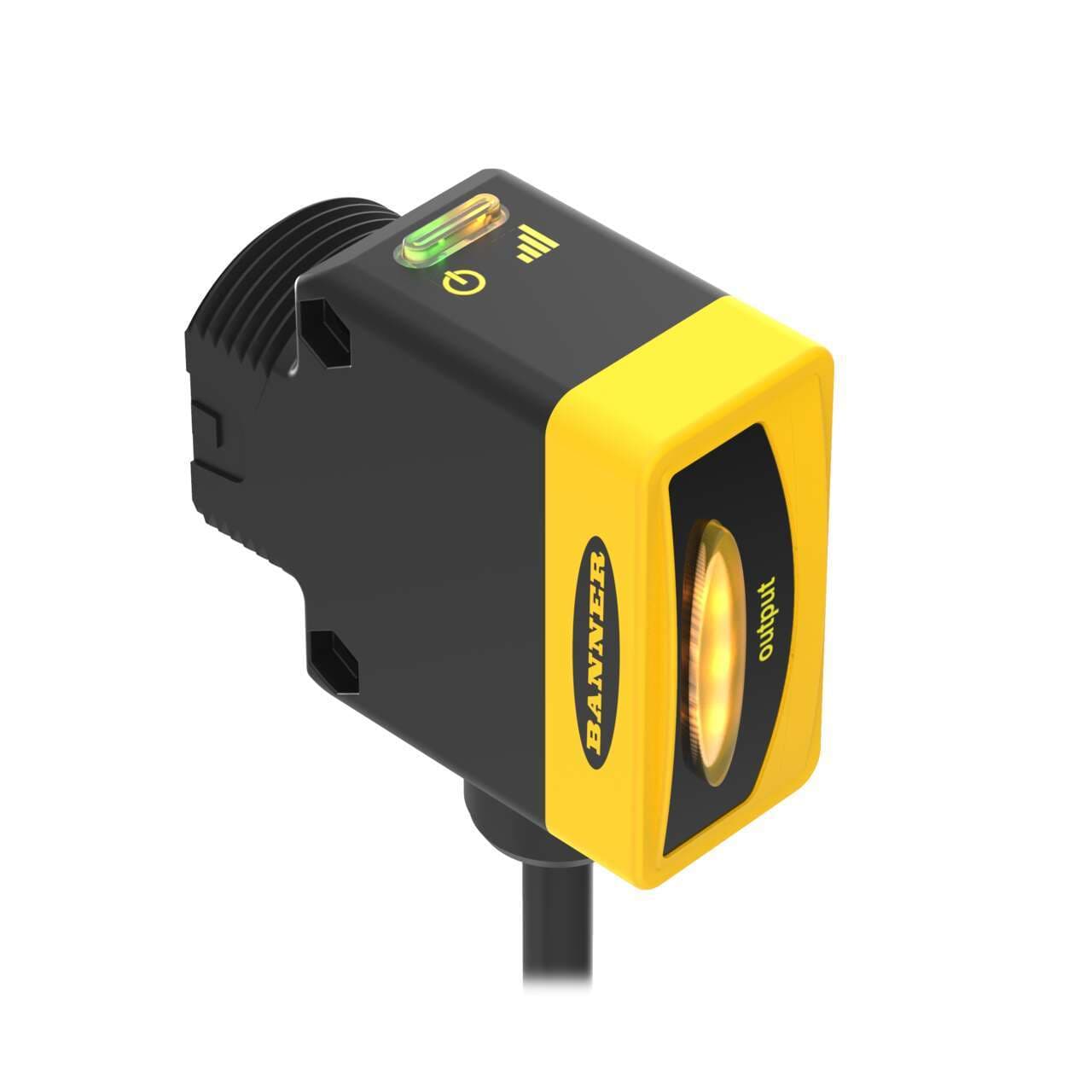

QS30VR3FF200 W/30 Banner Proximity Sensors

QS30VR3FF200 W/30 on Powermatic Associates
Banner

Part#:QS30VR3FF200 W/30

Manufacturer:Banner

Category:Proximity Sensors

Alt. Part#:73199

Product Lifecycle:Active

Get a quick Quote!

WORLD-BEAM QS30 Series: Universal Voltage; Range: 200 mm; Input: 12-250 V dc or 24-250 V ac; Output: SPDT e/m Relay; 9 m (30 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the QS30VR3FF200 W/30 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    657.7084 g
  • Country Of Origin
    US
  • Feature: Encapsulated
    No
  • Opposed Mode Emitter/Receiver
    N/A
  • Repeatability (µs)
    N/A
  • Sensing Beam Wavelength
    680
  • Quick Disconnect Type
    No QD
  • Connection
    Cable
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Hazardous Area
    No
  • Barrel Diameter (mm)
    30
  • NEMA Rating
    NEMA 6
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Indicator
    LEDs
  • Adjustments
    N/A
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • Lens Material
    Acrylic
  • IP Rating
    IP67
  • Number of Pins
    5
  • Delay at Power-up (ms)
    100
  • Special Feature: Water Detection
    No
  • Special Feature: Remote Teach
    No
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    15
  • Operation
    Light/Dark Operate
  • Max Op. Temp. (°C)
    70
  • Min Op. Temp. (°C)
    -20
  • Power Supply/Supply Voltage
    12-250 V dc or 24-250 V ac
  • Outputs
    SPDT e/m Relay
  • Housing Style
    Rectangular w/M30 Mount
  • Max Sensing Distance (mm)
    200
  • Input/Output
    E/M Relay
  • Primary Housing Material
    Thermoplastic
  • Sensing Mode (Detailed)
    Background Suppression (Fixed)
  • Sensing Mode (General)
    Proximity
  • Power
    AC/DC Universal
  • Cable Length (m)
    9
  • Sensing Beam
    Visible Red LED

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

QS30VR3FF200 W/30 Description

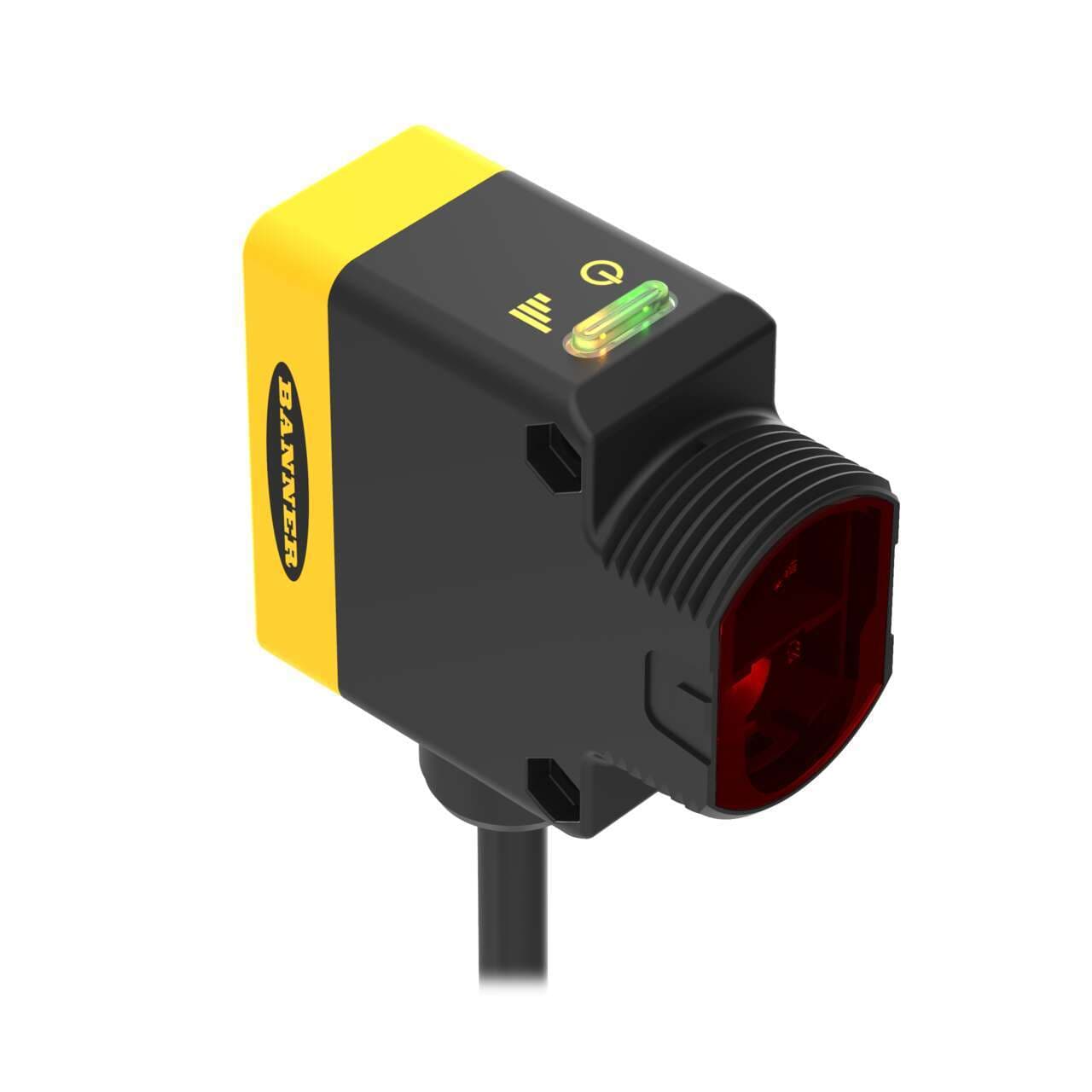

Banner Engineering QS30VR3FF200 W/30 is a fixed-field photo-electric sensor designed for versatile applications, featuring an M30 threaded mount for secure installation. It operates within an ambient air temperature range of -20 to +70°C and incorporates a background suppression system to enhance its sensing capabilities. This sensor is equipped with a pre-wired 30ft / 9m cable that terminates with bare end flying leads, facilitating easy connection. It supports a wide supply voltage range, accepting 24Vac-250Vac (with 200Vac / 220Vac / 240Vac nominal) and 12Vdc-250Vdc (with 24Vdc / 48Vdc / 120Vdc nominal), making it part of the QS30 universal voltage series. The device offers an IP67 NEMA 6 degree of protection, ensuring durability in various environmental conditions. Its thermoplastic housing and acrylic lens are designed to withstand demanding applications. With a sensing distance of 200mm and visible red light for easy alignment, the sensor also features Light-ON and Dark-ON operating modes. It provides a single digital output (SPDT relay contact) and boasts a quick response time of 15ms / 0.015 s.

Related documents QS30VR3FF200 W/30 Specs

QS30VR3FF200 W/30 119168.pdf

Manufacturer warranty

$186.00
