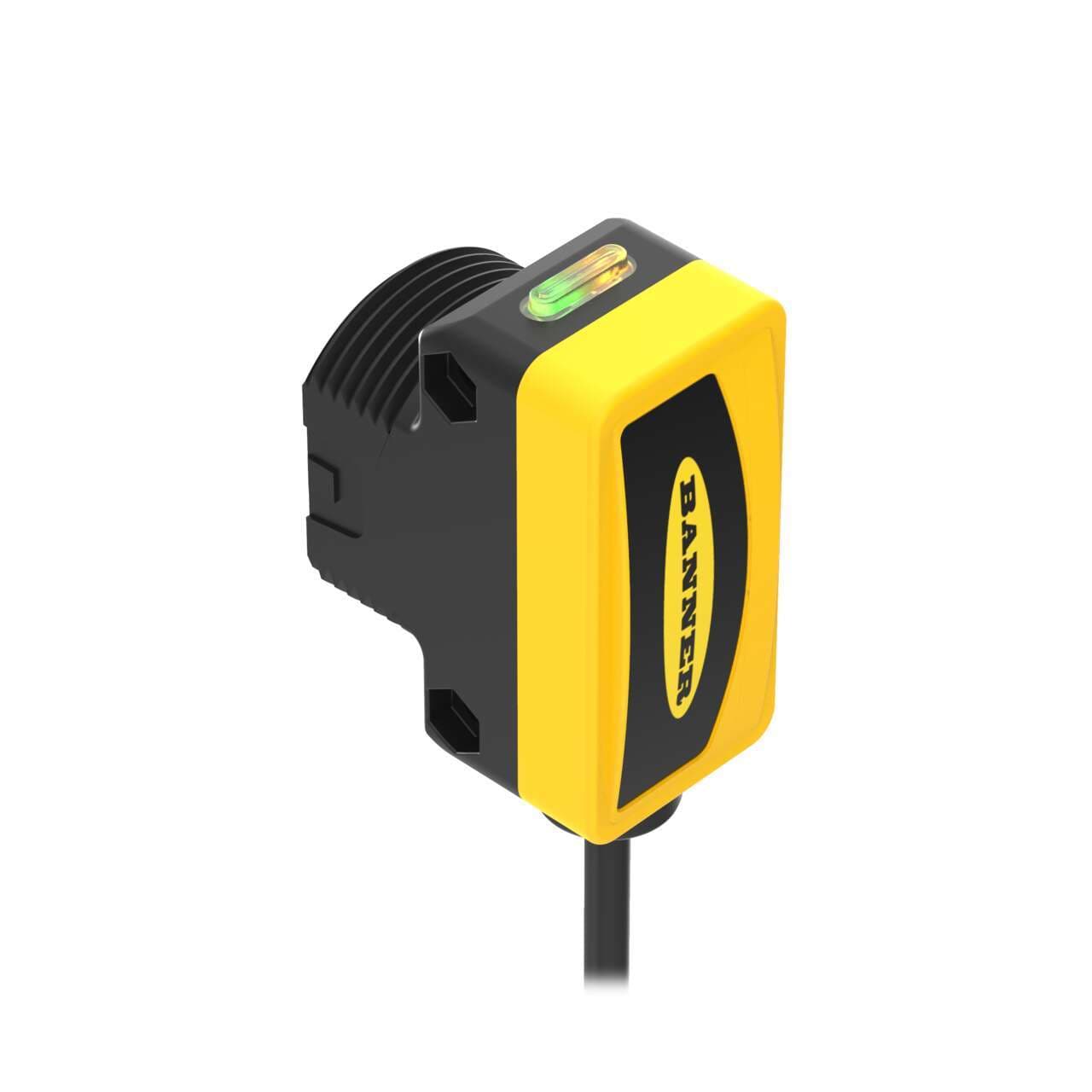

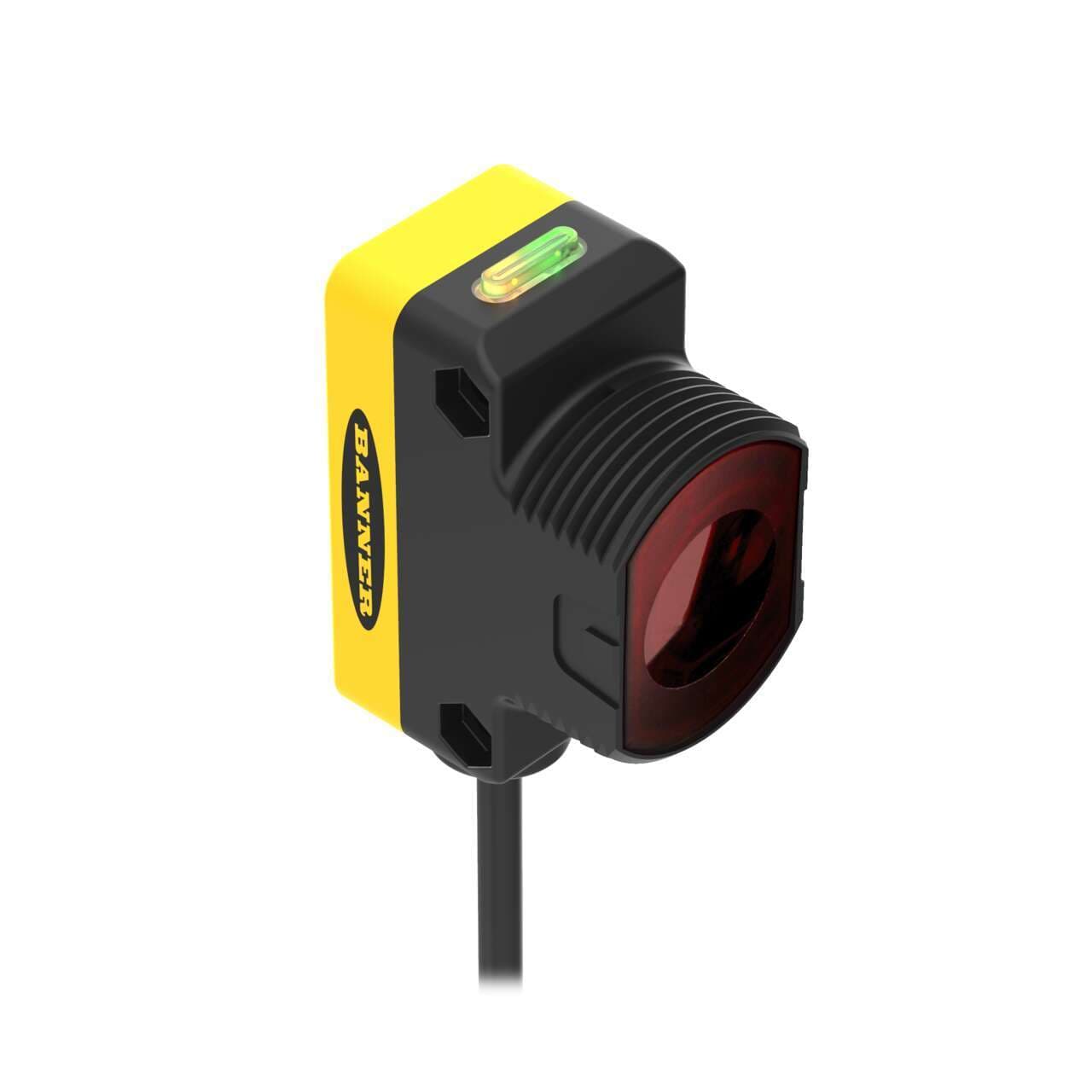

QS30R W/30 Banner Proximity Sensors

QS30R W/30 on Powermatic Associates
Banner
  • QS30R W/30
  • QS30R W/30

Part#:QS30R W/30

Alt. Part#:73202

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

WORLD-BEAM QS30 Series: Receiver; Range: 60 m; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 9 m (30 ft) Cable

Product Details

  • Weight
    254.01152 g
  • Country Of Origin
    US
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Encapsulated
    No
  • Feature: Timing (Hold/Delay)
    No
  • Indicator
    LEDs
  • Opposed Mode Emitter/Receiver
    Receiver
  • Adjustments
    N/A
  • Barrel Diameter (mm)
    30
  • Lens Material
    Acrylic
  • Delay at Power-up (ms)
    100
  • Special Feature: Remote Teach
    No
  • Special Feature: Water Detection
    No
  • Special Feature: Intrinsically Safe
    No
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • NEMA Rating
    NEMA 6
  • IP Rating
    IP67
  • Number of Pins
    5
  • Repeatability (µs)
    N/A
  • Output response time (ms)
    5
  • Min Op. Temp. (°C)
    -20
  • Quick Disconnect Type
    No QD
  • Max Op. Temp. (°C)
    70
  • Operation
    Light/Dark Operate
  • Connection
    Cable
  • Power Supply/Supply Voltage
    10-30 V dc
  • Outputs
    Bipolar (NPN & PNP)
  • Max Sensing Distance (mm)
    60000
  • Sensing Mode (General)
    Opposed
  • Input/Output
    Discrete
  • Primary Housing Material
    Thermoplastic
  • Housing Style
    Rectangular w/M30 Mount
  • Sensing Mode (Detailed)
    Receiver
  • Cable Length (m)
    9
  • Sensing Beam
    Infrared LED
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS30R W/30 on Powermatic Associates is $128.00. Order now.

About the product

Banner Engineering QS30R W/30 is a photo-electric sensor designed for through-beam system applications, featuring an M30 threaded mount for secure installation. This sensor operates within an ambient air temperature range of -20 to +70°C and is housed in a durable thermoplastic with an acrylic lens. It is equipped with a pre-wired 30ft / 9m cable that terminates with bare end flying leads, facilitating straightforward connection. Part of the QS30 DC voltage series, it requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. The QS30R W/30 offers a sensing distance of up to 60m and utilizes infrared light, supporting both Light-ON and Dark-ON operating modes. It features a single digital output (PNP/NPN transistor) and boasts a rapid response time of 5ms. This sensor is protected against ingress by an IP67 NEMA 6 rated enclosure, ensuring its suitability for a wide range of industrial environments.
