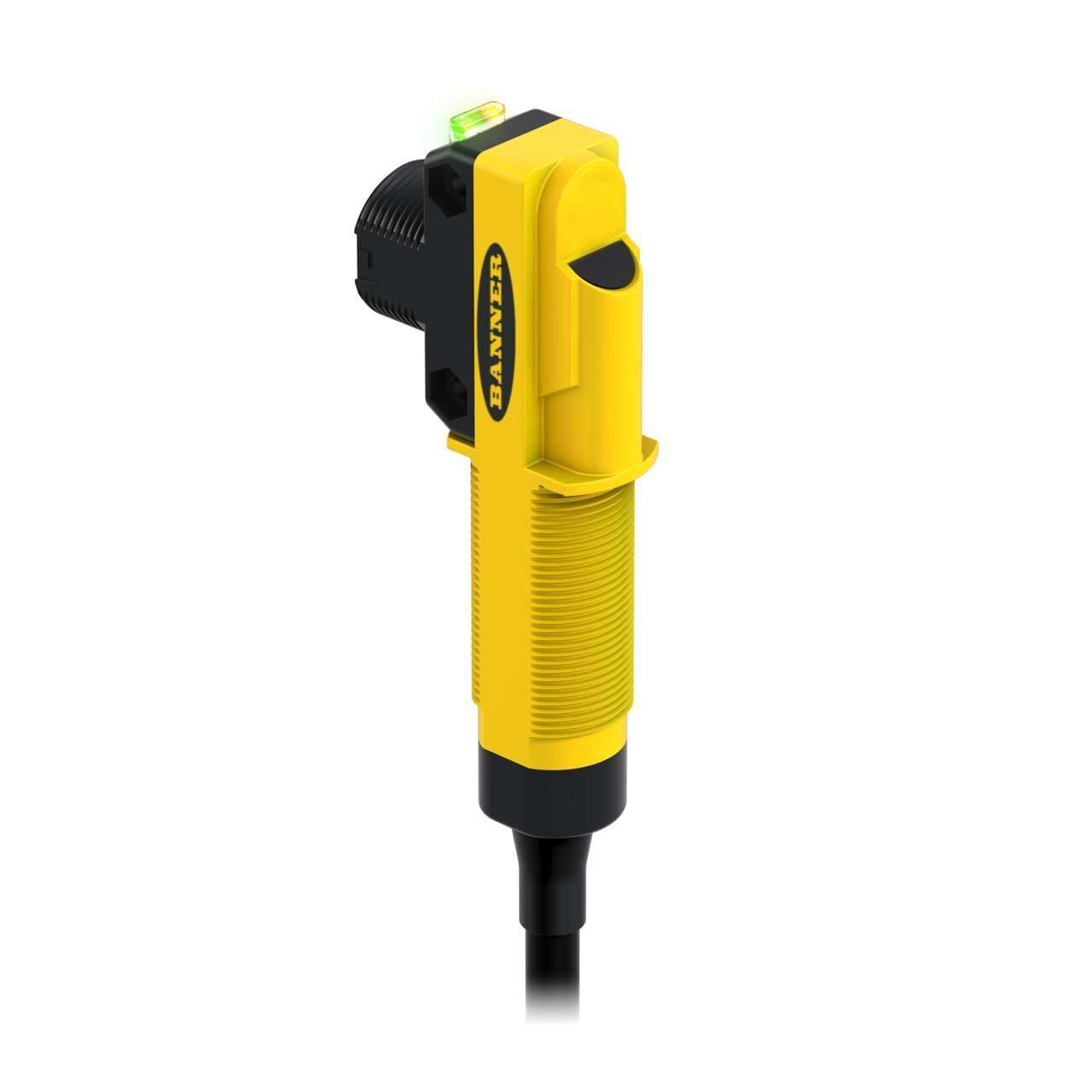

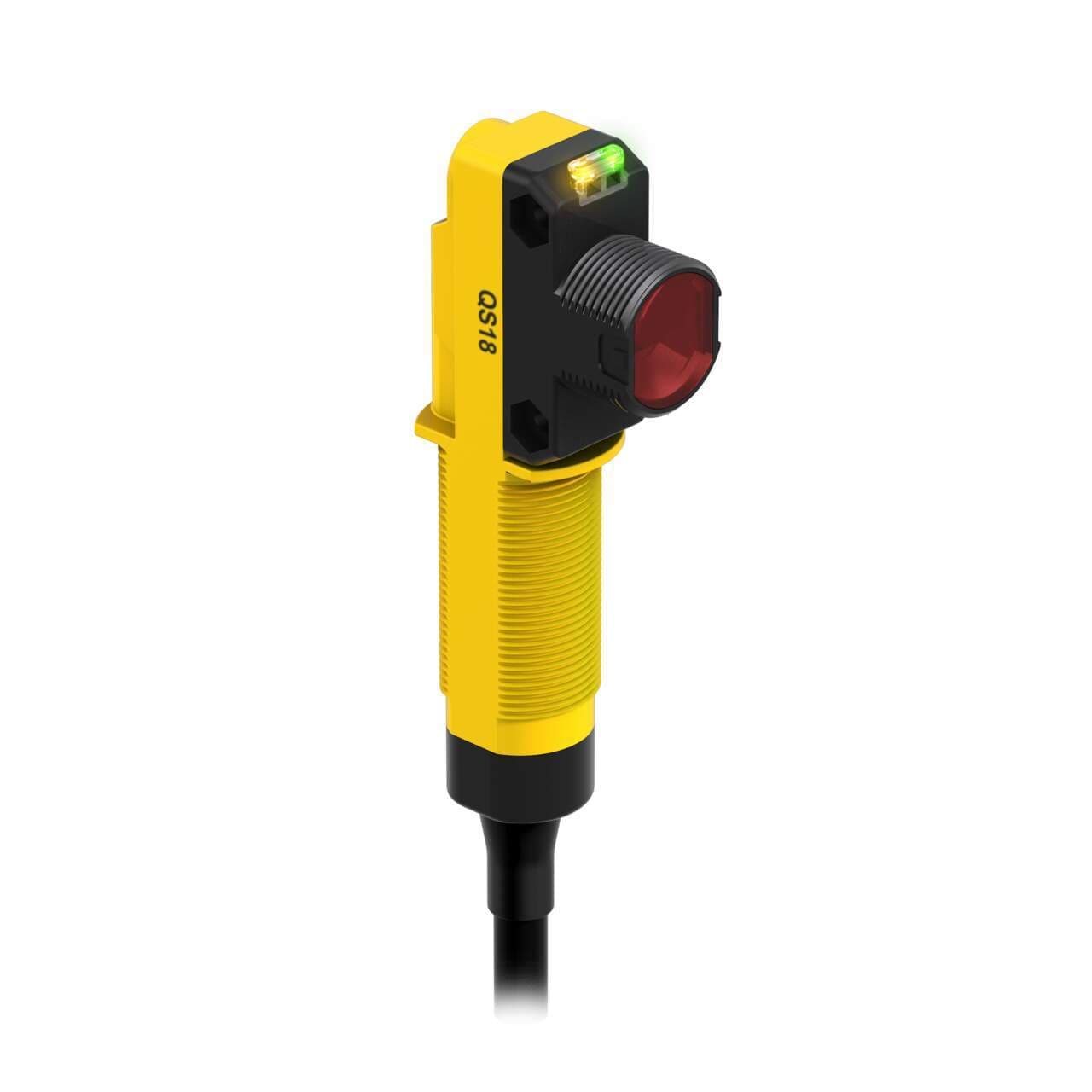

QS18WE Banner Proximity Sensors
Part#:QS18WE
Alt. Part#:79603
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS18 Universal Voltage Emitter; Range: 20 m; Input:; Output: Not Applicable; 2 m Cable
Product Details
- Weight 158.7572 g
- Country Of Origin MX
- Product series / family name WORLD-BEAM series
- Light Color Infrared (IR)
- Thread size M18
- Mounting mode Threaded mount
- Sub-range name QS18 universal voltage series
- Main function Sensor (Photo-electric)
- Shape Rectangular
- Primary brand Banner Engineering
- Supply voltage (AC) 20Vac-270Vac (200Vac / 220Vac / 240Vac nom.)
- Functions Photo-electric emitter green LED (power ON) yellow LED (light sensed)
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Supply voltage (DC) 20Vdc-270Vdc (24Vdc / 48Vdc / 120Vdc nom.)
- Ambient air temperature for operation -25...+70 °C
- Design through-beam system / opposed mode
- Compliant with standard(s) cULus CE
- Degree of protection IP67 NEMA 6
- Material thermoplastic housing PMMA lns.
- Order code / Manufacturer SKU 79603
- Output response time (ms) 16.6
- Sensing Beam Infrared LED
- Quick Disconnect Type No QD
- Lens Material PMMA
- Feature: Chemical Resistant No
- Power Supply/Supply Voltage 20-270 V ac/dc
- Operation N/A
- Delay at Power-up (ms) 100ms dc, 300ms ac
- Barrel Diameter (mm) 18
- DeviceNet No
- Max Sensing Distance (mm) 20000
- Min Op. Temp. (°C) -25
- Repeatability (µs) 1500
- Indicator LEDs
- IO Link No
- Housing Style Rectangular w/M18 Mount
- Connection Cable
- NEMA Rating NEMA 6
- Feature: Timing (Hold/Delay) No
- Cable Length (m) 2
- Outputs N/A
- IP Rating IP67
- Primary Housing Material ABS
- Sensing Mode (Detailed) Emitter
- Special Feature: Intrinsically Safe No
- Max Op. Relative Humidity [%] 95% @ 55°C
- Feature: Quick Disconnect No
- Power AC/DC Universal
- Special Feature: Water Detection No
- Adjustments N/A
- Feature: Audible No
- Sensing Mode (General) Opposed
- Special Feature: Remote Teach No
- Opposed Mode Emitter/Receiver Emitter
- Max Op. Temp. (°C) 70 if < 140V, 55 if > 140V
- Feature: Hazardous Area No
- Feature: Encapsulated No
- Number of Pins 2
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18WE on Powermatic Associates is $83.00. Order now.
About the product
Banner Engineering QS18WE is a photo-electric sensor designed for through-beam system applications, functioning as an emitter alone. It features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -25 to +70°C. This sensor is part of the QS18 universal voltage series and is equipped with a pre-wired 6.5ft / 2m cable that terminates with bare end flying leads, facilitating easy connection. It supports a wide supply voltage range, accepting 20Vac-270Vac (with 200Vac, 220Vac, and 240Vac as nominal values) and 20Vdc-270Vdc (with 24Vdc, 48Vdc, and 120Vdc as nominal values), making it versatile for various power supply configurations. The QS18WE boasts a rectangular shape with a thermoplastic housing and a Polymethyl methacrylate (PMMA) lens, ensuring durability. It offers a sensing distance of up to 20m and utilizes infrared (IR) light for detection. This sensor is designed to provide a high degree of protection, rated at IP67 NEMA 6, against dust and water ingress, making it suitable for a wide range of industrial environments.
