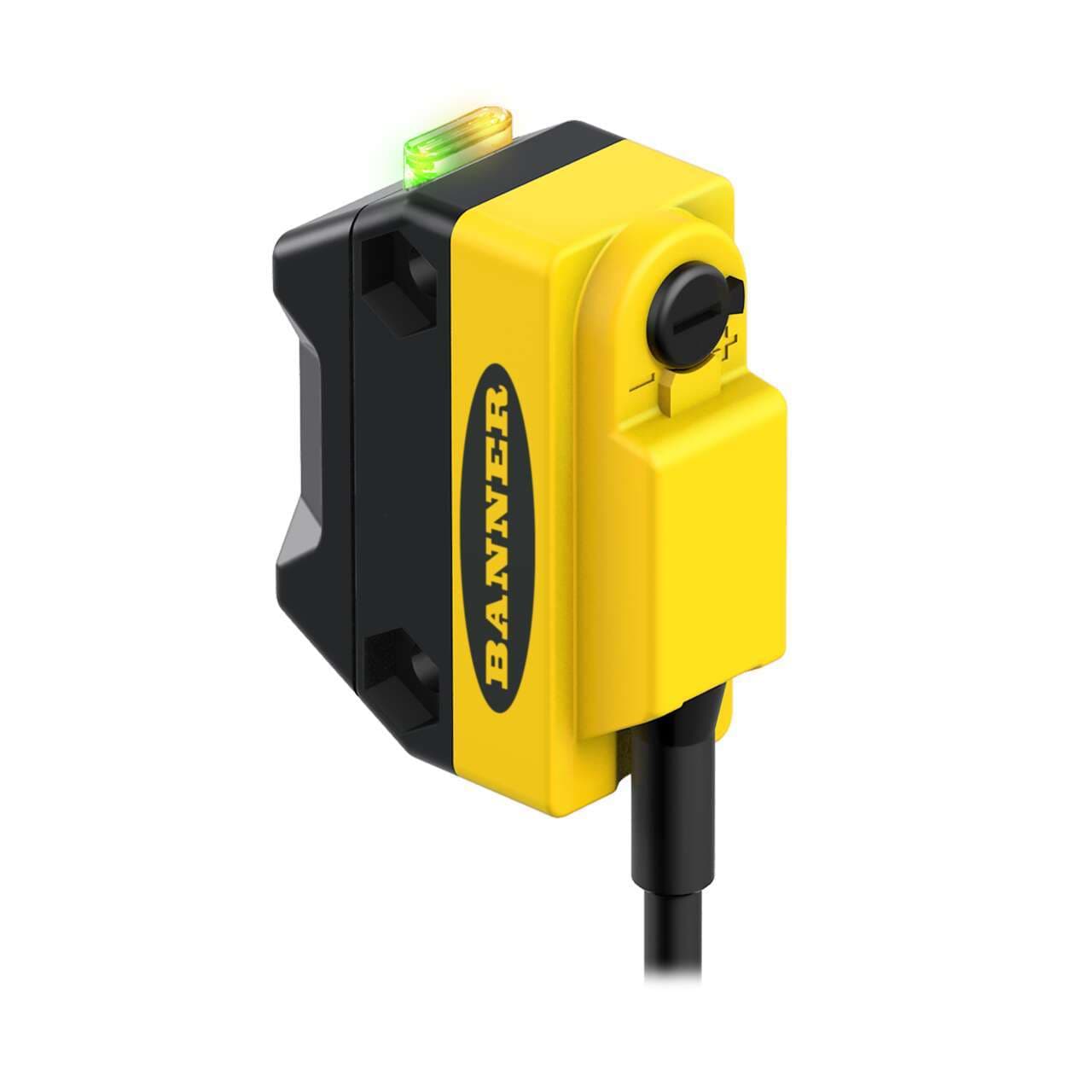

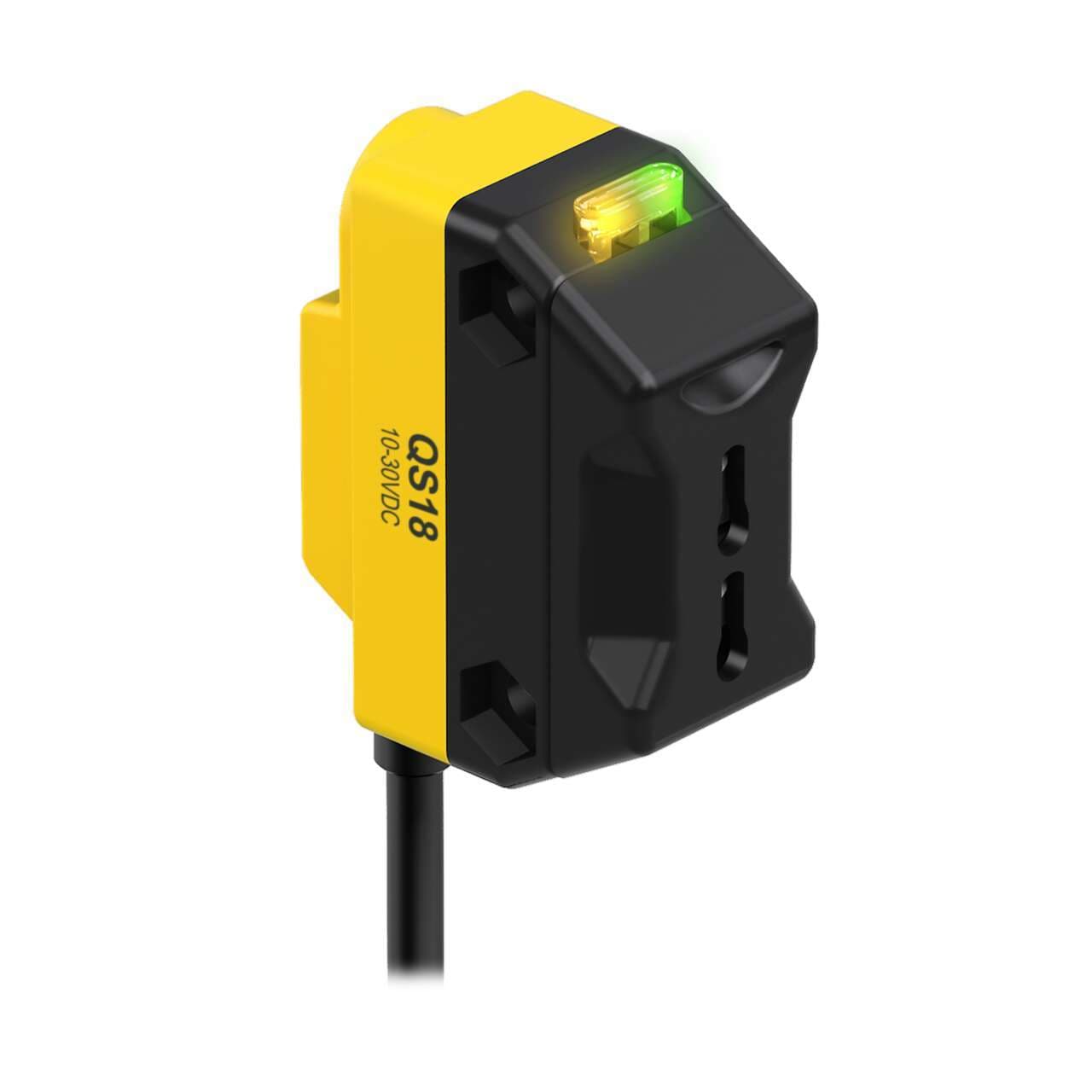

QS18VN6FPQ Banner Proximity Sensors

QS18VN6FPQ on Powermatic Associates
Banner
  • QS18VN6FPQ
  • QS18VN6FPQ

Part#:QS18VN6FPQ

Alt. Part#:66223

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

WORLD-BEAM: Plastic Fiber Optic; Range: Depends on Fiber; Input: 10-30 V dc; Output: NPN; 6 in Pigtai lM8 QD

Product Details

  • Weight
    54.43104 g
  • Country Of Origin
    MX
  • Main function
    Amplifier for sensor
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Ambient air temperature for operation
    -20...+70 °C
  • Sub-range name
    QS18 series
  • Connection type
    Pre-wired with 6" / 150mm pigtail terminated with 4-pin Pico-style M8 connector
  • Primary brand
    Banner Engineering
  • Functions
    Fiber optic amplifier green LED (power ON) yellow LED (light sensed) potentiometer adjustment
  • Product series / family name
    WORLD-BEAM series
  • Shape
    Rectangular
  • Material
    thermoplastic housing
  • Light Color
    Visible red
  • Degree of protection
    IP67 NEMA 6
  • Digital outputs
    1 x digital output (NPN transistor)
  • Order code / Manufacturer SKU
    66223
  • Color LED - Amplifiers
    Red
  • Min Op. Temperature (°C)
    -20
  • Minimum response time (ms)
    .6
  • Connection
    Pigtail QD
  • Max Op. Temperature (°C)
    70
  • Special Feature: Bussable Power
    No
  • Power
    DC
  • Number of Pins
    4
  • Adjustments
    Potentiometer
  • Housing Material
    Thermoplastic
  • Output
    NPN
  • Intrinsically Safe
    No
  • Feature: Audible
    No
  • Input/Output
    Discrete
  • Repeatability (µs)
    150
  • Power Supply/Supply Voltage
    10-30 V dc
  • IO Link
    No
  • Primary Housing Material
    Thermoplastic
  • NEMA Rating
    NEMA 6
  • Indicator Display Type
    Indicator LEDs
  • Output Type (Specific)
    Single Discrete
  • Housing Style
    Rectangular
  • Max Op. Relative Humidity (%)
    95% @ 50°C
  • Feature: Timing (Hold/Delay)
    No
  • Cable Length (m)
    0.15
  • Quick Disconnect Type
    M8 (Pico)
  • Special Feature: Remote Teach
    No
  • Feature: Hazardous Area
    No
  • Fiber Type
    Plastic and Glass
  • IP Rating
    IP67
  • Delay at Power-up (ms)
    100

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VN6FPQ on Powermatic Associates is $106.00. Order now.

About the product

Banner Engineering QS18VN6FPQ is an amplifier designed for sensor applications, specifically within the QS18 series. It features a fiber optic amplifier function and operates within an ambient air temperature range of -20 to +70°C. The design includes a potentiometer for adjustment, which varies based on the sensing mode and the type of fiber optics used. This part is equipped with a pre-wired 6-inch (150mm) pigtail that terminates with a 4-pin Pico-style M8 connector. It offers a degree of protection rated at IP67 NEMA 6, ensuring its suitability for challenging environments. The supply voltage required for operation is between 10Vdc and 30Vdc, with nominal values at 12Vdc and 24Vdc. The QS18VN6FPQ has a rectangular shape and is constructed with a thermoplastic housing. It emits visible red light and includes 1 x digital output (NPN transistor; complementary NO/NC) for connectivity.

QS18VN6FPQ Related Documents

197052.pdf
