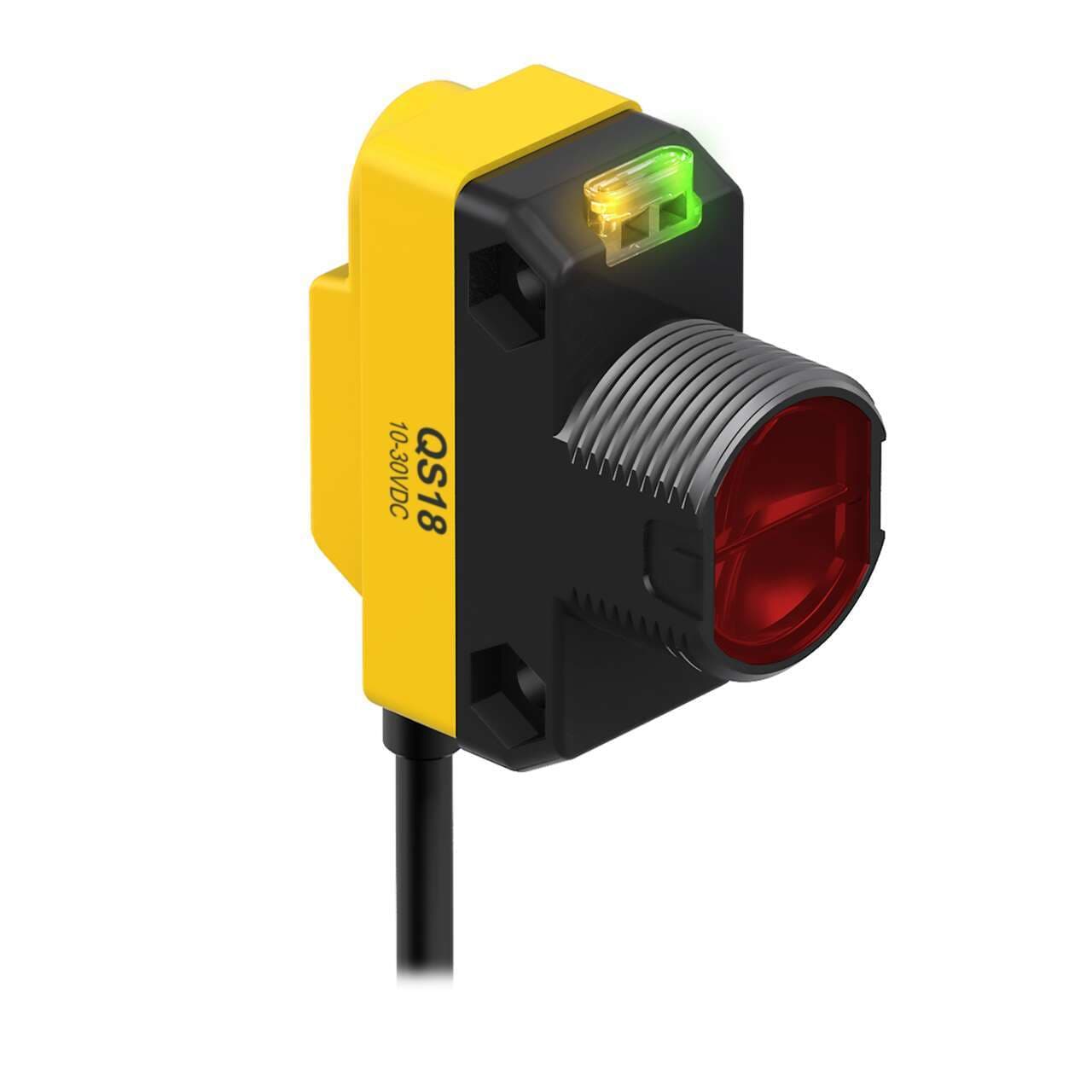

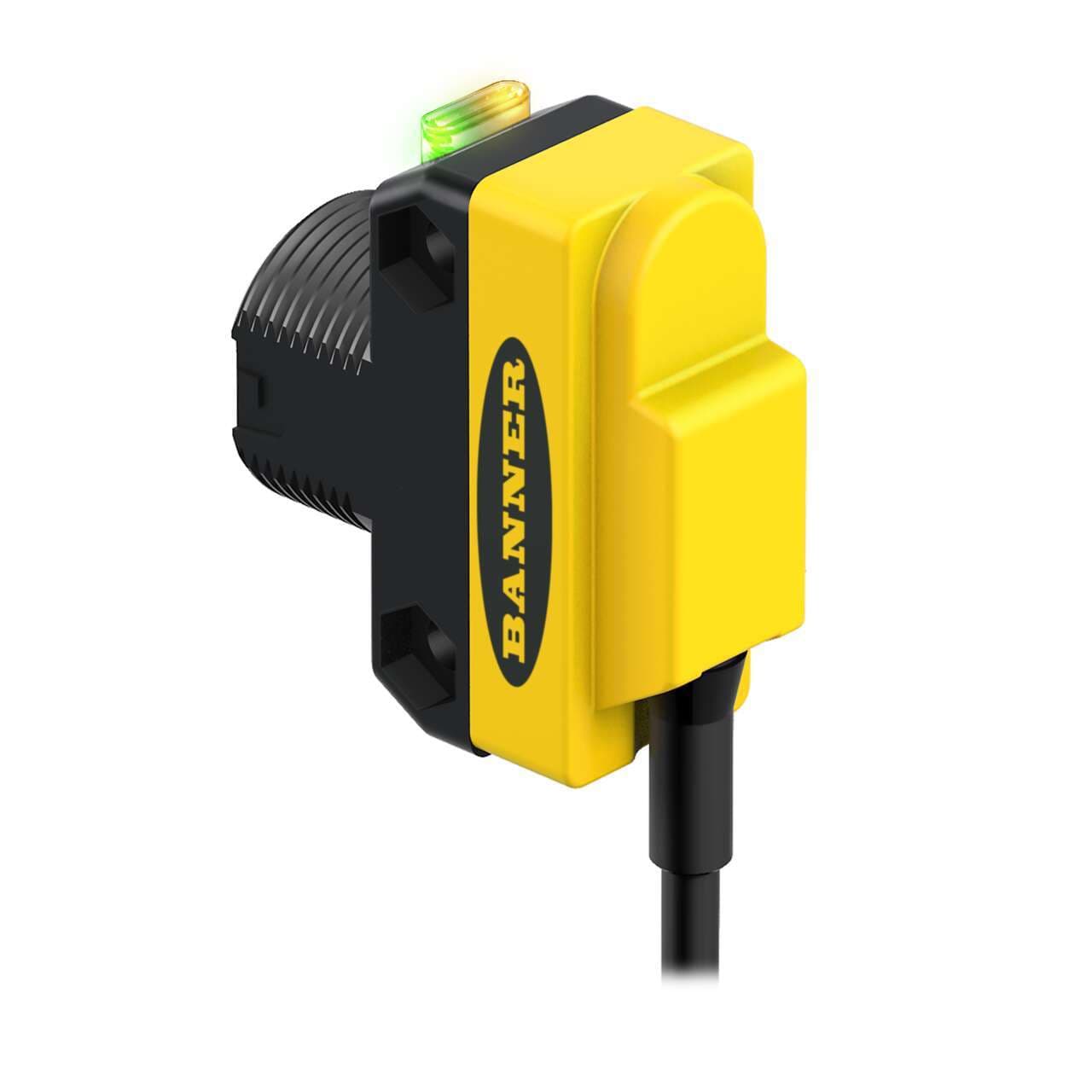

QS18VN6FF100 Banner Proximity Sensors
Part#:QS18VN6FF100
Alt. Part#:71639
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS18 Series: Fixed-Field; Range: 100 mm cutoff; Output: Complementary Solid-State NPN; 2 m (6.5 ft) Cable
Product Details
- Weight 72.57472 g
- Country Of Origin MX
- Max Sensing Distance (mm) 100
- Connection Cable
- Number of Pins 4
- Feature: Timing (Hold/Delay) No
- Input/Output Discrete
- Quick Disconnect Type No QD
- Delay at Power-up (ms) 100
- Special Feature: Remote Teach No
- NEMA Rating NEMA 6
- Feature: Quick Disconnect No
- Primary Housing Material ABS
- Power Supply/Supply Voltage 10-30 V dc
- Small Visible Spot LED
- Max Op. Temp. (°C) 70
- Repeatability (µs) 160
- Feature: Hazardous Area No
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Sensing Beam Wavelength 630
- Adjustments N/A
- IO Link No
- Sensing Beam Visible Red LED
- Operation Light/Dark Operate
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Audible No
- Cable Length (m) 2
- Outputs NPN
- Special Feature: Intrinsically Safe No
- Indicator LEDs
- Sensing Mode (General) Proximity
- Special Feature: Water Detection No
- IP Rating IP67
- Feature: Chemical Resistant No
- Power DC
- Min Op. Temp. (°C) -20
- Lens Material Acrylic
- Feature: Encapsulated No
- Barrel Diameter (mm) 18
- Housing Style Rectangular w/M18 Mount
- Output response time (ms) 0.85
- DeviceNet No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VN6FF100 on Powermatic Associates is $102.00. Order now.
About the product
Banner Engineering QS18VN6FF100 is a fixed-field photo-electric sensor designed for precise detection tasks. It features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -20 to +70°C. This sensor is equipped with a background suppression system and comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads, facilitating easy integration into various systems. Part of the QS18 series, it boasts an IP67 NEMA 6 degree of protection, ensuring durability in harsh environments. The QS18VN6FF100 operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc and 24Vdc as nominal values. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens, and it has a sensing distance of 100mm. The sensor emits visible red light and supports both Light-ON and Dark-ON operating modes. Additionally, it features 1 x digital output (NPN transistor; complementary NO/NC) for versatile signaling options.
