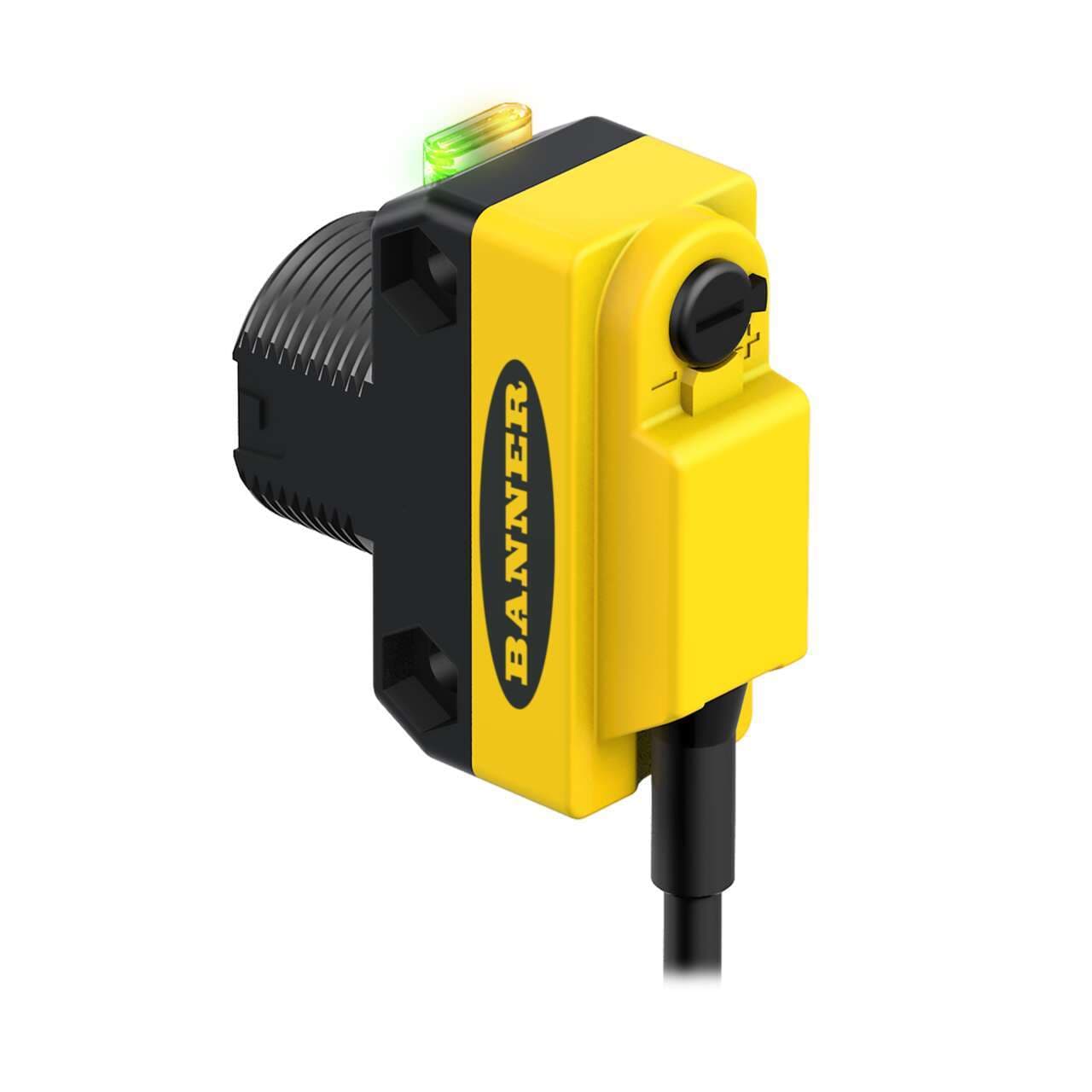

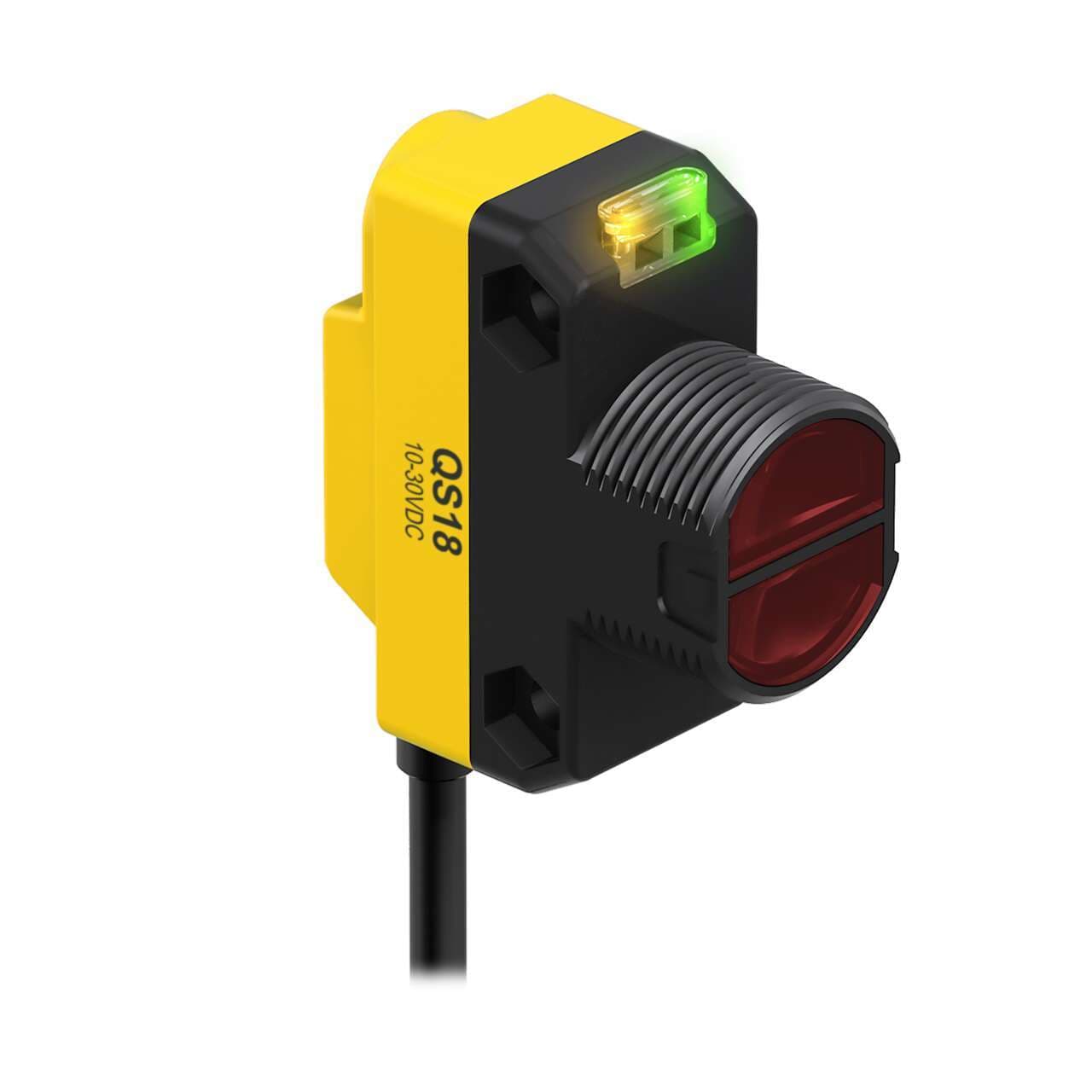

QS18VN6DLQ Banner Proximity Sensors
Part#:QS18VN6DLQ
Alt. Part#:800762
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS18 Series: Diffuse; Range: 600 mm; Input: 10-30 V dc; Output: Complementary Solid-State NPN; M8 150 mm (6 in) Pigtail QD
Product Details
- Weight 26.8526464 g
- Country Of Origin MX
- Product series / family name WORLD-BEAM series
- Sensing distance 600mm
- Light Color Infrared (IR)
- Wavelength 940 nm
- Thread size M18
- Sub-range name QS18 series
- Functions Photo-electric sensor green LED (power ON) yellow LED (light sensed) potentiometer adjustment
- Operating mode Light-ON Dark-ON
- Response time 0.85ms / 0.00085 s
- Main function Sensor (Photo-electric)
- Design diffuse mode
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 4-pin Pico-style M8 connector
- Material thermoplastic housing Acrylic lns.
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Rectangular
- Digital outputs 1 x digital output (NPN transistor)
- Ambient air temperature for operation -20...+70 °C
- Degree of protection IP67 NEMA 6
- Compliant with standard(s) cURus CE
- Mounting mode Threaded mount
- Order code / Manufacturer SKU 800762
- Max Sensing Distance (mm) 600
- Max Op. Temp. (°C) 70
- Repeatability (µs) 90
- Feature: Encapsulated No
- Barrel Diameter (mm) 18
- Primary Housing Material ABS
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
- Feature: Audible No
- Sensing Mode (General) Proximity
- Power Supply/Supply Voltage 10-30 V dc
- Sensing Beam Wavelength 940
- Feature: Hazardous Area No
- Sensing Mode (Detailed) Diffuse
- Operation Light/Dark Operate
- Number of Pins 4
- Feature: Timing (Hold/Delay) No
- Power DC
- Special Feature: Remote Teach No
- Adjustments Potentiometer
- Feature: Quick Disconnect Yes
- Special Feature: Water Detection No
- Max Op. Relative Humidity [%] 95% @ 50°C
- IO Link No
- Housing Style Rectangular w/M18 Mount
- Connection Pigtail QD
- Input/Output Discrete
- Quick Disconnect Type M8 (Pico)
- Delay at Power-up (ms) 100
- Indicator LEDs
- Sensing Beam Infrared LED
- Output response time (ms) 0.85
- IP Rating IP67
- Feature: Chemical Resistant No
- Outputs NPN
- Min Op. Temp. (°C) -20
- NEMA Rating NEMA 6
- DeviceNet No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VN6DLQ on Powermatic Associates is $106.00. Order now.
About the product
Banner Engineering QS18VN6DLQ is a photo-electric sensor designed for versatile applications, featuring a diffuse mode with potentiometer adjustment. This sensor is equipped with an M18 threaded mount for secure installation and operates within an ambient air temperature range of -20 to +70°C. It comes pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Pico-style M8 connector, ensuring easy and reliable connection. The QS18VN6DLQ, part of the QS18 series, offers a degree of protection rated at IP67 NEMA 6, making it suitable for challenging environments. It operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. The sensor's rectangular shape is constructed from a thermoplastic housing with an acrylic lens, designed for durability. It has a sensing distance of up to 600mm and utilizes infrared light with a wavelength of 940 nm for detection. This model supports both Light-ON and Dark-ON operating modes and includes 1 x digital output (NPN transistor; complementary NO/NC) with a rapid response time of 0.85ms / 0.00085 s.
