QS18RNWRQ2

Banner

Product Lifecycle: Active

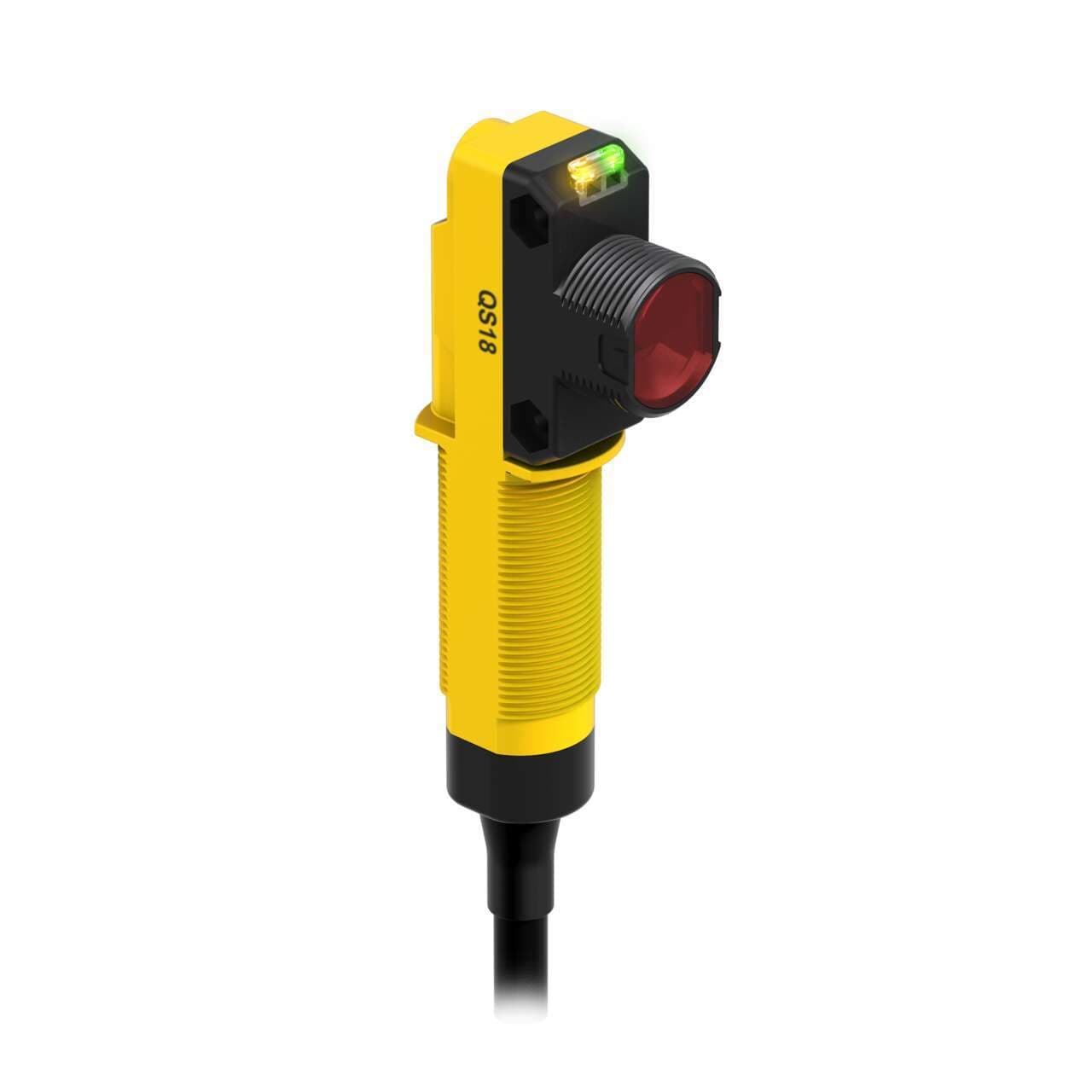

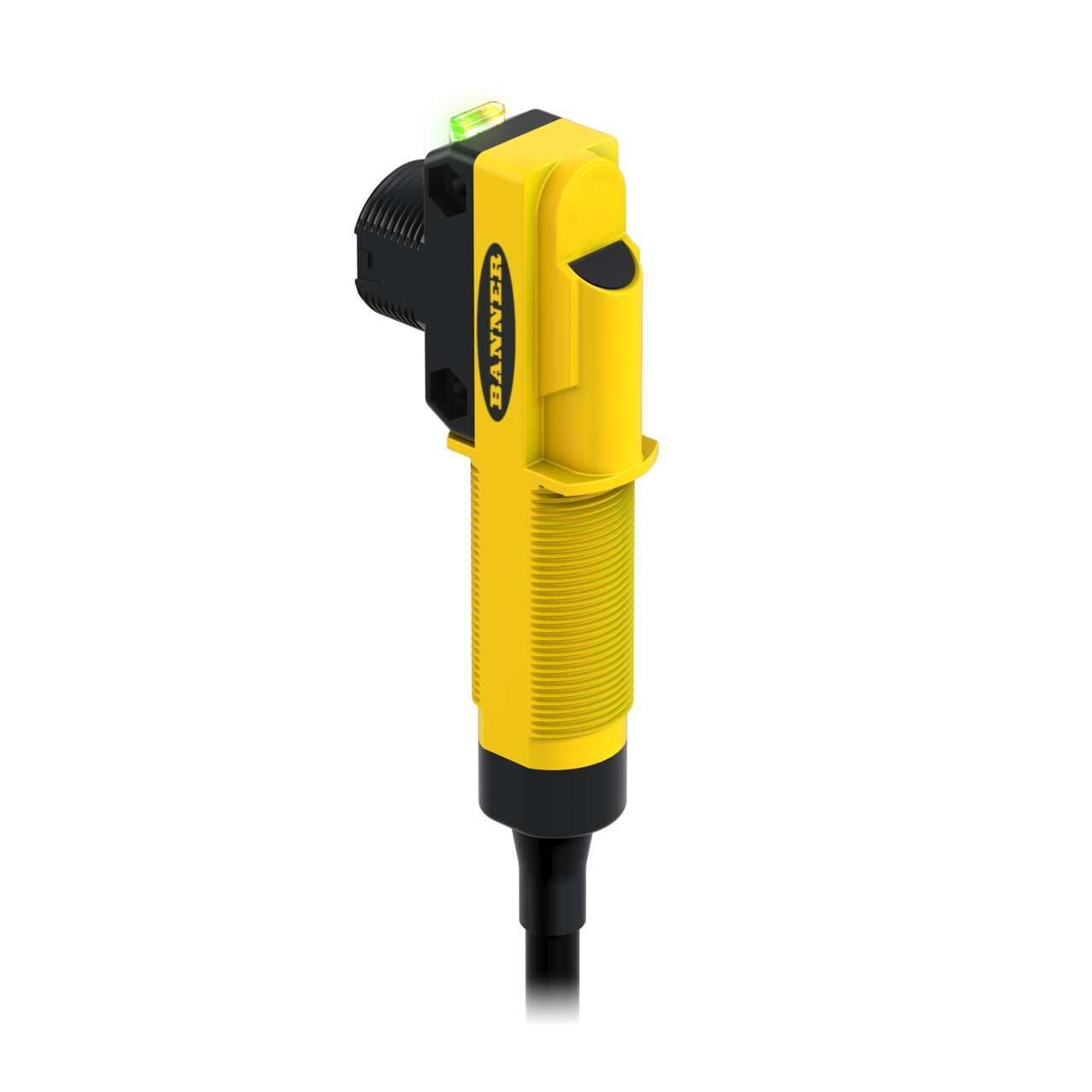

Banner Engineering QS18RNWRQ2 is a photo-electric sensor designed for through-beam system applications, functioning as the receiver component in an opposed mode setup. It features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -25 to +70°C. This sensor is equipped with a pre-wired 6-inch (150mm) pigtail that terminates with a 4-pin 1/2" micro connector, facilitating straightforward connectivity. It supports a wide supply voltage range, accepting 20Vac to 270Vac (with 200Vac, 220Vac, and 240Vac as nominal values) and 20Vdc to 270Vdc (with 24Vdc, 48Vdc, and 120Vdc as nominal values), making it versatile for various power setups. The QS18 universal voltage series sensor boasts an IP67 NEMA 6 degree of protection, ensuring durability against dust and water ingress. Its thermoplastic housing and Polymethyl methacrylate (PMMA) lens are designed for robustness, while the sensing distance reaches up to 20 meters. The operating mode is Dark-ON, and it includes one digital output (NPN MOSFET transistor) with a response time of 16.6ms (0.0166 seconds), ensuring timely operation for automation tasks.

QS18RNWRQ2

Banner Engineering QS18RNWRQ2 is a photo-electric sensor designed for through-beam system applications, functioning as the receiver component in an opposed mode setup. It features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -25 to +70°C. This sensor is equipped with a pre-wired 6-inch (150mm) pigtail that terminates with a 4-pin 1/2" micro connector, facilitating straightforward connectivity. It supports a wide supply voltage range, accepting 20Vac to 270Vac (with 200Vac, 220Vac, and 240Vac as nominal values) and 20Vdc to 270Vdc (with 24Vdc, 48Vdc, and 120Vdc as nominal values), making it versatile for various power setups. The QS18 universal voltage series sensor boasts an IP67 NEMA 6 degree of protection, ensuring durability against dust and water ingress. Its thermoplastic housing and Polymethyl methacrylate (PMMA) lens are designed for robustness, while the sensing distance reaches up to 20 meters. The operating mode is Dark-ON, and it includes one digital output (NPN MOSFET transistor) with a response time of 16.6ms (0.0166 seconds), ensuring timely operation for automation tasks.

  • Feature: Quick DisconnectYes
  • IO LinkNo
  • DeviceNetNo
  • Opposed Mode Emitter/ReceiverReceiver
  • Feature: Chemical ResistantNo
  • Feature: Hazardous AreaNo
  • Feature: AudibleNo
  • Feature: EncapsulatedNo
  • Feature: Timing (Hold/Delay)No
  • AdjustmentsN/A
  • Lens MaterialPMMA
  • IndicatorLEDs
  • IP RatingIP67
  • Number of Pins4
  • Max Op. Relative Humidity [%]95% @ 55°C
  • NEMA RatingNEMA 6
  • Barrel Diameter (mm)18
  • Repeatability (µs)1500
  • Delay at Power-up (ms)100ms dc, 300ms ac
  • Special Feature: Water DetectionNo
  • Special Feature: Remote TeachNo
  • Special Feature: Intrinsically SafeNo
  • Power Supply/Supply Voltage20-270 V ac/dc
  • Min Op. Temp. (°C)-25
  • ConnectionPigtail QD
  • Output response time (ms)16.6
  • Max Op. Temp. (°C)70 if < 140V, 55 if > 140V
  • OperationDark Operate
  • Quick Disconnect Type1/2 in. (Micro)
  • Max Sensing Distance (mm)20000
  • Housing StyleRectangular w/M18 Mount
  • OutputsN-MOSFET (Sinking)
  • Sensing Mode (General)Opposed
  • Primary Housing MaterialABS
  • Input/OutputDiscrete
  • Sensing BeamInfrared LED
  • Sensing Mode (Detailed)Receiver
  • PowerAC/DC Universal
  • Primary brandBanner Engineering
  • Supply voltage (AC)20Vac-270Vac (200Vac / 220Vac / 240Vac nom.)
  • Mounting modeThreaded mount
  • Materialthermoplastic housing PMMA lns.
  • Product series / family nameWORLD-BEAM series
  • Designthrough-beam system / opposed mode
  • Digital outputs1 x digital output (NPN MOSFET transistor)
  • Main functionSensor (Photo-electric)
  • Sensing distance20m
  • Degree of protectionIP67 NEMA 6
  • Supply voltage (DC)20Vdc-270Vdc (24Vdc / 48Vdc / 120Vdc nom.)
  • Operating modeDark-ON
  • FunctionsPhoto-electric sensor receiver green LED (power ON) yellow LED (light sensed)
  • Thread sizeM18
  • Connection typePre-wired with 6" / 150mm pigtail terminated with 4-pin 1/2" Micro connector
  • Ambient air temperature for operation-25...+70 °C
  • Compliant with standard(s)cULus CE
  • Sub-range nameQS18 universal voltage series
  • ShapeRectangular
  • Response time16.6ms / 0.0166 s
  • Order code / Manufacturer SKU79581
