QS18EP6FPQ
Banner
Product Lifecycle: Active

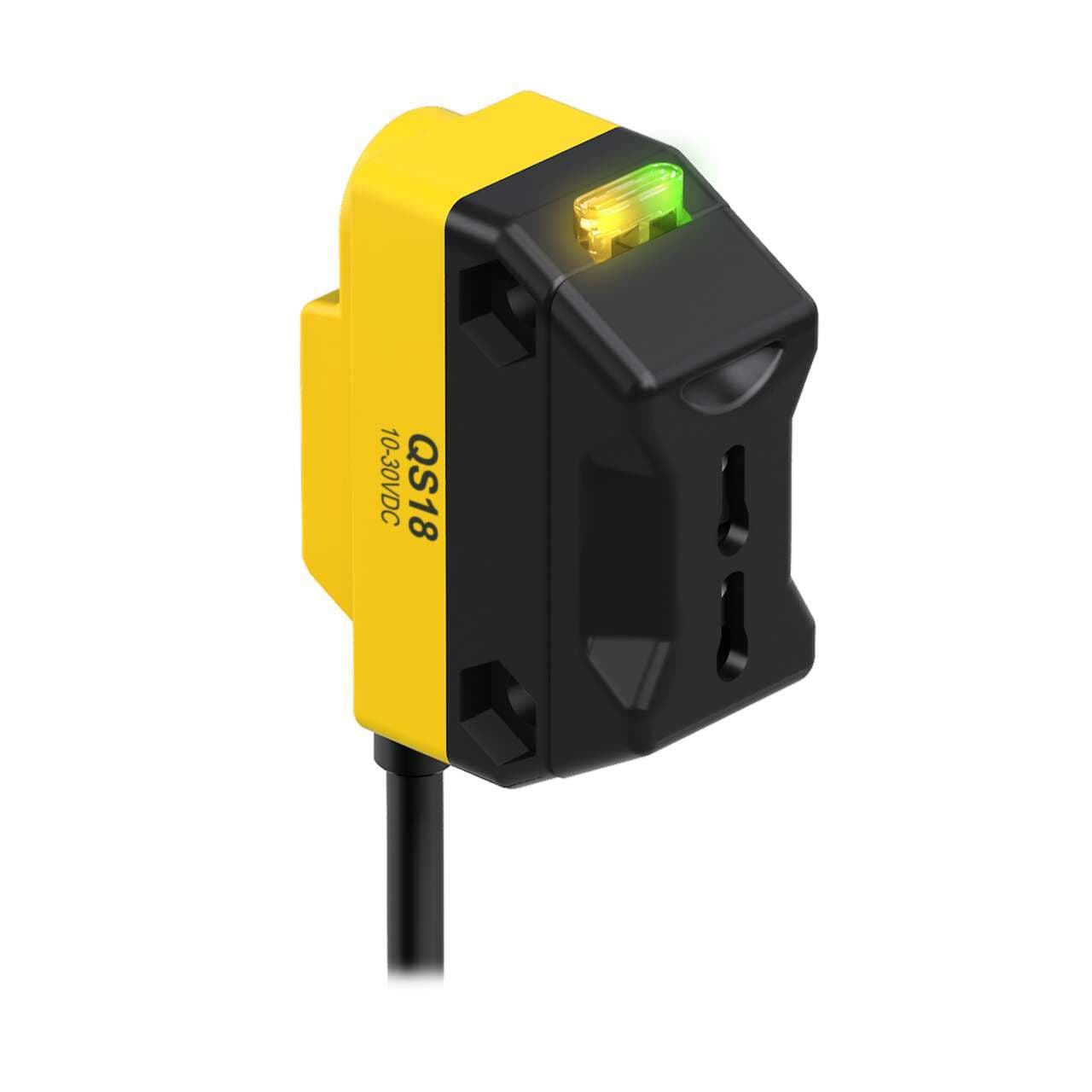

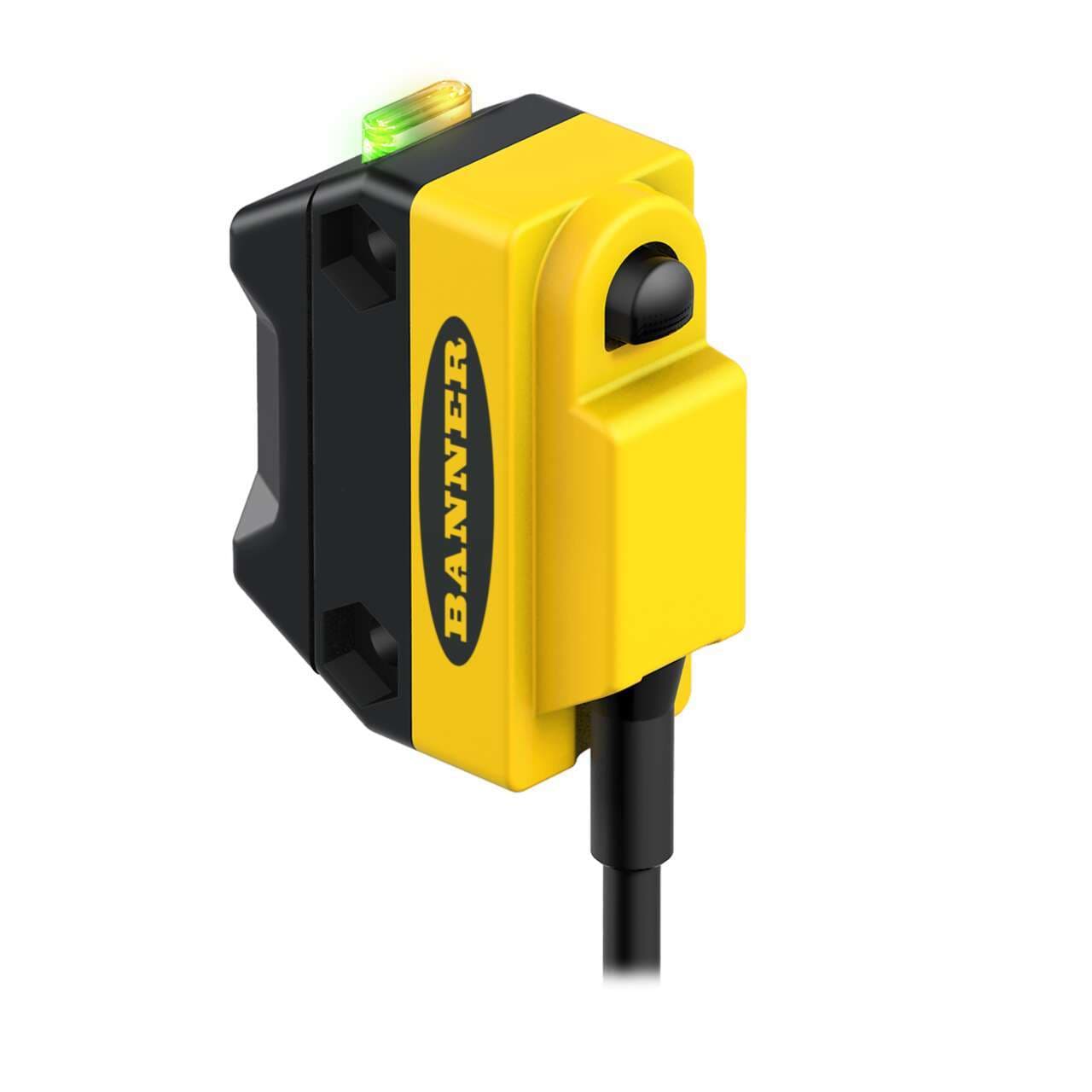

Banner Engineering QS18EP6FPQ is an amplifier designed for sensor applications, specifically functioning as a fiberoptic sensor amplifier within the QS18 Expert series. It operates within an ambient air temperature range of -20 to +70°C and features a TEACH mode for ease of use. This part is pre-wired with a 6-inch (150mm) pigtail that terminates with a 4-pin Pico-style M8 connector, ensuring a secure connection. The QS18EP6FPQ offers a degree of protection rated at IP67 NEMA 6, making it suitable for various industrial environments. It requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as the nominal values. The amplifier's housing is made from thermoplastic, ensuring durability, and it emits a visible red light for operational visibility. It features 1 x digital output (PNP transistor) and boasts a rapid response time of 0.6ms (0.0006 seconds), facilitating quick and efficient sensor signaling.
![QS18EP6FPQ](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2Fa91b5d1d-5e6a-4b38-99f5-2b3f57da8423.jpeg&w=3840&q=75)
Banner Engineering QS18EP6FPQ is an amplifier designed for sensor applications, specifically functioning as a fiberoptic sensor amplifier within the QS18 Expert series. It operates within an ambient air temperature range of -20 to +70°C and features a TEACH mode for ease of use. This part is pre-wired with a 6-inch (150mm) pigtail that terminates with a 4-pin Pico-style M8 connector, ensuring a secure connection. The QS18EP6FPQ offers a degree of protection rated at IP67 NEMA 6, making it suitable for various industrial environments. It requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as the nominal values. The amplifier's housing is made from thermoplastic, ensuring durability, and it emits a visible red light for operational visibility. It features 1 x digital output (PNP transistor) and boasts a rapid response time of 0.6ms (0.0006 seconds), facilitating quick and efficient sensor signaling.
Product details
- Housing MaterialThermoplastic
- Feature: AudibleNo
- Feature: Hazardous AreaNo
- Special Feature: Bussable PowerNo
- IO LinkNo
- Indicator Display TypeIndicator LEDs
- Minimum response time (ms).6
- Delay at Power-up (ms)100
- Power Supply/Supply Voltage10-30 V dc
- Feature: Timing (Hold/Delay)Yes
- Max Op. Relative Humidity (%)95% @ 50°C
- AdjustmentsTeach Button
- Intrinsically SafeNo
- IP RatingIP67
- Special Feature: Remote TeachYes
- Output Type (Specific)Single Discrete
- Number of Pins4
- Repeatability (µs)75
- Min Op. Temperature (°C)-20
- NEMA RatingNEMA 6
- Max Op. Temperature (°C)70
- Quick Disconnect TypeM8 (Pico)
- OutputPNP
- Housing StyleRectangular
- Color LED - AmplifiersRed
- ConnectionPigtail QD
- Cable Length (m)0.15
- PowerDC
- Fiber TypePlastic and Glass
- Primary Housing MaterialThermoplastic
- Input/OutputDiscrete
- Primary brandBanner Engineering
- Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- FunctionsFiber optic sensor amplifier green LED (power ON) yellow LED (light sensed) TEACH mode
- Light ColorVisible red
- Main functionAmplifier for sensor
- ShapeRectangular
- Materialthermoplastic housing
- Product series / family nameWORLD-BEAM series
- Connection typePre-wired with 6" / 150mm pigtail terminated with 4-pin Pico-style M8 connector
- Degree of protectionIP67 NEMA 6
- Sub-range nameQS18 Expert series
- Digital outputs1 x digital output (PNP transistor)
- Order code / Manufacturer SKU75730
- Ambient air temperature for operation-20...+70 °C
