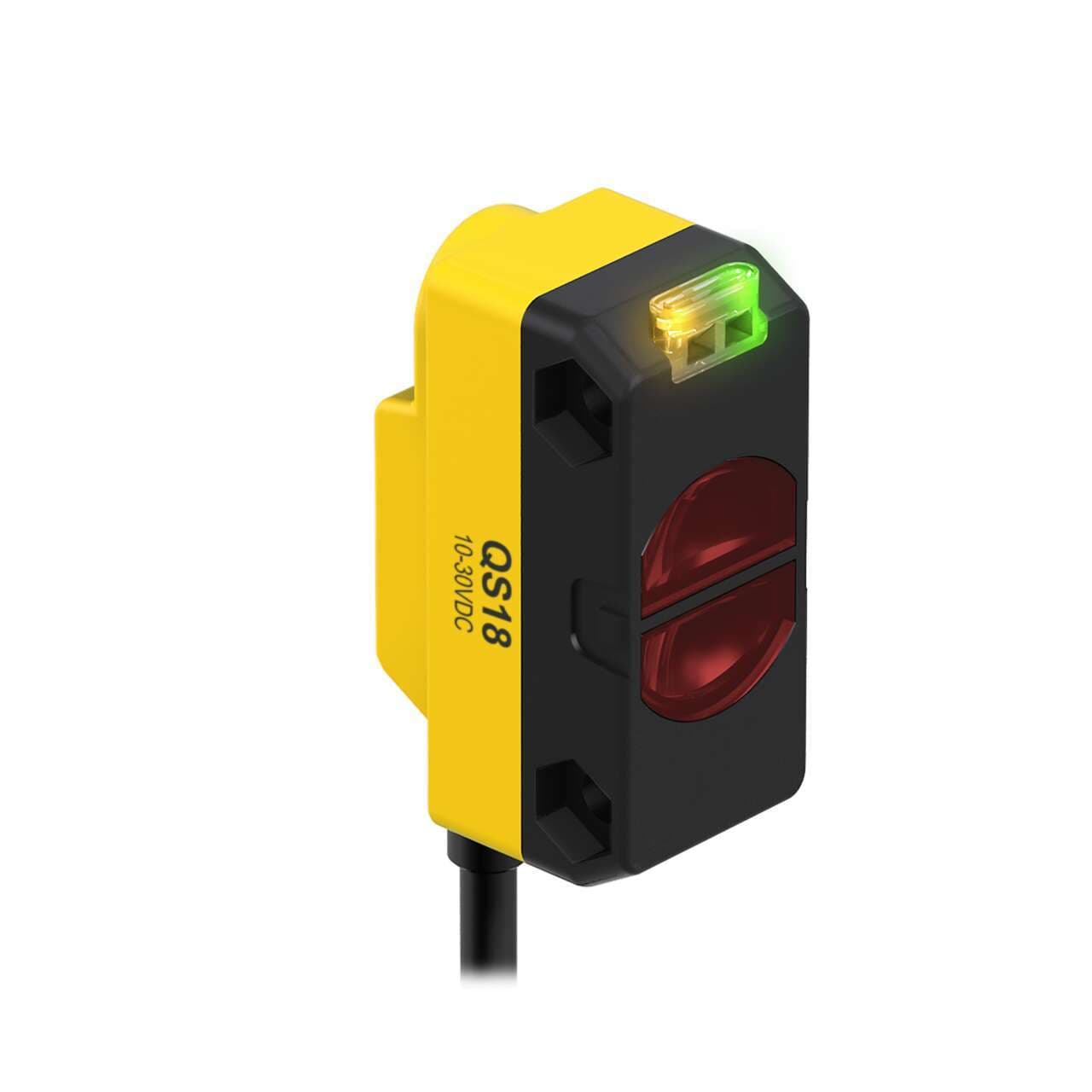

QS18EP6DBQ Banner Proximity Sensors

QS18EP6DBQ on Powermatic Associates
Banner

Part#:QS18EP6DBQ

Manufacturer:Banner

Category:Proximity Sensors

Alt. Part#:68752

Product Lifecycle:Active

Get a quick Quote!

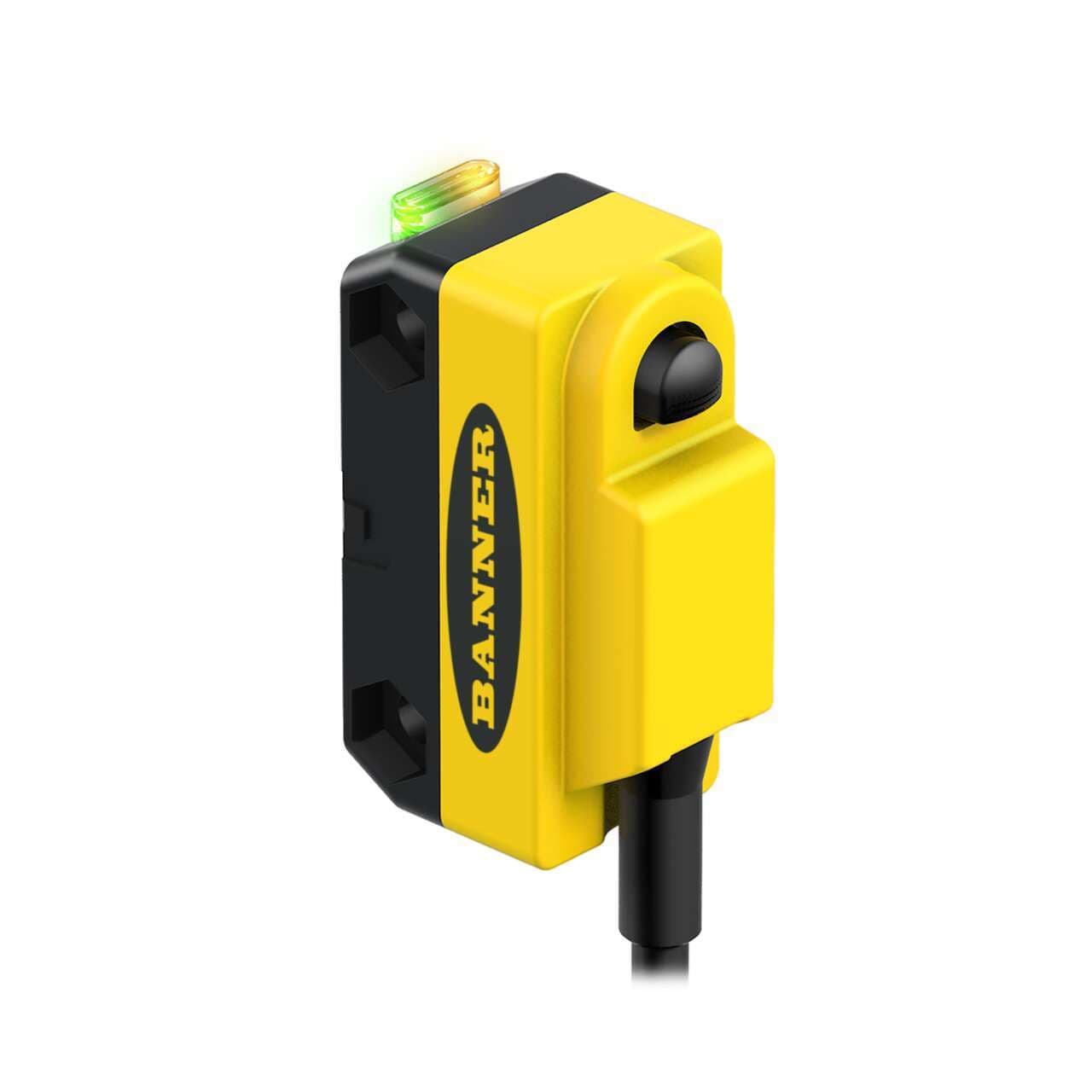

WORLD-BEAM QS18 Expert Series: Diffuse; Range: 500 mm; Input: 10-30 V dc; Output: PNP; 150 mm (6 in) M8 Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the QS18EP6DBQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    45.3592 g
  • Country Of Origin
    MX
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Quick Disconnect
    Yes
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Encapsulated
    No
  • Feature: Timing (Hold/Delay)
    Yes
  • Indicator
    LEDs
  • Barrel Diameter (mm)
    N/A
  • Lens Material
    PMMA
  • Adjustments
    Teach Button
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • IP Rating
    IP67
  • Special Feature: Water Detection
    No
  • NEMA Rating
    NEMA 6
  • Number of Pins
    4
  • Repeatability (µs)
    75
  • Delay at Power-up (ms)
    100
  • Max Op. Temp. (°C)
    70
  • Special Feature: Intrinsically Safe
    No
  • Min Op. Temp. (°C)
    -20
  • Special Feature: Remote Teach
    Yes
  • Output response time (ms)
    0.6
  • Operation
    Light/Dark Operate
  • Quick Disconnect Type
    M8 (Pico)
  • Connection
    Pigtail QD
  • Power Supply/Supply Voltage
    10-30 V dc
  • Sensing Mode (General)
    Proximity
  • Max Sensing Distance (mm)
    500
  • Primary Housing Material
    ABS
  • Power
    DC
  • Outputs
    PNP
  • Sensing Beam
    Infrared LED
  • Input/Output
    Discrete
  • Housing Style
    Rectangular
  • Sensing Mode (Detailed)
    Diffuse
  • Product series / family name
    WORLD-BEAM series
  • Primary brand
    Banner Engineering
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Sensing distance
    500mm
  • Sub-range name
    QS18 Expert series
  • Shape
    Rectangular
  • Connection type
    Pre-wired with 6" / 150mm pigtail terminated with 4-pin Pico-style M8 connector
  • Main function
    Sensor (Photo-electric)
  • Design
    diffuse mode
  • Operating mode
    Light-ON Dark-ON
  • Ambient air temperature for operation
    -20...+70 °C
  • Functions
    Photo-electric sensor green LED (power ON) yellow LED (light sensed) TEACH mode
  • Light Color
    Infrared (IR)
  • Degree of protection
    IP67 NEMA 6
  • Material
    thermoplastic housing PMMA lns.
  • Digital outputs
    1 x digital output (PNP transistor)
  • Order code / Manufacturer SKU
    68752
  • Response time
    0.6ms / 0.0006 s
  • Compliant with standard(s)
    cURus CE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

QS18EP6DBQ Description

Banner Engineering QS18EP6DBQ is a photo-electric sensor from the QS18 Expert series designed for a variety of applications requiring precise detection. This sensor operates within an ambient air temperature range of -20 to +70°C and features a diffuse mode with TEACH mode for adaptable sensing. It comes pre-wired with a 6" / 150mm pigtail that terminates with a 4-pin Pico-style M8 connector for easy installation. The QS18EP6DBQ is housed in a thermoplastic casing with a Polymethyl methacrylate (PMMA) lens, ensuring durability and clear signal transmission. It offers a sensing distance of up to 500mm and utilizes infrared (IR) light for detection. This unit is capable of operating in both Light-ON and Dark-ON modes, providing flexibility for different operational requirements. It includes one digital output (PNP transistor) and boasts a rapid response time of 0.6ms / 0.0006 s. The sensor is designed to work with a supply voltage range of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and is protected to IP67 and NEMA 6 standards, making it suitable for use in various environmental conditions.
