QS18ANWLV
Banner
Product Lifecycle: Active

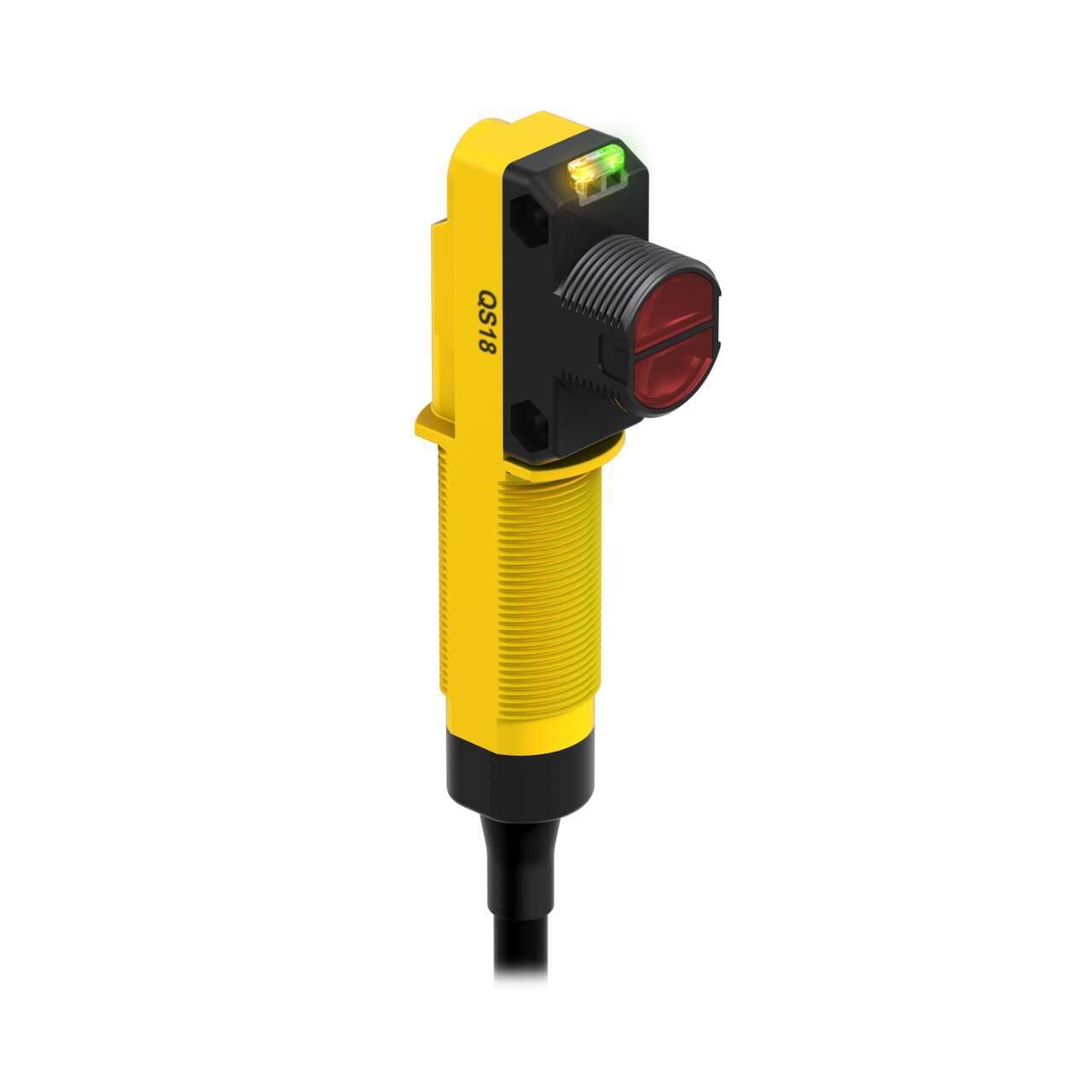

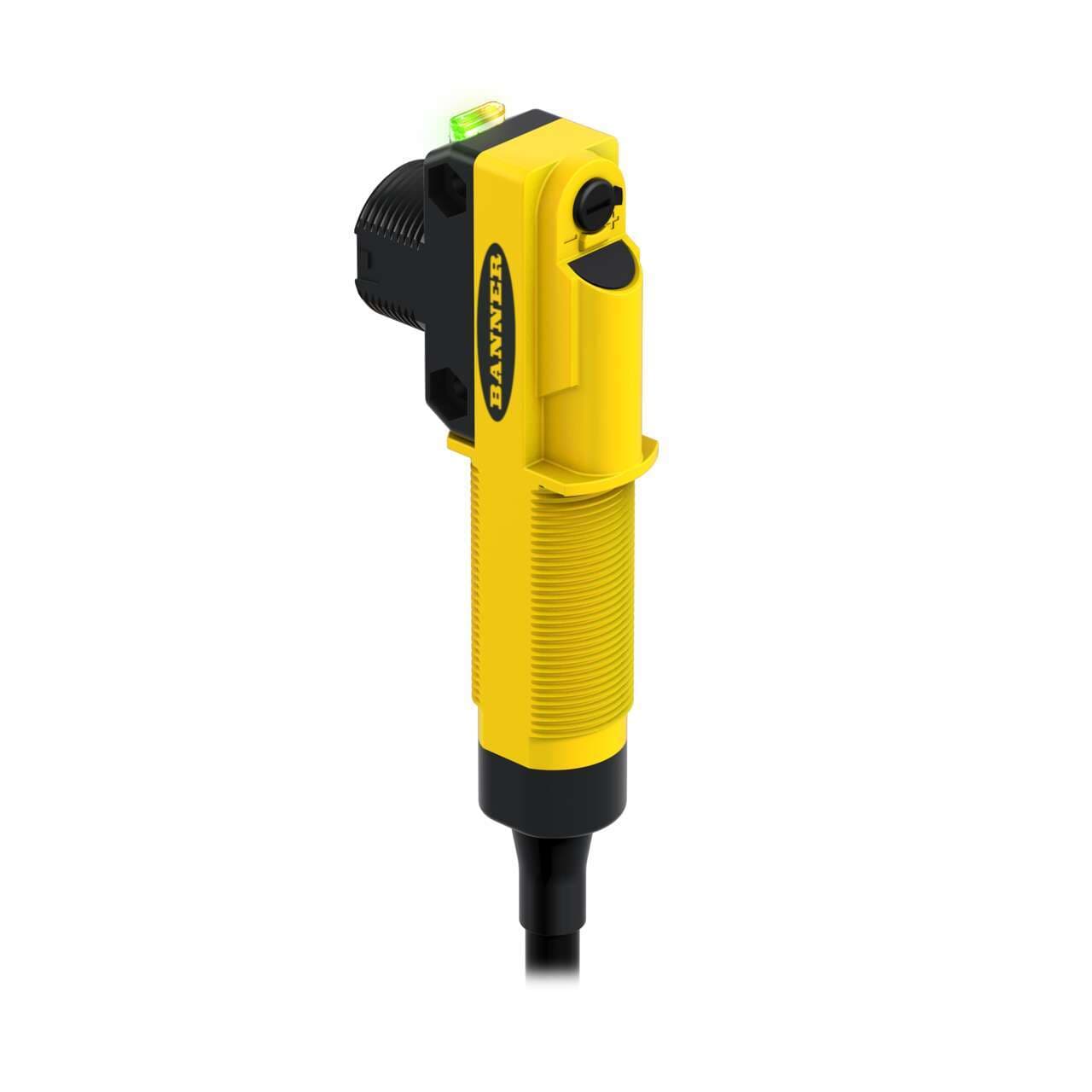

Banner Engineering QS18ANWLV is a photo-electric sensor designed for versatile applications, featuring a retro-reflective mode with potentiometer adjustment. It comes with an M18 threaded mount for easy installation and is equipped with a pre-wired 6.5ft / 2m cable that terminates with bare end flying leads for convenient connection. This sensor operates within an ambient air temperature range of -25 to +70°C and offers a sensing distance of 6.5m. It is designed to work with a wide supply voltage range, accepting both AC (20Vac-270Vac with 200Vac / 220Vac / 240Vac nominal) and DC (20Vdc-270Vdc with 24Vdc / 48Vdc / 120Vdc nominal) inputs. The QS18ANWLV features a durable thermoplastic housing with a Polymethyl methacrylate (PMMA) lens, ensuring protection in demanding environments with an IP67 NEMA 6 rating. It emits visible red light and operates in Light-ON mode, providing a single digital output (NPN MOSFET transistor) with a response time of 8.3ms / 0.0083 s.
![QS18ANWLV](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2F34e6be9d-58c6-4845-a3a8-ae7bc4890a86.jpeg&w=3840&q=75)
Banner Engineering QS18ANWLV is a photo-electric sensor designed for versatile applications, featuring a retro-reflective mode with potentiometer adjustment. It comes with an M18 threaded mount for easy installation and is equipped with a pre-wired 6.5ft / 2m cable that terminates with bare end flying leads for convenient connection. This sensor operates within an ambient air temperature range of -25 to +70°C and offers a sensing distance of 6.5m. It is designed to work with a wide supply voltage range, accepting both AC (20Vac-270Vac with 200Vac / 220Vac / 240Vac nominal) and DC (20Vdc-270Vdc with 24Vdc / 48Vdc / 120Vdc nominal) inputs. The QS18ANWLV features a durable thermoplastic housing with a Polymethyl methacrylate (PMMA) lens, ensuring protection in demanding environments with an IP67 NEMA 6 rating. It emits visible red light and operates in Light-ON mode, providing a single digital output (NPN MOSFET transistor) with a response time of 8.3ms / 0.0083 s.
Product details
- DeviceNetNo
- Feature: Quick DisconnectNo
- AdjustmentsPotentiometer
- Feature: Timing (Hold/Delay)No
- Number of Pins3
- Power Supply/Supply Voltage20-270 V ac/dc
- Special Feature: Intrinsically SafeNo
- IO LinkNo
- Feature: Chemical ResistantNo
- Feature: AudibleNo
- Feature: Hazardous AreaNo
- Feature: EncapsulatedNo
- Barrel Diameter (mm)18
- Lens MaterialPMMA
- IndicatorLEDs
- Sensing Beam Wavelength630
- Max Op. Relative Humidity [%]95% @ 55°C
- IP RatingIP67
- Delay at Power-up (ms)100ms dc, 300ms ac
- NEMA RatingNEMA 6
- Repeatability (µs)1500
- Special Feature: Water DetectionNo
- Special Feature: Remote TeachNo
- Output response time (ms)8.3
- Max Op. Temp. (°C)70 if < 140V, 55 if > 140V
- OperationLight Operate
- Quick Disconnect TypeNo QD
- Min Op. Temp. (°C)-25
- ConnectionCable
- OutputsN-MOSFET (Sinking)
- Max Sensing Distance (mm)6500
- Sensing BeamVisible Red LED
- Primary Housing MaterialABS
- Input/OutputDiscrete
- Housing StyleRectangular w/M18 Mount
- Sensing Mode (Detailed)Non-Polarized
- PowerAC/DC Universal
- Sensing Mode (General)Retroreflective
- Cable Length (m)2
- Product series / family nameWORLD-BEAM series
- Sensing distance6.5m
- Operating modeLight-ON
- Degree of protectionIP67 NEMA 6
- FunctionsPhoto-electric sensor green LED (power ON) yellow LED (light sensed) potentiometer adjustment
- Thread sizeM18
- Main functionSensor (Photo-electric)
- Supply voltage (DC)20Vdc-270Vdc (24Vdc / 48Vdc / 120Vdc nom.)
- Supply voltage (AC)20Vac-270Vac (200Vac / 220Vac / 240Vac nom.)
- Designretro-reflective mode
- Connection typePre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Response time8.3ms / 0.0083 s
- Primary brandBanner Engineering
- Sub-range nameQS18 universal voltage series
- Light ColorVisible red
- Mounting modeThreaded mount
- Compliant with standard(s)cULus CE
- ShapeRectangular
- Materialthermoplastic housing PMMA lns.
- Order code / Manufacturer SKU79589
- Digital outputs1 x digital output (NPN MOSFET transistor)
- Ambient air temperature for operation-25...+70 °C
