QS186LE214Q Banner Proximity Sensors

QS186LE214Q on Powermatic Associates
Banner

Part#:QS186LE214Q

Manufacturer:Banner

Category:Proximity Sensors

Alt. Part#:75971

Product Lifecycle:Active

Get a quick Quote!

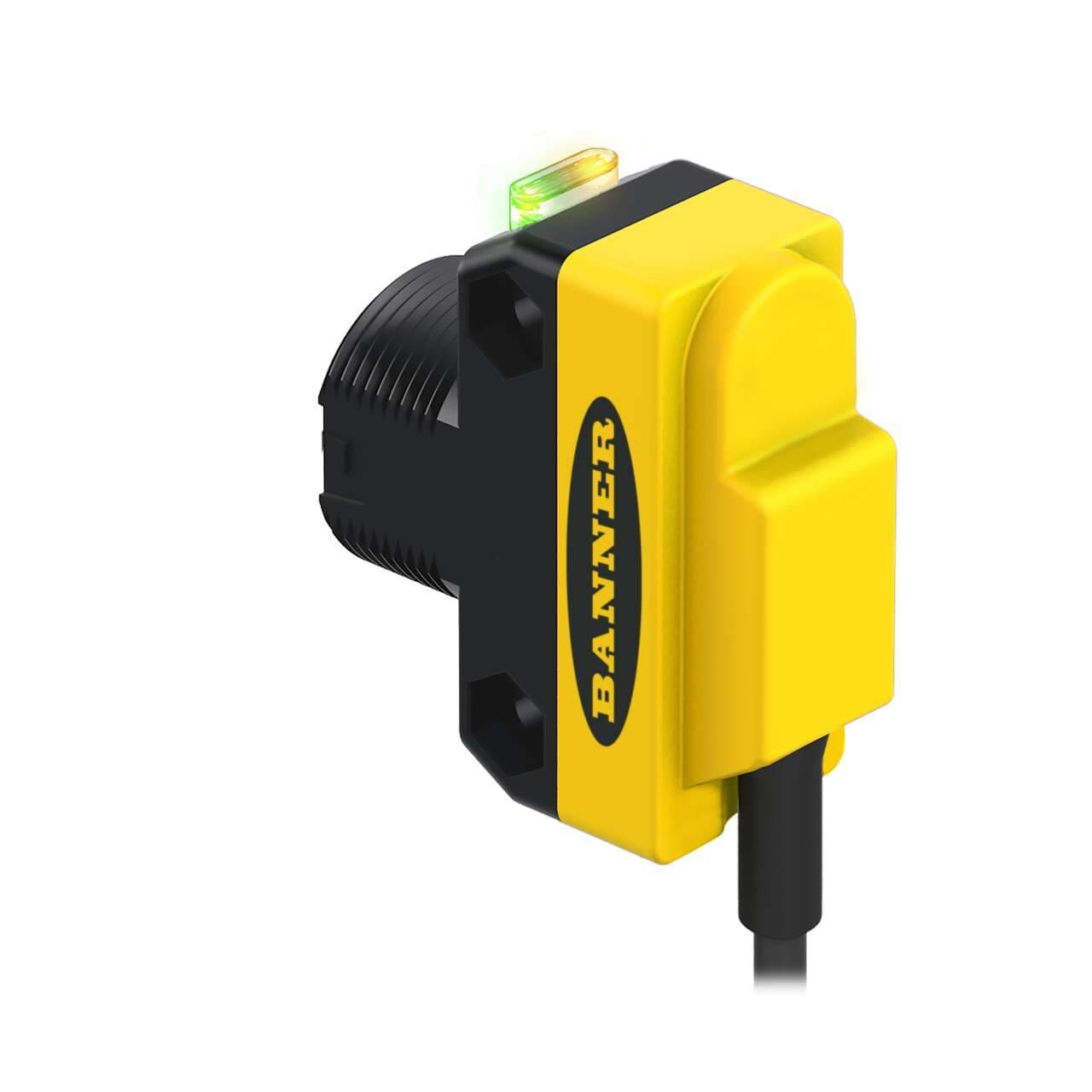

WORLD-BEAM QS18 Series: Laser Class 2; Cross; Range: 15 m; Input: 10-30 V dc; Output: Not Applicable; 150 mm (6 in) M8 Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the QS186LE214Q Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    62.595696 g
  • Country Of Origin
    MX
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Timing (Hold/Delay)
    No
  • Opposed Mode Emitter/Receiver
    Emitter
  • Indicator
    LEDs
  • Feature: Hazardous Area
    No
  • Feature: Encapsulated
    No
  • NEMA Rating
    NEMA 6
  • Adjustments
    N/A
  • Lens Material
    PMMA
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • IP Rating
    IP67
  • Special Feature: Remote Teach
    No
  • Sensing Beam Wavelength
    650
  • Delay at Power-up (ms)
    10
  • Repeatability (µs)
    N/A
  • Max Op. Temp. (°C)
    50
  • Special Feature: Intrinsically Safe
    No
  • Min Op. Temp. (°C)
    -10
  • Output response time (ms)
    N/A
  • Small Visible Spot
    Laser
  • Primary Housing Material
    ABS
  • IO Link
    No
  • Feature: Quick Disconnect
    Yes
  • DeviceNet
    No
  • Barrel Diameter (mm)
    18
  • Special Feature: Water Detection
    No
  • Laser Classification
    Class 2
  • Quick Disconnect Type
    M8 (Pico)
  • Power Supply/Supply Voltage
    10-30 V dc
  • Max Sensing Distance (mm)
    15000
  • Housing Style
    Rectangular w/M18 Mount
  • Sensing Mode (General)
    Opposed
  • Outputs
    N/A
  • Number of Pins
    4
  • Connection
    Pigtail QD
  • Operation
    N/A
  • Power
    DC
  • Sensing Beam
    Visible Red Laser
  • Sensing Mode (Detailed)
    Laser Emitter
  • Primary brand
    Banner Engineering
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Thread size
    M18
  • Main function
    Sensor (Photo-electric)
  • Functions
    Class 2 Laser photo-electric emitter green LED (power ON) yellow LED (light sensed)
  • Light Color
    Visible red
  • Degree of protection
    IP67 NEMA 6
  • Shape
    Rectangular
  • Compliant with standard(s)
    cURus CE
  • Product series / family name
    WORLD-BEAM series
  • Wavelength
    650 nm
  • Mounting mode
    Threaded mount
  • Ambient air temperature for operation
    -10...+50 °C
  • Sub-range name
    QS186LE series
  • Design
    opposed (cross) system
  • Connection type
    Pre-wired with 6" / 150mm pigtail terminated with 4-pin Pico-style M8 connector
  • Material
    thermoplastic housing PMMA lns.
  • Order code / Manufacturer SKU
    75971

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

QS186LE214Q Description

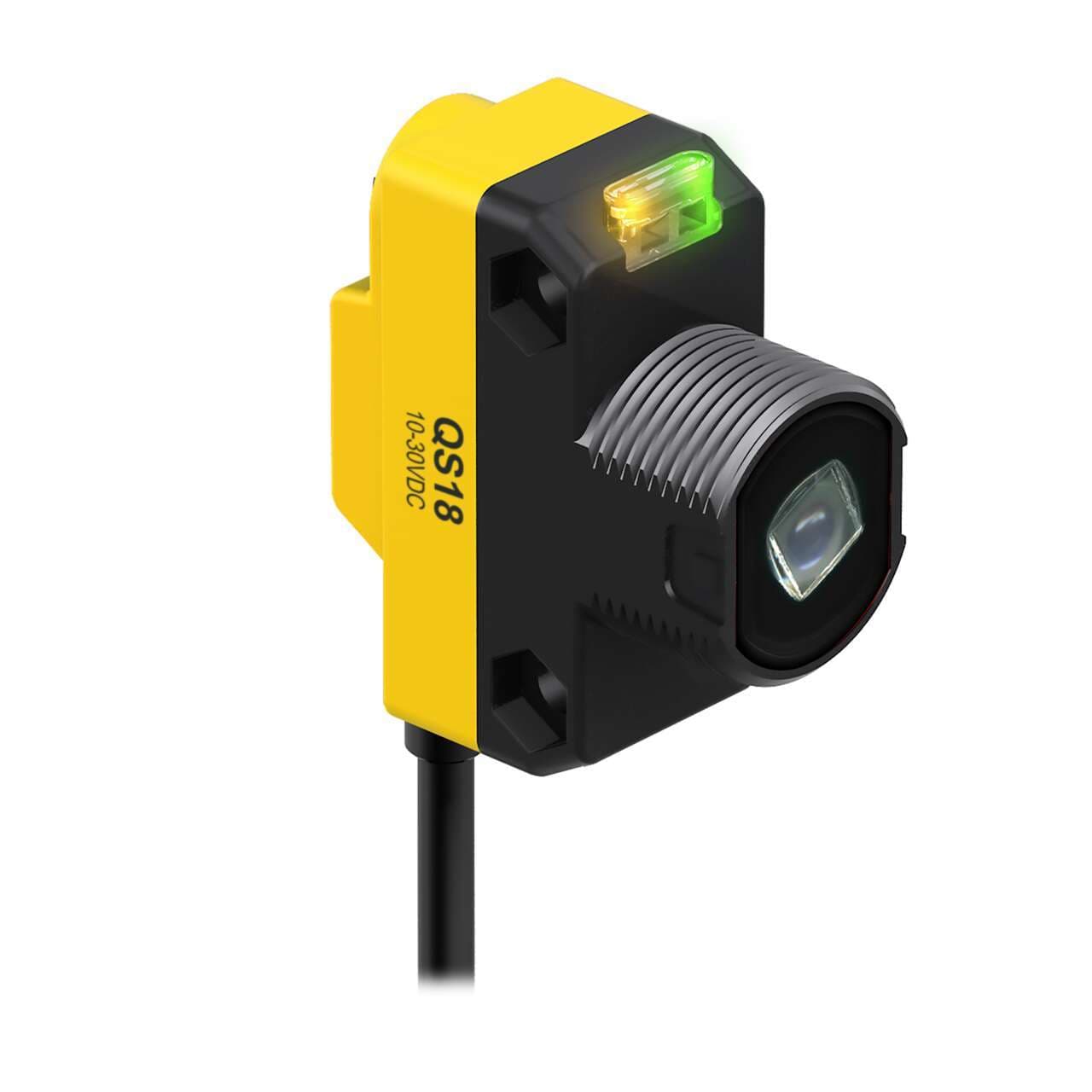

Banner Engineering QS186LE214Q is a Class 2 laser photo-electric sensor designed for precise detection tasks. It features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -10 to +50°C. This sensor is part of the QS186LE series and employs an opposed (cross) system design for enhanced sensing capabilities. It comes pre-wired with a 6-inch (150mm) pigtail that terminates with a 4-pin Pico-style M8 connector, facilitating easy and quick connection. The QS186LE214Q is protected against dust and water ingress with an IP67 NEMA 6 rating, ensuring durability in challenging environments. It requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. The sensor's housing is made from thermoplastic, and it features a Polymethyl methacrylate (PMMA) lens for reliable performance. It has a sensing distance of up to 15 meters and utilizes visible red light with a wavelength of 650 nm for detection.

Related documents QS186LE214Q Specs

QS186LE214Q 109415.pdf
