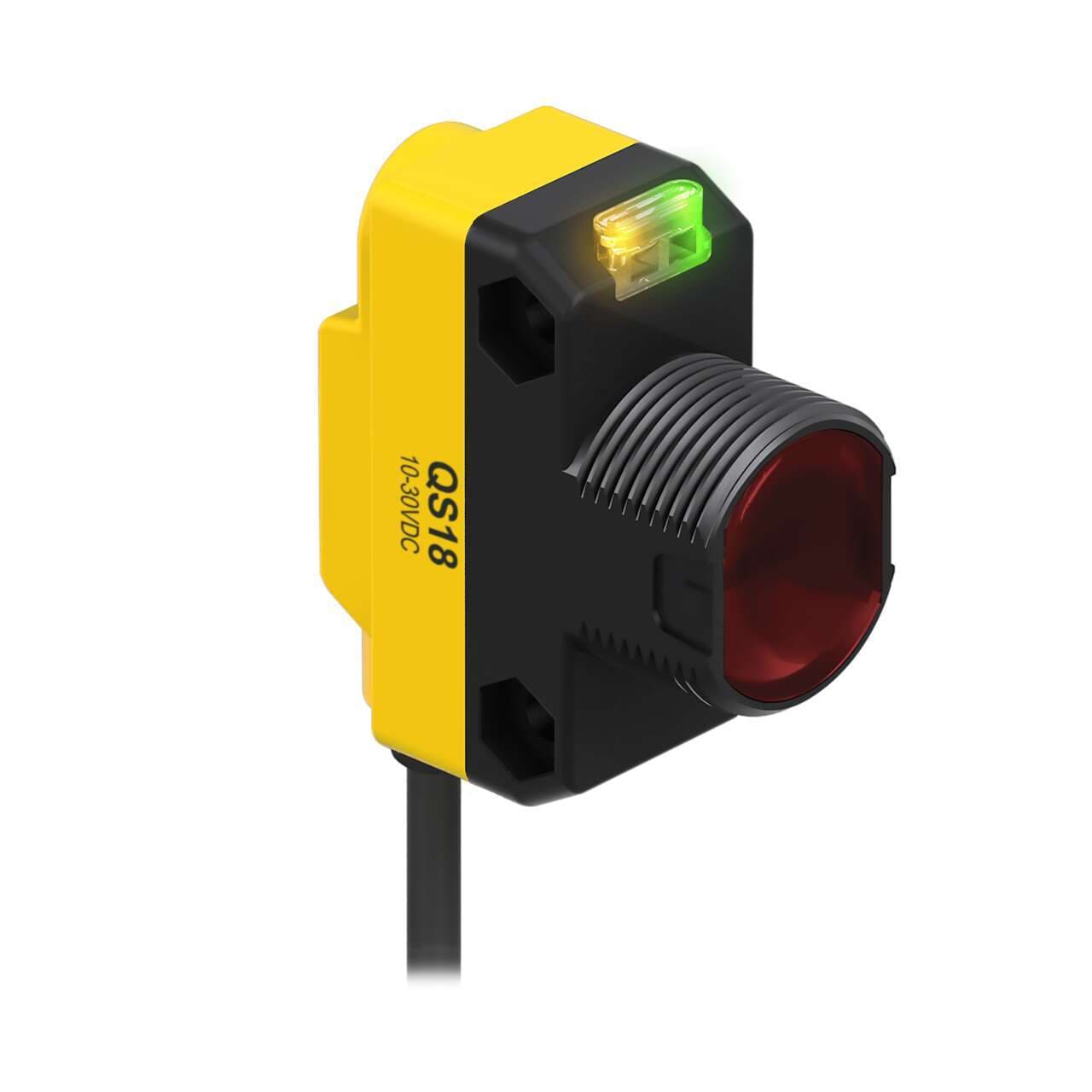

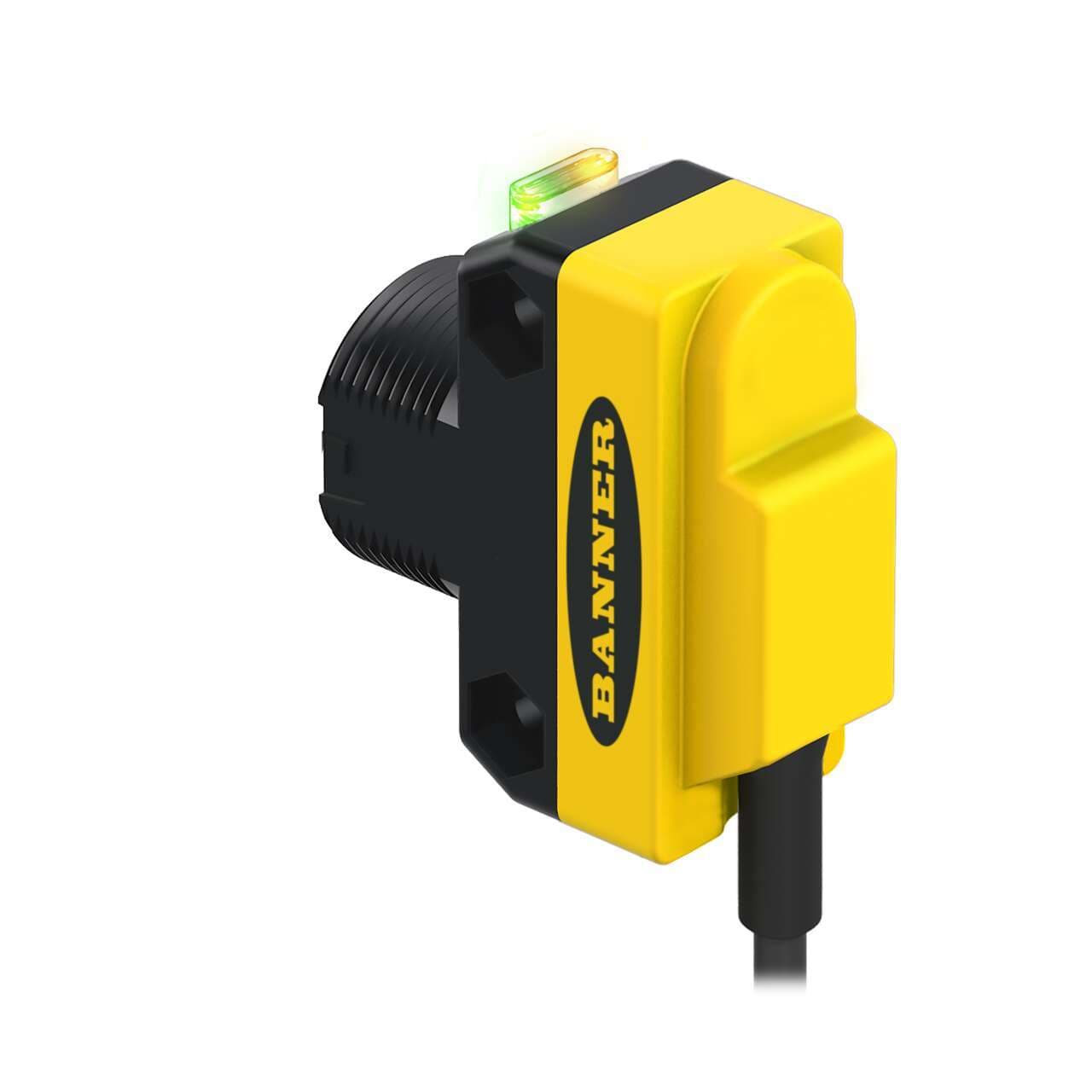

QS186E W/30 Banner Proximity Sensors

Product Details

• Weight
  163.29312 g
• Country Of Origin
  MX
• Power Supply/Supply Voltage
  10-30 V dc
• Quick Disconnect Type
  No QD
• Special Feature: Remote Teach
  No
• Adjustments
  N/A
• IO Link
  No
• Power
  DC
• Sensing Mode (Detailed)
  Emitter
• Outputs
  N/A
• Housing Style
  Rectangular w/M18 Mount
• Sensing Mode (General)
  Opposed
• Cable Length (m)
  9
• Sensing Beam
  Infrared LED
• Connection
  Cable
• Max Sensing Distance (mm)
  20000
• Output response time (ms)
  N/A
• Operation
  N/A
• Opposed Mode Emitter/Receiver
  Emitter
• IP Rating
  IP67
Feature: Quick Disconnect
No
Primary Housing Material
ABS
Max Op. Temp. (°C)
70
Min Op. Temp. (°C)
-20
Special Feature: Water Detection
No
Number of Pins
2
Delay at Power-up (ms)
100
Repeatability (µs)
100
Special Feature: Intrinsically Safe
No
NEMA Rating
NEMA 6
Barrel Diameter (mm)
18
Lens Material
Acrylic
Max Op. Relative Humidity [%]
95% @ 50°C
Feature: Audible
No
Feature: Chemical Resistant
No
Indicator
LEDs
Feature: Hazardous Area
No
Feature: Encapsulated
No
Feature: Timing (Hold/Delay)
No
DeviceNet
No
