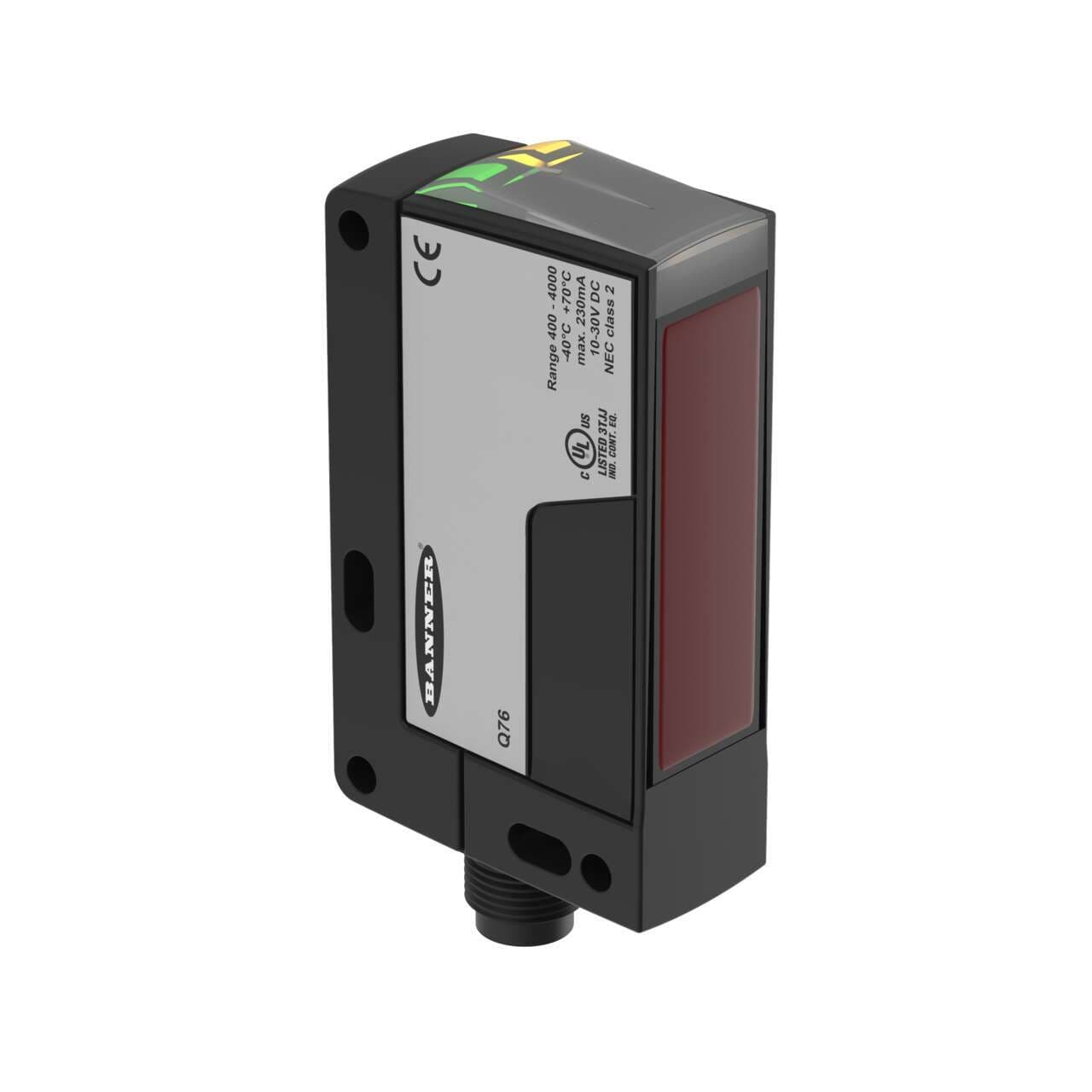

Q76E-VP-ZLVC-Q8 Banner Retroreflective Sensors

Q76E-VP-ZLVC-Q8 on Powermatic Associates
Banner
  • Q76E-VP-ZLVC-Q8
  • Q76E-VP-ZLVC-Q8

Part#:Q76E-VP-ZLVC-Q8

Alt. Part#:808853

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

Q76 Expert Wide Beam Non-Polarized Retro Area Detector; Range: 0.4 - 4 m; Input 10-30 V dc; Output: Complementary PNP; M12 Integral QD

Product Details

  • Weight
    68.0388 g
  • Country Of Origin
    MY
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Encapsulated
    No
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Washdown Rated
    Yes
  • Feature: Clear Object Detection
    Yes
  • Adjustments
    Teach Button
  • Opposed Mode Emitter/Receiver
    N/A
  • Indicator
    LEDs
  • Barrel Diameter (mm)
    N/A
  • Lens Material
    PMMA
  • NEMA Rating
    N/A
  • IP Rating
    IP67, IP69
  • Number of Pins
    4
  • Repeatability (µs)
    N/A
  • Delay at Power-up (ms)
    300
  • Sensing Beam Wavelength
    620
  • Special Feature: Water Detection
    No
  • Output response time (ms)
    2
  • Special Feature: Remote Teach
    No
  • Special Feature: Intrinsically Safe
    No
  • Max Op. Temp. (°C)
    60
  • Operation
    Light/Dark Operate
  • Min Op. Temp. (°C)
    -40
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Integral QD
  • Power Supply/Supply Voltage
    10-30 V dc
  • Housing Style
    Rectangular
  • Primary Housing Material
    Thermoplastic
  • Outputs
    PNP
  • Max Sensing Distance (mm)
    4000
  • Power
    DC
  • Input/Output
    Discrete
  • Sensing Mode (Detailed)
    Wide Beam Retroreflective (Non-Polarized)
  • Sensing Mode (General)
    Retroreflective
  • Sensing Beam
    Visible Red LED

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q76E-VP-ZLVC-Q8 on Powermatic Associates is $253.00. Order now.

About the product

Banner Engineering Q76E-VP-ZLVC-Q8 is a photo-electric sensor designed for retro-reflective mode operation with a wide beam. It operates within an ambient air temperature range of -40 to +60 °C and is housed in a thermoplastic casing with a Polymethyl methacrylate (PMMA) lens. This sensor is part of the Q76E series and offers a sensing distance of up to 4 meters. It features a visible red light with a wavelength of 620 nm and can operate in both Light-ON and Dark-ON modes. The Q76E-VP-ZLVC-Q8 is equipped with a 4-pin Euro-style M12 connector for connectivity and has a supply voltage requirement of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. It provides one digital output (PNP transistor; complementary NO/NC) and has a quick response time of 2ms / 0.002 s. The sensor is designed in a rectangular shape and offers a degree of protection rated at IP67 and IP69, ensuring its durability and suitability for various industrial applications.
