Q76E-KP-ZLVC-Q5 Banner Retroreflective Sensors

Q76E-KP-ZLVC-Q5 on Powermatic Associates
Banner
  • Q76E-KP-ZLVC-Q5
  • Q76E-KP-ZLVC-Q5

Part#:Q76E-KP-ZLVC-Q5

Alt. Part#:808858

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

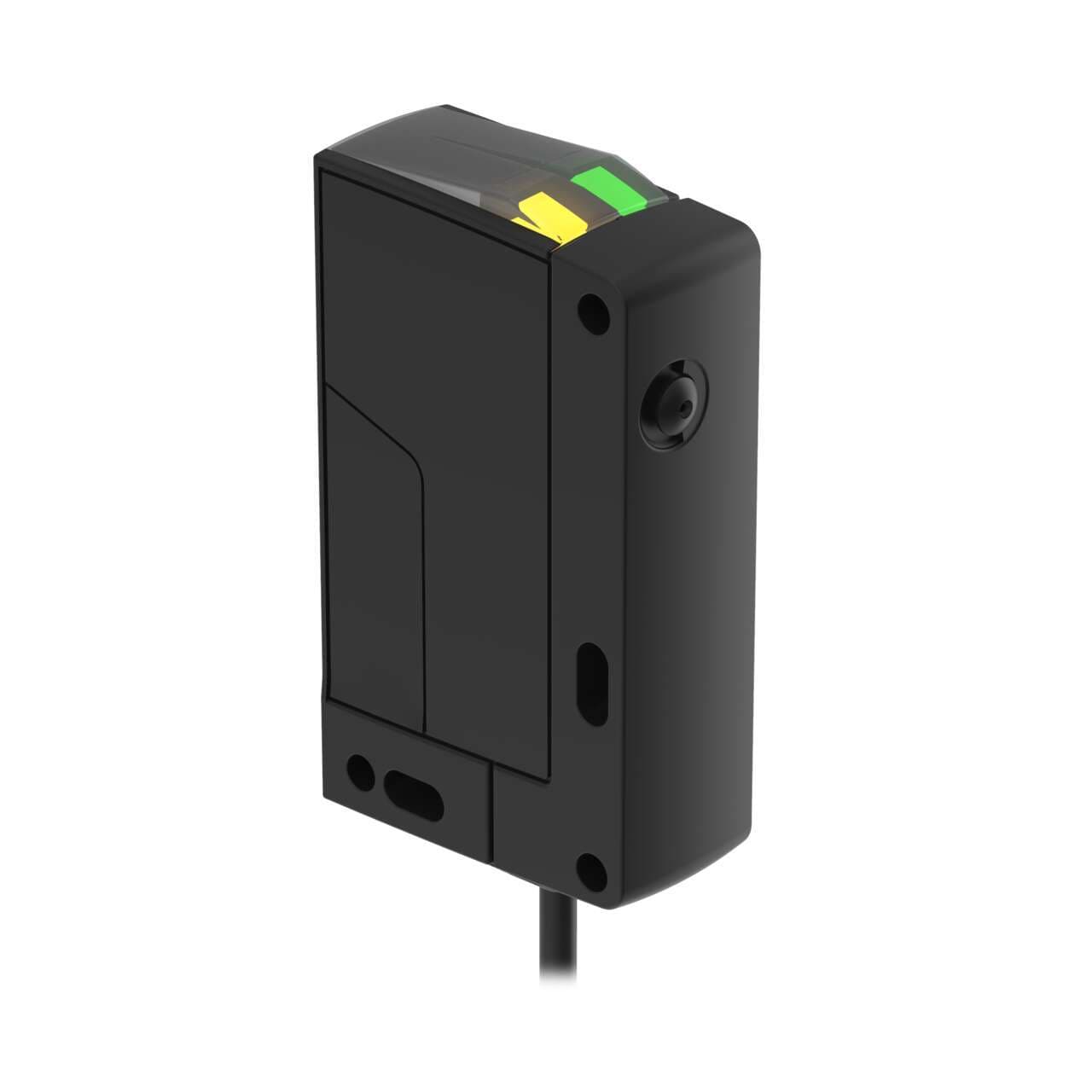

Q76 Expert Wide Beam Non-Polarized Retro Area Detector; Range: 0.4 to 4 m; Input 10-30 V dc; Output: 1 PNP/NPN Light Operate with IO-Link; 1 PNP Dark Operate; 200 mm (7.5 in) M12 Pigtail QD

Product Details

  • Weight
    136.0776 g
  • Country Of Origin
    MY
  • IO Link
    Yes
  • DeviceNet
    No
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Encapsulated
    No
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Clear Object Detection
    Yes
  • Feature: Washdown Rated
    Yes
  • Opposed Mode Emitter/Receiver
    N/A
  • Indicator
    LEDs
  • Barrel Diameter (mm)
    N/A
  • Lens Material
    PMMA
  • Adjustments
    Teach Button
  • NEMA Rating
    N/A
  • Number of Pins
    4
  • Repeatability (µs)
    N/A
  • Delay at Power-up (ms)
    300
  • Special Feature: Water Detection
    No
  • Sensing Beam Wavelength
    620
  • IP Rating
    IP67, IP69
  • Special Feature: Remote Teach
    No
  • Special Feature: Intrinsically Safe
    No
  • Operation
    Light/Dark Operate
  • Output response time (ms)
    2
  • Max Op. Temp. (°C)
    60
  • Power Supply/Supply Voltage
    10-30 V dc
  • Connection
    Pigtail QD
  • Min Op. Temp. (°C)
    -40
  • Quick Disconnect Type
    M12 (Euro)
  • Outputs
    1 Configurable NPN/PNP, 1 PNP
  • Power
    DC
  • Sensing Mode (General)
    Retroreflective
  • Max Sensing Distance (mm)
    4000
  • Housing Style
    Rectangular
  • Primary Housing Material
    Thermoplastic
  • Input/Output
    Discrete & Serial
  • Sensing Beam
    Visible Red LED
  • Sensing Mode (Detailed)
    Wide Beam Retroreflective (Non-Polarized)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q76E-KP-ZLVC-Q5 on Powermatic Associates is $253.00. Order now.

About the product

Banner Engineering Q76E-KP-ZLVC-Q5 is a photo-electric sensor designed for retro-reflective mode operation with a wide beam. It operates within an ambient air temperature range of -40 to +60 °C and is housed in a thermoplastic casing with a Polymethyl methacrylate (PMMA) lens. This sensor is pre-wired with a 7.5" / 200mm pigtail that terminates with a 4-pin Euro-style M12 connector. It belongs to the Q76E series and offers a sensing distance of up to 4 meters. The sensor emits a visible red light with a wavelength of 620 nm and can operate in both Light-ON and Dark-ON modes. It features a single digital output (PNP/NPN transistor) and has a quick response time of 2ms / 0.002 s. The Q76E-KP-ZLVC-Q5 is designed to work with a supply voltage range of 10Vdc to 30Vdc (12Vdc / 24Vdc nom.) and is protected to IP67 and IP69 standards, ensuring its operation in various environmental conditions.
