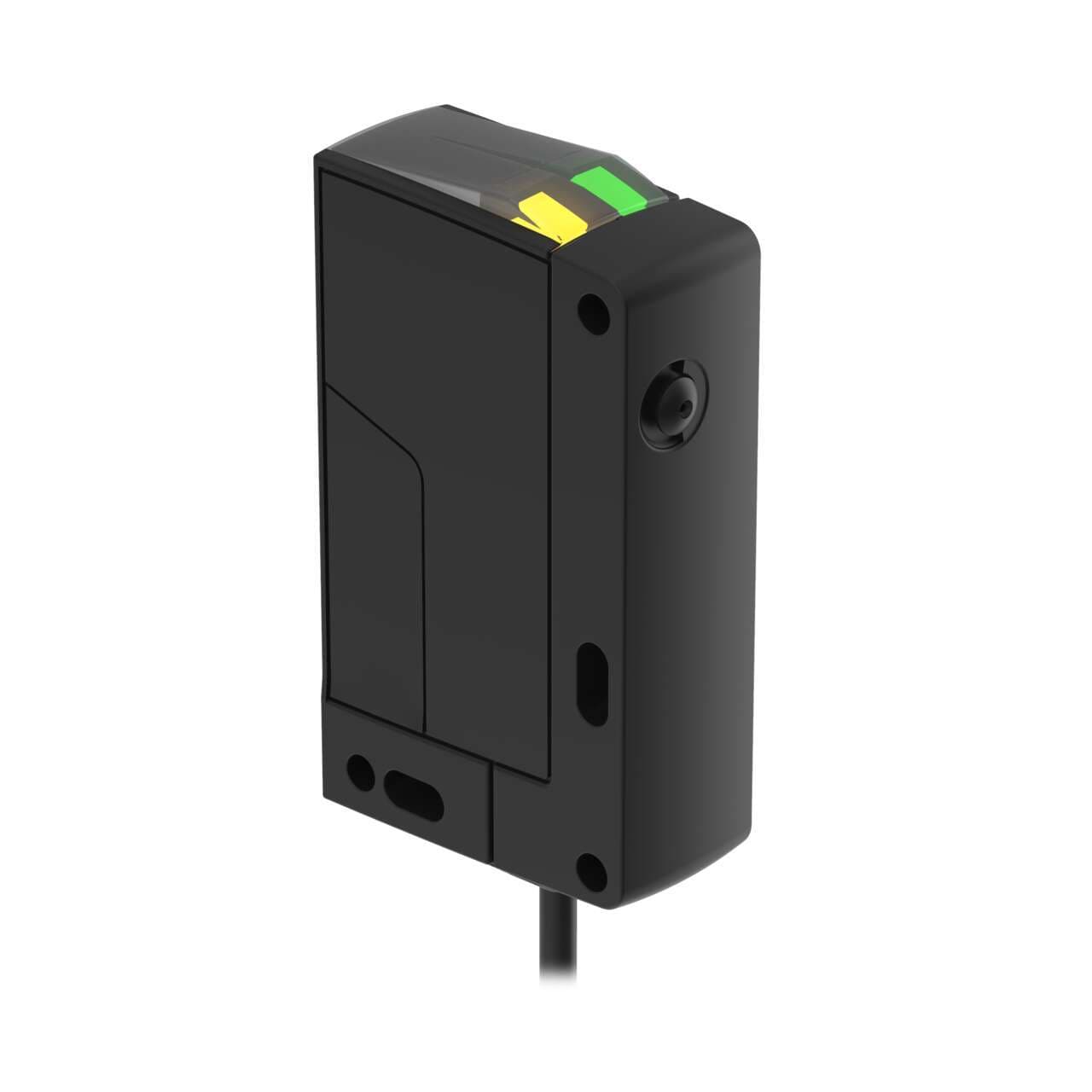

Q76E-VP-ZLVC-2M Banner Retroreflective Sensors

Q76E-VP-ZLVC-2M on Powermatic Associates
Banner
  • Q76E-VP-ZLVC-2M
  • Q76E-VP-ZLVC-2M

Part#:Q76E-VP-ZLVC-2M

Alt. Part#:808857

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

Q76 Expert Wide Beam Non-Polarized Retro Area Detector; Range: 0.4 to 4 m; Input 10-30 V dc; Output: Complementary PNP; 2 m (6.5 ft) Cable

Product Details

  • Weight
    9.07184 g
  • Country Of Origin
    DE
  • Repeatability (µs)
    N/A
  • Lens Material
    PMMA
  • IO Link
    No
  • Feature: Chemical Resistant
    No
  • DeviceNet
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Encapsulated
    No
  • Feature: Clear Object Detection
    Yes
  • Feature: Timing (Hold/Delay)
    No
  • Opposed Mode Emitter/Receiver
    N/A
  • Feature: Washdown Rated
    Yes
  • Indicator
    LEDs
  • Barrel Diameter (mm)
    N/A
  • Adjustments
    Teach Button
  • NEMA Rating
    N/A
  • IP Rating
    IP67, IP69
  • Number of Pins
    4
  • Delay at Power-up (ms)
    300
  • Sensing Beam Wavelength
    620
  • Special Feature: Water Detection
    No
  • Special Feature: Remote Teach
    No
  • Special Feature: Intrinsically Safe
    No
  • Min Op. Temp. (°C)
    -40
  • Operation
    Light/Dark Operate
  • Output response time (ms)
    2
  • Max Op. Temp. (°C)
    60
  • Quick Disconnect Type
    No QD
  • Power Supply/Supply Voltage
    10-30 V dc
  • Connection
    Cable
  • Outputs
    PNP
  • Sensing Mode (Detailed)
    Wide Beam Retroreflective (Non-Polarized)
  • Max Sensing Distance (mm)
    4000
  • Sensing Beam
    Visible Red LED
  • Input/Output
    Discrete
  • Primary Housing Material
    Thermoplastic
  • Housing Style
    Rectangular
  • Sensing Mode (General)
    Retroreflective
  • Power
    DC
  • Cable Length (m)
    2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q76E-VP-ZLVC-2M on Powermatic Associates is $253.00. Order now.

About the product

Banner Engineering Q76E-VP-ZLVC-2M is a photo-electric sensor designed for retro-reflective mode operation with a wide beam. It operates within an ambient air temperature range of -40 to +60 °C and is housed in a thermoplastic casing with a Polymethyl methacrylate (PMMA) lens. This sensor is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for connection. It belongs to the Q76E series and offers a degree of protection rated at IP67 and IP69, making it suitable for challenging environments. The supply voltage required for operation is between 10Vdc and 30Vdc, with nominal voltages of 12Vdc and 24Vdc. Its rectangular shape is designed for easy installation, and it can detect objects up to 4m away. The sensor emits visible red light at a wavelength of 620 nm and can operate in both Light-ON and Dark-ON modes. It features a single digital output (PNP transistor; complementary NO/NC) and boasts a quick response time of 2ms / 0.002 s.
