Q76E-VP-ZLVC-Q5 Banner Retroreflective Sensors

Q76E-VP-ZLVC-Q5 on Powermatic Associates
Banner
  • Q76E-VP-ZLVC-Q5
  • Q76E-VP-ZLVC-Q5

Part#:Q76E-VP-ZLVC-Q5

Alt. Part#:808852

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

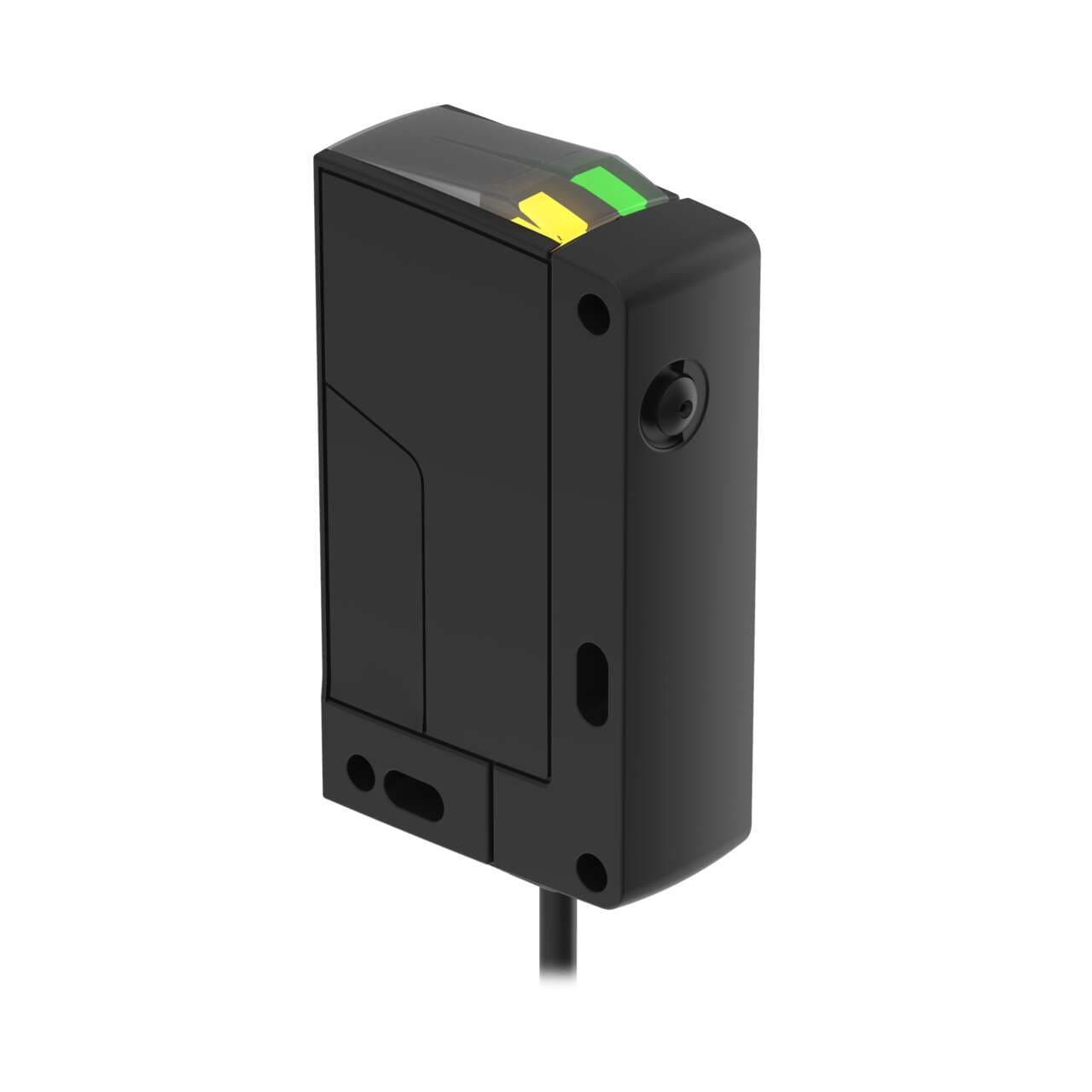

Q76 Expert Wide Beam Non-Polarized Retro Area Detector; Range: 0.4 to 4 m; Input 10-30 V dc; Output: Complementary PNP; 200 mm (7.5 in) M12 Pigtail QD

Product Details

  • Weight
    77.11064 g
  • Country Of Origin
    DE
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Encapsulated
    No
  • Feature: Hazardous Area
    No
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Clear Object Detection
    Yes
  • Feature: Washdown Rated
    Yes
  • Opposed Mode Emitter/Receiver
    N/A
  • Lens Material
    PMMA
  • Indicator
    LEDs
  • NEMA Rating
    N/A
  • Barrel Diameter (mm)
    N/A
  • Adjustments
    Teach Button
  • IP Rating
    IP67, IP69
  • Number of Pins
    4
  • Repeatability (µs)
    N/A
  • Delay at Power-up (ms)
    300
  • Sensing Beam Wavelength
    620
  • Special Feature: Remote Teach
    No
  • Special Feature: Intrinsically Safe
    No
  • Special Feature: Water Detection
    No
  • Output response time (ms)
    2
  • Min Op. Temp. (°C)
    -40
  • Quick Disconnect Type
    M12 (Euro)
  • Power Supply/Supply Voltage
    10-30 V dc
  • Connection
    Pigtail QD
  • Operation
    Light/Dark Operate
  • Max Op. Temp. (°C)
    60
  • Outputs
    PNP
  • Max Sensing Distance (mm)
    4000
  • Input/Output
    Discrete
  • Housing Style
    Rectangular
  • Power
    DC
  • Primary Housing Material
    Thermoplastic
  • Sensing Beam
    Visible Red LED
  • Sensing Mode (Detailed)
    Wide Beam Retroreflective (Non-Polarized)
  • Sensing Mode (General)
    Retroreflective

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q76E-VP-ZLVC-Q5 on Powermatic Associates is $253.00. Order now.

About the product

Banner Engineering Q76E-VP-ZLVC-Q5 is a photo-electric sensor designed for retro-reflective mode operation with a wide beam. It operates within an ambient air temperature range of -40 to +60 degrees Celsius and is housed in a thermoplastic casing with a Polymethyl methacrylate (PMMA) lens. This sensor is pre-wired with a 7.5" / 200mm pigtail terminated with a 4-pin Euro-style M12 connector. It belongs to the Q76E series and offers a degree of protection rated at IP67 and IP69, making it suitable for harsh environmental conditions. The supply voltage required for operation is between 10Vdc and 30Vdc, with nominal voltages of 12Vdc and 24Vdc. Its rectangular shape is designed for easy installation, and it can detect objects up to 4 meters away. The sensor emits a visible red light with a wavelength of 620 nm and can operate in both Light-ON and Dark-ON modes. It features a single digital output (PNP transistor; complementary NO/NC) and boasts a quick response time of 2ms / 0.002 s.
