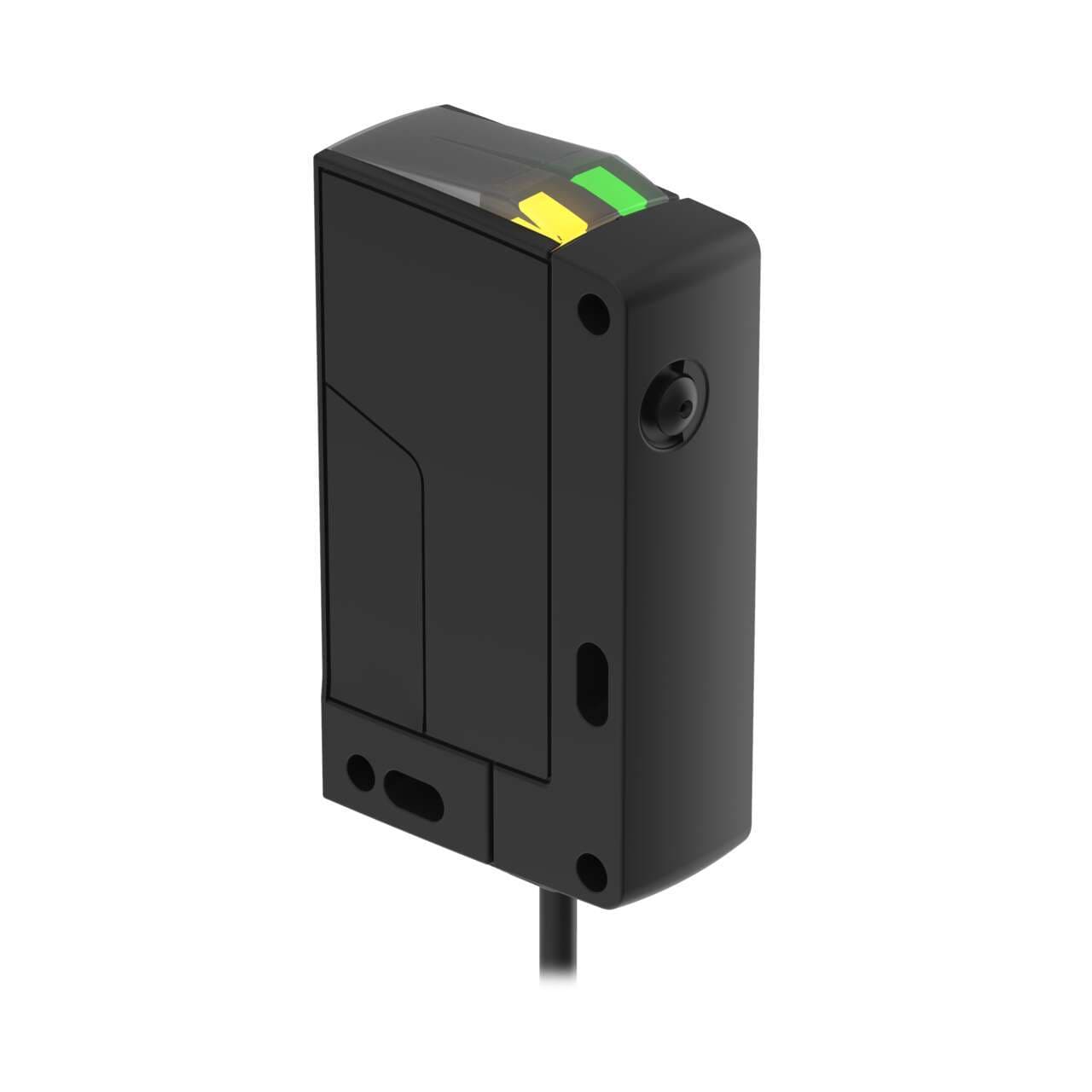

Q76E-VN-ZLVC-Q5 Banner Retroreflective Sensors

Q76E-VN-ZLVC-Q5 on Powermatic Associates
Banner

Part#:Q76E-VN-ZLVC-Q5

Manufacturer:Banner

Alt. Part#:808855

Product Lifecycle:Active

Get a quick Quote!

Q76 Expert Wide Beam Non-Polarized Retro Area Detector; Range: 0.4 to 4 m; Input 10-30 V dc; Output: Complementary NPN; 200 mm (7.5 in) M12 Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Retroreflective Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q76E-VN-ZLVC-Q5 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    63.50288 g
  • Country Of Origin
    DE
  • IO Link
    No
  • Feature: Washdown Rated
    Yes
  • Indicator
    LEDs
  • DeviceNet
    No
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Encapsulated
    No
  • Opposed Mode Emitter/Receiver
    N/A
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Clear Object Detection
    Yes
  • Barrel Diameter (mm)
    N/A
  • IP Rating
    IP67, IP69
  • Adjustments
    Teach Button
  • Lens Material
    PMMA
  • NEMA Rating
    N/A
  • Repeatability (µs)
    N/A
  • Sensing Beam Wavelength
    620
  • Delay at Power-up (ms)
    300
  • Number of Pins
    4
  • Special Feature: Water Detection
    No
  • Special Feature: Intrinsically Safe
    No
  • Special Feature: Remote Teach
    No
  • Output response time (ms)
    2
  • Max Op. Temp. (°C)
    60
  • Operation
    Light/Dark Operate
  • Quick Disconnect Type
    M12 (Euro)
  • Min Op. Temp. (°C)
    -40
  • Connection
    Pigtail QD
  • Power Supply/Supply Voltage
    10-30 V dc
  • Outputs
    NPN
  • Primary Housing Material
    Thermoplastic
  • Max Sensing Distance (mm)
    4000
  • Input/Output
    Discrete
  • Power
    DC
  • Housing Style
    Rectangular
  • Sensing Mode (Detailed)
    Wide Beam Retroreflective (Non-Polarized)
  • Sensing Mode (General)
    Retroreflective
  • Sensing Beam
    Visible Red LED

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Q76E-VN-ZLVC-Q5 Description

Banner Engineering Q76E-VN-ZLVC-Q5 is a photo-electric sensor designed for retro-reflective mode operation with a wide beam. It operates within an ambient air temperature range of -40 to +60 °C and is housed in a thermoplastic casing with a Polymethyl methacrylate (PMMA) lens. This sensor is pre-wired with a 7.5" / 200mm pigtail terminated with a 4-pin Euro-style M12 connector. It belongs to the Q76E series and offers a sensing distance of up to 4 meters. The Q76E-VN-ZLVC-Q5 emits visible red light at a wavelength of 620 nm and can operate in both Light-ON and Dark-ON modes. It features a single digital output (NPN transistor; complementary NO/NC) and has a quick response time of 2ms / 0.002 s. The device is powered by a supply voltage ranging from 10Vdc to 30Vdc (12Vdc / 24Vdc nom.) and is protected to IP67 and IP69 standards, ensuring its operation in various environmental conditions.

Related documents Q76E-VN-ZLVC-Q5 Specs

Q76E-VN-ZLVC-Q5 218394.pdf
