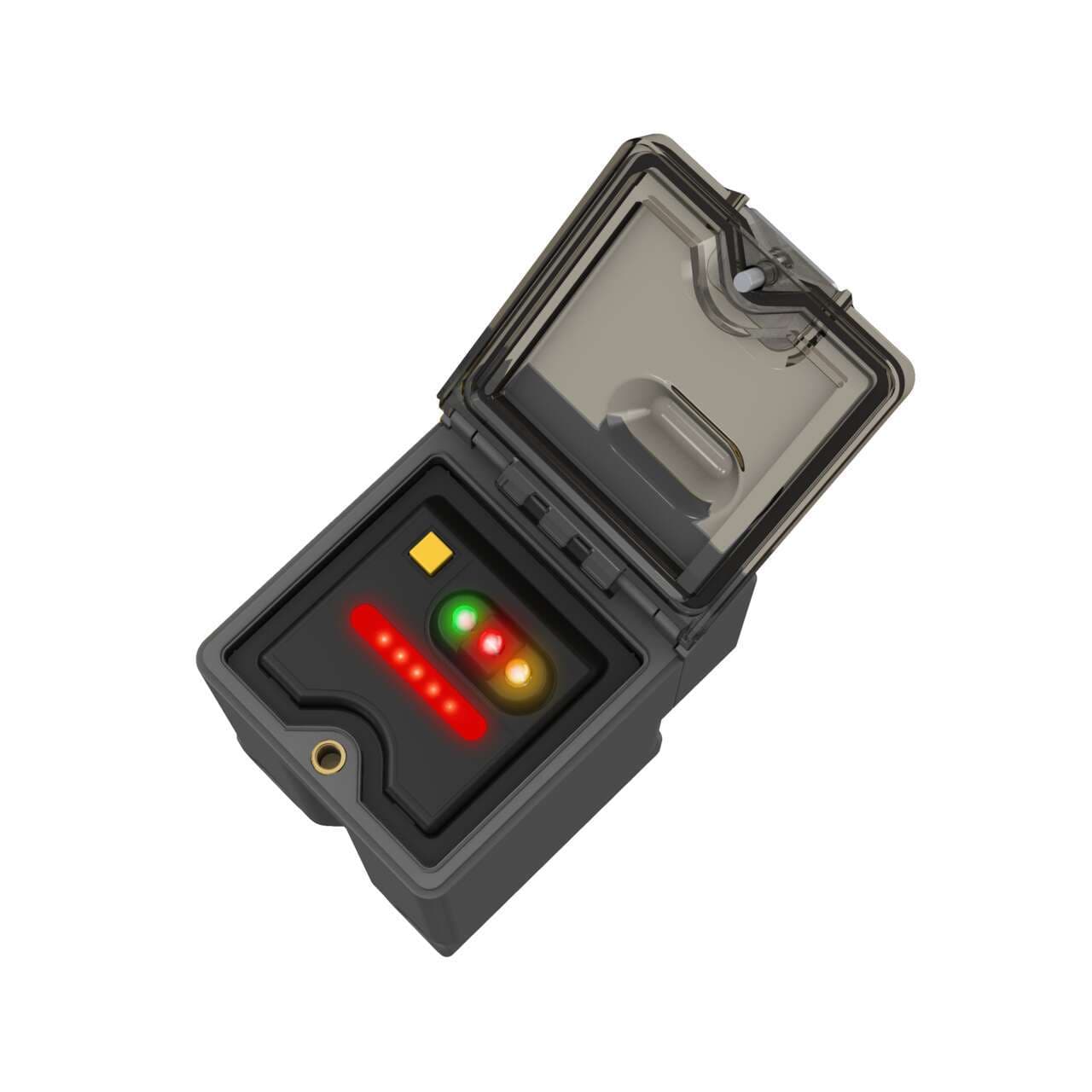

Q45UBB63DA Banner Ultrasonic Sensors

Product Details

• Weight
  352.894576 g
• Country Of Origin
  US
• Profibus
  No
• PROFINET
  No
• Common Ethernet Protocol
  No
• 1-wire Serial Interface
  No
• Wireless
  No
• SSI
  No
• RS-485
  No
• RS-232
  No
• RS-422
  No
• IO Link
  No
• Application: Ultrasonic
  Yes
• Feature: Chemical Resistant
  No
• Feature: Timing (Hold/Delay)
  No
• Feature: Clear Object Detection
  Yes
• Discrete Output Hysteresis (mm)
  5
• Power/Current Consumption (exclusive of load)
  100 mA
• Feature: Remote Teach
  Yes
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
Max Off-state Leakage Current (µA)
25
Ultrasonic Frequency (kHz)
230
Minimum Window Size (mm)
10
Max Op. Relative Humidity Non-Condensing (%)
100
Minimum Response Time (ms)
20
Warm-up Time (minutes)
15
Min Operating Temperature (°C)
-25
Max Operating Temperature (°C)
70
NEMA Rating
NEMA 6P
IP Rating
IP67
Output Protection
Protected against false pulse on power-up and continuous overload or short-circuit of outputs
Discrete (Switched) Outputs
Bipolar (NPN & PNP)
Output Saturation Voltage PNP Outputs
< 1.5 V at 10 mA; < 2.0 V at 150 mA
Max Discrete (Switched) Output (mA)
150
Output Saturation Voltage NPN Outputs
< 1.5 V at 10 mA; < 2.0 V at 150 mA
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Number of Pins
5
Temperature Effect (mm/°C)
0.2% of sensing distance/°C
Adjustments
Teach Button; DIP Switches
Minimum Sensing Distance (mm)
100
Analog Resolution/Discrete Repeatability
+/- 0.1% of measured distance (+/- 0.25 min)
Power Supply
12-24 V dc
Max Sensing Distance (mm)
1400
Quick Disconnect Type
No QD
Connection
Flying Leads
Primary Housing Material
PBT
Indicator
LED(s)
Input/Output
Discrete
Device Type
Sensor
PC Configurable
No
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Time of Flight
Housing Style
Rectangular
Cable Length (m)
2
Power
DC
Sensing Beam
Ultrasonic
Max Measurement Range
>1 m - <=20 m
Main function
Sensor (Distance)
Functions
Versatile ultrasonic distance sensor green LED (power ON) amber LED (output state) red LED (signal) TEACH mode
Digital outputs
1 x digital output (PNP/NPN transistor)
Emission frequency
239kHz
Product series / family name
U-GAGE series
Sensing distance
10cm...1.4m
Thread size
M30
Material
thermoplastic housing
Order code / Manufacturer SKU
44128
Sub-range name
Q45U series
Shape
Rectangular
Connection type
Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
Protection functions
Overload Short-circuit
Design
time-of-flight system
Degree of protection
IP67 NEMA 6P
Compliant with standard(s)
cCSAus CE
Primary brand
Banner Engineering
Supply voltage (DC)
12Vdc-24Vdc
Mounting mode
Threaded mount
Ambient air temperature for operation
-25...+70 °C

Related documents Q45UBB63DA Specs
