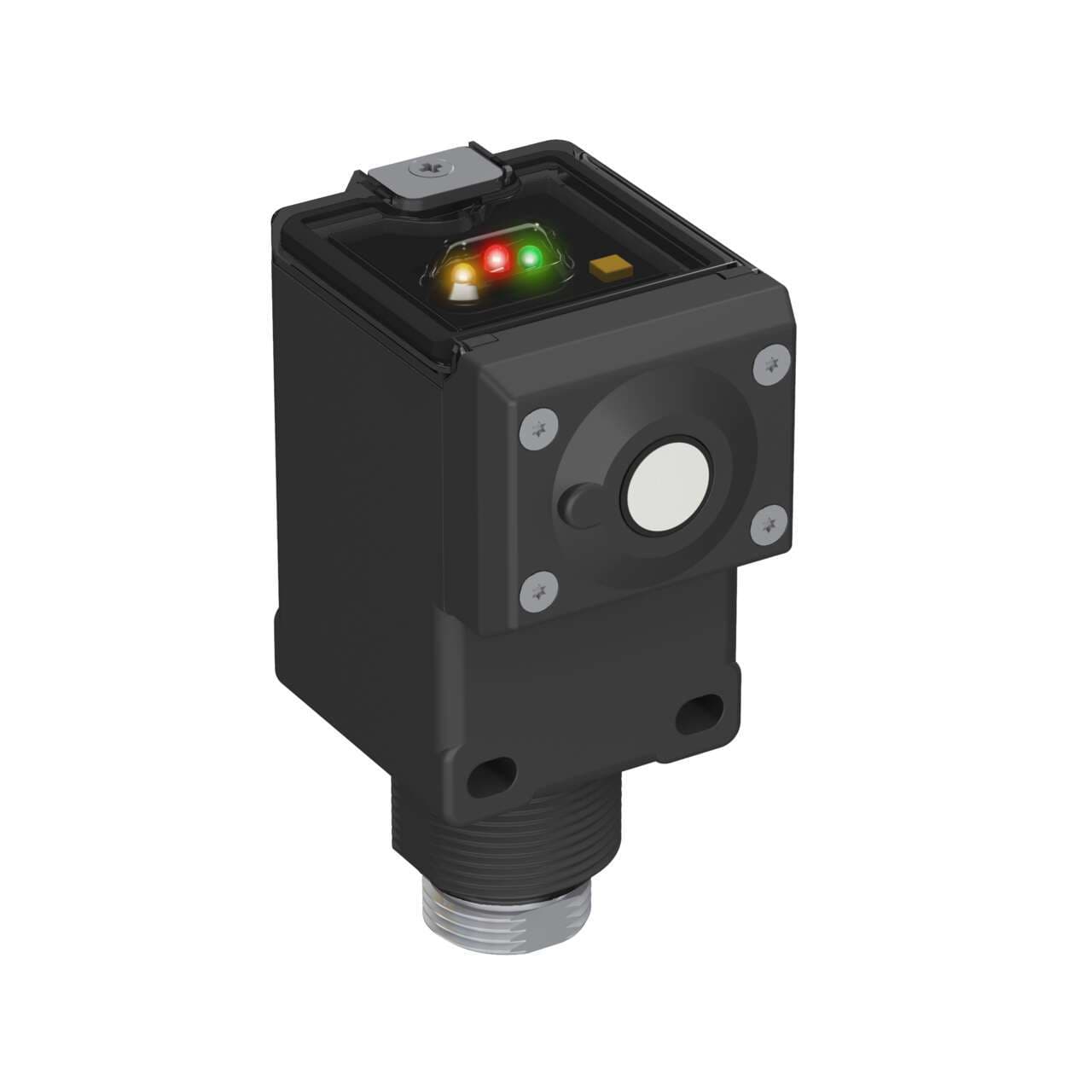

Q45ULIU64ACRQ Banner Ultrasonic Sensors

Product Details

• Weight
  272.1552 g
• Country Of Origin
  US
• Profibus
  No
• SSI
  No
• 1-wire Serial Interface
  No
• PROFINET
  No
• Wireless
  No
• Power/Current Consumption (exclusive of load)
  100 mA
• RS-485
  No
• RS-422
  No
• RS-232
  No
• IO Link
  No
• Application: Ultrasonic
  Yes
• Common Ethernet Protocol
  No
• Feature: Timing (Hold/Delay)
  No
• Feature: Chemical Resistant
  No
• Feature: Clear Object Detection
  Yes
• Feature: Remote Teach
  Yes
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• Ultrasonic Frequency (kHz)
  230
Minimum Window Size (mm)
10
Analog Linearity (mm)
1% of full scale
Minimum Response Time (ms)
40
Max Op. Relative Humidity Non-Condensing (%)
100
Warm-up Time (minutes)
15
Min Operating Temperature (°C)
-25
Max Operating Temperature (°C)
70
NEMA Rating
NEMA 6P
IP Rating
IP67
Output Protection
Protected against false pulse on power-up and continuous overload or short-circuit of outputs
Analog Voltage Output Rating
10mA Max
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Analog Current Output Rating
1 to 500 Ω impedance
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Number of Pins
5
Minimum Sensing Distance (mm)
100
Adjustments
Teach Button; DIP Switches
Analog Resolution/Discrete Repeatability
+/- 0.1% of measured distance (+/- 0.25 min)
Power Supply
15-24 V dc
Temperature Effect (mm/°C)
0.05% of sensing distance/°C
Max Sensing Distance (mm)
1400
Connection
Integral QD
Analog Output Configuration
0-10 V dc or 4-20 mA
Quick Disconnect Type
7/8 in. (Mini)
Input/Output
Analog
Indicator
LED(s)
Sensing Beam
Ultrasonic
Device Type
Sensor
Primary Housing Material
PBT
PC Configurable
No
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Time of Flight
Housing Style
Rectangular
Power
DC
Max Measurement Range
>1 m - <=20 m
Sub-range name
Q45U series
Shape
Rectangular
Primary brand
Banner Engineering
Supply voltage (DC)
15Vdc-24Vdc
Design
time-of-flight system
Sensing distance
10cm...1.4m
Material
thermoplastic housing
Main function
Sensor (Distance)
Connection type
Pre-equipped with 5-pin 7/8" Mini connector
Protection functions
Overload Short-circuit
Product series / family name
U-GAGE series
Thread size
M30
Degree of protection
IP67 NEMA 6P
Functions
Versatile ultrasonic distance sensor/transmitter green LED (power ON) amber LED (output state) red LED (signal) TEACH mode
Mounting mode
Threaded mount
Compliant with standard(s)
cCSAus CE
Analog outputs
1 x analog output (0-10Vdc / 4-20mA)
Ambient air temperature for operation
-25...+70 °C
Emission frequency
239kHz
Order code / Manufacturer SKU
47553
