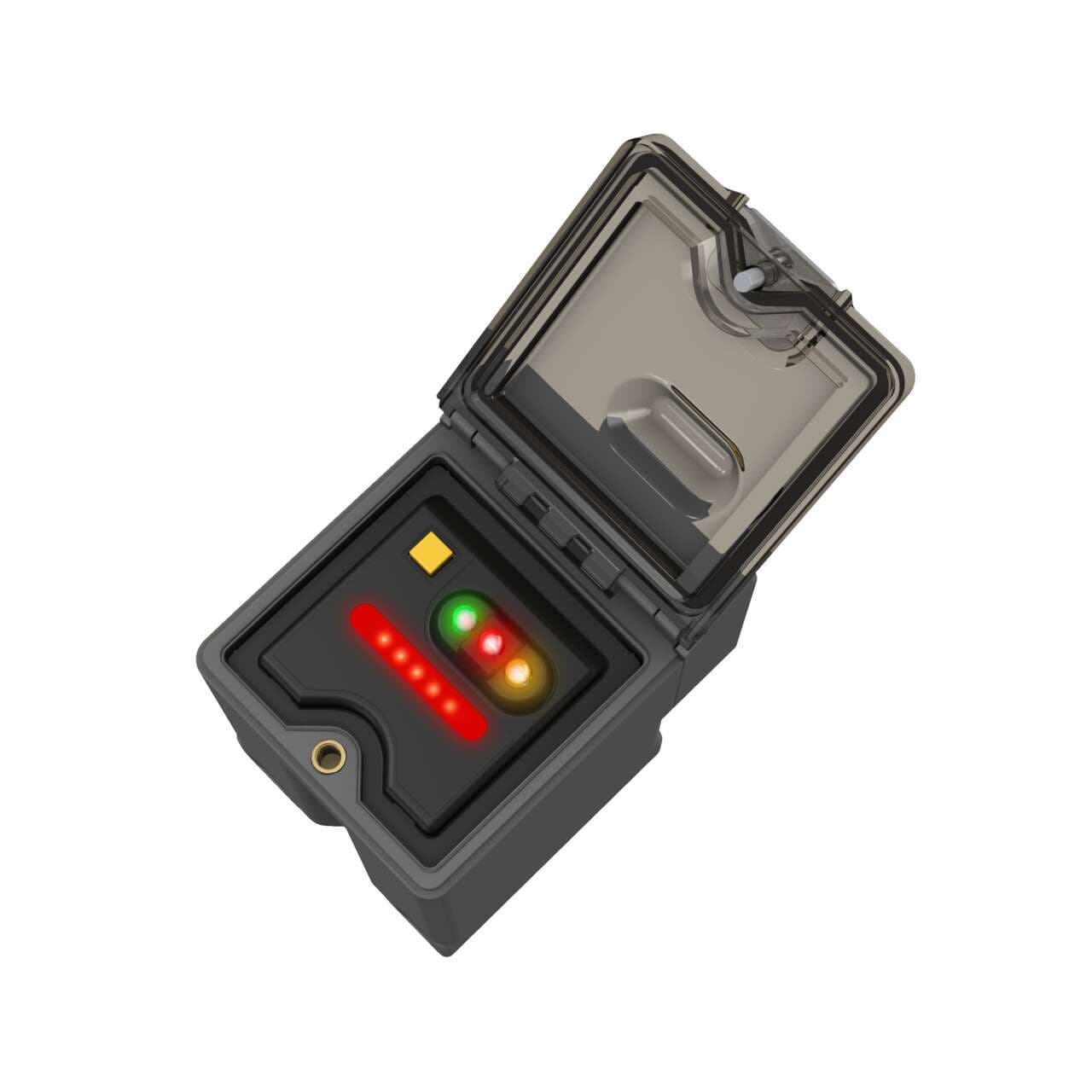

Q45UBB63DACQ6 Banner Ultrasonic Sensors

Banner Q45UBB63DACQ6 Discrete Q45U Series: Proximity Mode; Range: 100 mm - 1.4 m; Input: 12-24 V dc; Output: Bipolar: 1 NPN; 1 PNP; M12 Integral QD
Banner

Part#:Q45UBB63DACQ6

Manufacturer:Banner

Alt. Part#:44134

Product Lifecycle:Active

Get a quick Quote!

Discrete Q45U Series: Proximity Mode; Range: 100 mm - 1.4 m; Input: 12-24 V dc; Output: Bipolar: 1 NPN; 1 PNP; M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Ultrasonic Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q45UBB63DACQ6 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    272.1552 g
  • Country Of Origin
    US
  • Max Op. Relative Humidity Non-Condensing (%)
    100
  • NEMA Rating
    NEMA 6P
  • Max Operating Temperature (°C)
    70
  • Max Discrete (Switched) Output (mA)
    150
  • Discrete (Switched) Outputs
    Bipolar (NPN & PNP)
  • Mechanical Shock
    IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
  • Number of Pins
    5
  • Output Saturation Voltage NPN Outputs
    < 1.5 V at 10 mA; < 2.0 V at 150 mA
  • Output Saturation Voltage PNP Outputs
    < 1.5 V at 10 mA; < 2.0 V at 150 mA
  • Vibration
    MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • Input/Output
    Discrete
  • Minimum Sensing Distance (mm)
    100
  • Adjustments
    Teach Button; DIP Switches
  • Quick Disconnect Type
    M12 (Euro)
  • Power Supply
    12-24 V dc
  • Max Sensing Distance (mm)
    1400
  • Indicator
    LED(s)
  • Housing Style
    Rectangular
  • PC Configurable
    No
  • Power
    DC
  • Primary Housing Material
    PBT
  • Sensing Mode (General)
    Proximity
  • Max Measurement Range
    >1 m - <=20 m
  • Device Type
    Sensor
  • Profibus
    No
  • 1-wire Serial Interface
    No
  • Wireless
    No
  • SSI
    No
  • RS-232
    No
  • PROFINET
    No
  • IO Link
    No
  • RS-485
    No
  • RS-422
    No
  • Common Ethernet Protocol
    No
  • Feature: Chemical Resistant
    No
  • Feature: Timing (Hold/Delay)
    No
  • Application: Ultrasonic
    Yes
  • Feature: Clear Object Detection
    Yes
  • Feature: Remote Teach
    Yes
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • Power/Current Consumption (exclusive of load)
    100 mA
  • Max Off-state Leakage Current (µA)
    25
  • Discrete Output Hysteresis (mm)
    5
  • Minimum Response Time (ms)
    20
  • Ultrasonic Frequency (kHz)
    230
  • Minimum Window Size (mm)
    10
  • Warm-up Time (minutes)
    15
  • Min Operating Temperature (°C)
    -25
  • IP Rating
    IP67
  • Output Protection
    Protected against false pulse on power-up and continuous overload or short-circuit of outputs
  • Temperature Effect (mm/°C)
    0.05% of sensing distance/°C
  • Analog Resolution/Discrete Repeatability
    +/- 0.1% of measured distance (+/- 0.25 min)
  • Connection
    Integral QD
  • Sensing Mode (Detailed)
    Time of Flight
  • Sensing Beam
    Ultrasonic
  • Product series / family name
    U-GAGE series
  • Functions
    Versatile ultrasonic distance sensor green LED (power ON) amber LED (output state) red LED (signal) TEACH mode
  • Shape
    Rectangular
  • Digital outputs
    1 x digital output (PNP/NPN transistor)
  • Degree of protection
    IP67 NEMA 6P
  • Main function
    Sensor (Distance)
  • Supply voltage (DC)
    12Vdc-24Vdc
  • Thread size
    M30
  • Material
    thermoplastic housing
  • Compliant with standard(s)
    cCSAus CE
  • Sensing distance
    10cm...1.4m
  • Mounting mode
    Threaded mount
  • Ambient air temperature for operation
    -25...+70 °C
  • Emission frequency
    239kHz
  • Primary brand
    Banner Engineering
  • Connection type
    Pre-equipped with 5-pin Euro-style M12 connector
  • Protection functions
    Overload Short-circuit
  • Order code / Manufacturer SKU
    44134
  • Sub-range name
    Q45U series
  • Design
    time-of-flight system

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

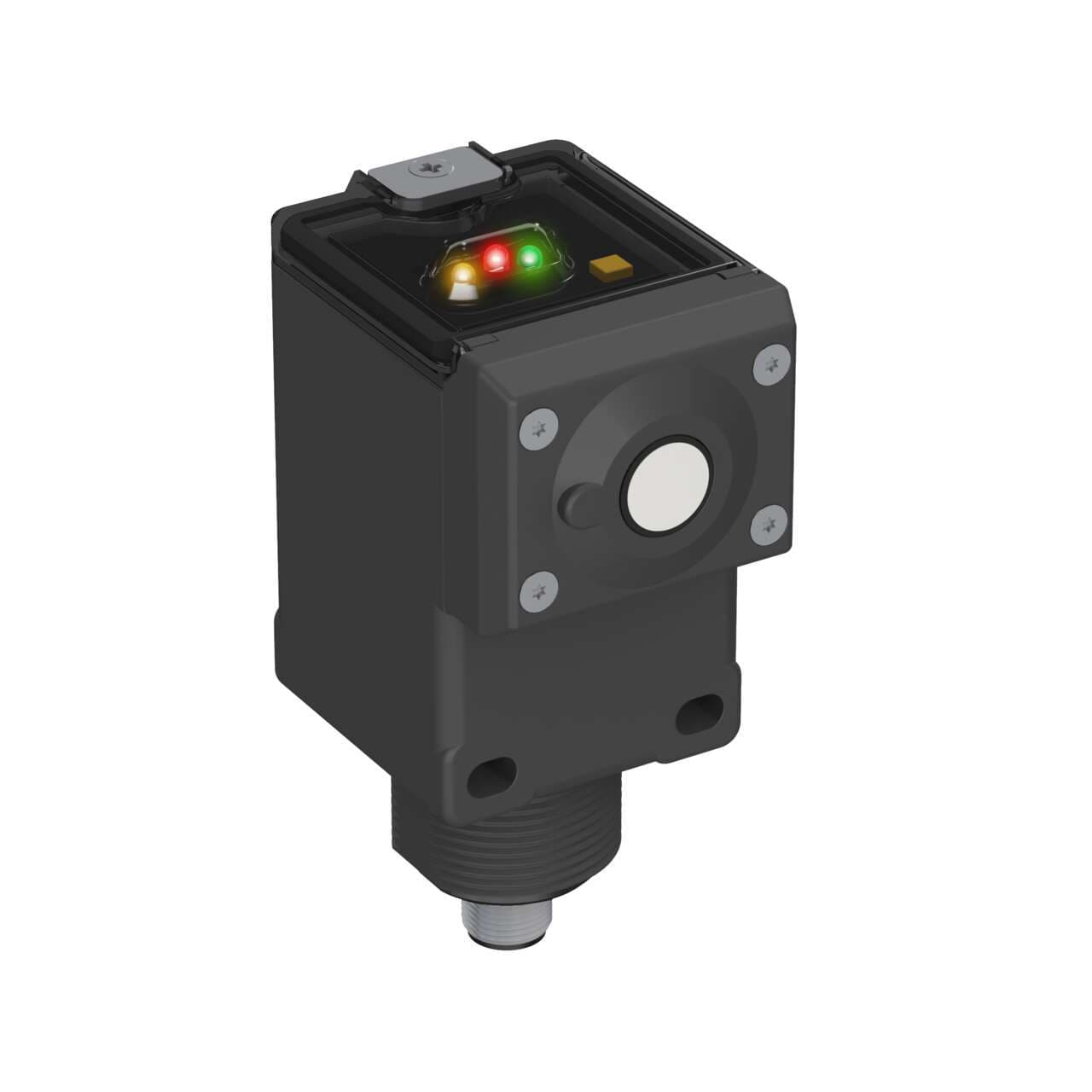

Q45UBB63DACQ6 Description

Banner Engineering Q45UBB63DACQ6 is an ultrasonic distance sensor belonging to the Q45U series, designed with a versatile functionality for various applications. It features a time-of-flight system with TEACH mode for precise distance measurement and is equipped with a 5-pin Euro-style M12 connector for connectivity. This sensor operates within an ambient air temperature range of -25 to +70°C and is mounted using an M30 threaded mount. The Q45UBB63DACQ6 is housed in a thermoplastic material, ensuring durability, and has a rectangular shape. It offers a sensing distance range from 10cm to 1.4m and includes a digital output (PNP/NPN transistor) for signal processing. The sensor operates on a supply voltage of 12Vdc-24Vdc and has a transmission frequency of 239kHz. It is protected against overload and short-circuit conditions and is rated with a degree of protection of IP67 NEMA 6P, making it suitable for challenging environments.
