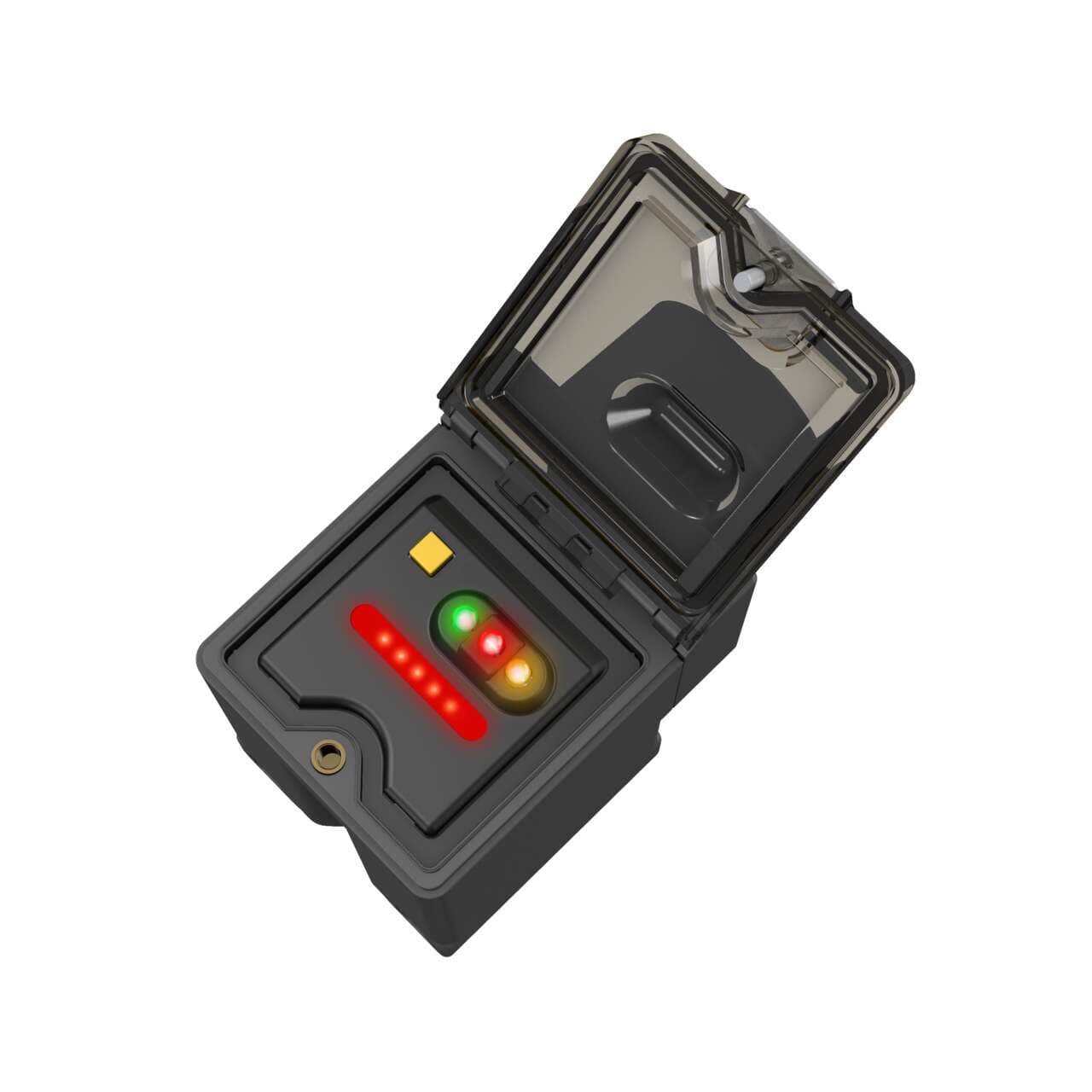

Q45UBB63BCQ Banner Ultrasonic Sensors

Product Details

• Weight
  299.37072 g
• Country Of Origin
  US
• 1-wire Serial Interface
  No
• RS-422
  No
• Common Ethernet Protocol
  No
• Wireless
  No
• RS-485
  No
• SSI
  No
• Profibus
  No
• RS-232
  No
• IO Link
  No
• PROFINET
  No
• Application: Ultrasonic
  Yes
• Feature: Pump-in/ Pump-out
  Yes
• Feature: Chemical Resistant
  No
• Feature: Remote Teach
  Yes
• Feature: Clear Object Detection
  Yes
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• Feature: Timing (Hold/Delay)
  No
• Power/Current Consumption (exclusive of load)
  100 mA
Max Off-state Leakage Current (µA)
25
Minimum Window Size (mm)
25
Ultrasonic Frequency (kHz)
128
Discrete Output Hysteresis (mm)
10
Minimum Response Time (ms)
40
Warm-up Time (minutes)
15
Max Op. Relative Humidity Non-Condensing (%)
100
Min Operating Temperature (°C)
-25
Max Operating Temperature (°C)
70
NEMA Rating
NEMA 6P
Discrete (Switched) Outputs
Bipolar (NPN & PNP)
IP Rating
IP67
Output Protection
Protected against false pulse on power-up and continuous overload or short-circuit of outputs
Max Discrete (Switched) Output (mA)
150
Output Saturation Voltage PNP Outputs
< 1.5 V at 10 mA; < 2.0 V at 150 mA
Output Saturation Voltage NPN Outputs
< 1.5 V at 10 mA; < 2.0 V at 150 mA
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Number of Pins
5
Temperature Effect (mm/°C)
0.05% of sensing distance/°C
Adjustments
Teach Button; DIP Switches
Power Supply
12-24 V dc
Max Sensing Distance (mm)
3000
Minimum Sensing Distance (mm)
250
Analog Resolution/Discrete Repeatability
+/- 0.1% of measured distance (+/- 0.25 min)
Quick Disconnect Type
7/8 in. (Mini)
Connection
Integral QD
Indicator
LED(s)
Input/Output
Discrete
Primary Housing Material
PBT
Device Type
Sensor
Housing Style
Rectangular
Sensing Mode (Detailed)
Time of Flight
Sensing Mode (General)
Proximity
Sensing Beam
Ultrasonic
PC Configurable
No
Power
DC
Max Measurement Range
>1 m - <=20 m
Sub-range name
Q45U series
Thread size
M30
Digital outputs
1 x digital output (PNP/NPN transistor)
Primary brand
Banner Engineering
Functions
Versatile ultrasonic distance sensor green LED (power ON) amber LED (output state) red LED (signal) TEACH mode
Connection type
Pre-equipped with 5-pin 7/8" Mini connector
Degree of protection
IP67 NEMA 6P
Product series / family name
U-GAGE series
Supply voltage (DC)
12Vdc-24Vdc
Main function
Sensor (Distance)
Sensing distance
10cm...3m
Mounting mode
Threaded mount
Compliant with standard(s)
cCSAus CE
Order code / Manufacturer SKU
46362
Design
time-of-flight system
Material
thermoplastic housing
Shape
Rectangular
Ambient air temperature for operation
-25...+70 °C
Protection functions
Overload Short-circuit
Emission frequency
128kHz
