Q45UBB63BC Banner Ultrasonic Sensors

Q45UBB63BC on Powermatic Associates
Banner
  • Q45UBB63BC
  • Q45UBB63BC

Part#:Q45UBB63BC

Alt. Part#:46360

Manufacturer:Banner

Category:Ultrasonic Sensors

Product Lifecycle:Active

Product description

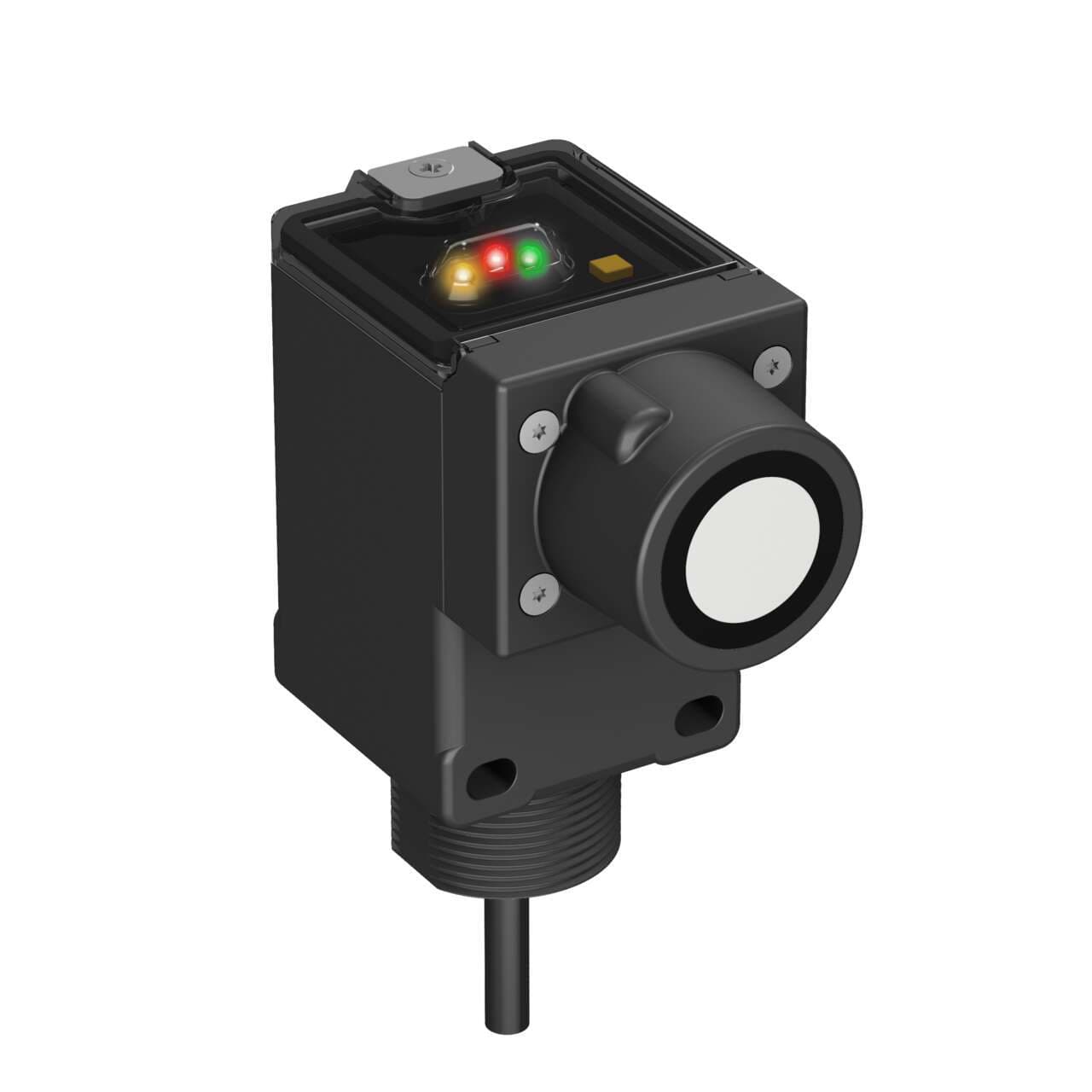

Discrete Q45U Series: Proximity Mode; Range: 250 mm - 3 m; Input: 12-24 V dc; Output: Bipolar: 1 NPN; 1 PNP; 2 m (6.5 ft) Cable

Product Details

  • Weight
    381.01728 g
  • Country Of Origin
    US
  • Profibus
    No
  • 1-wire Serial Interface
    No
  • Wireless
    No
  • SSI
    No
  • RS-485
    No
  • RS-232
    No
  • RS-422
    No
  • PROFINET
    No
  • IO Link
    No
  • Common Ethernet Protocol
    No
  • Application: Ultrasonic
    Yes
  • Feature: Chemical Resistant
    No
  • Feature: Pump-in/ Pump-out
    Yes
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Remote Teach
    Yes
  • Feature: Clear Object Detection
    Yes
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • Power/Current Consumption (exclusive of load)
    100 mA
  • Discrete Output Hysteresis (mm)
    10
  • Max Off-state Leakage Current (µA)
    25
  • Ultrasonic Frequency (kHz)
    128
  • Minimum Window Size (mm)
    25
  • Warm-up Time (minutes)
    15
  • Minimum Response Time (ms)
    40
  • Max Op. Relative Humidity Non-Condensing (%)
    100
  • Output Saturation Voltage NPN Outputs
    < 1.5 V at 10 mA; < 2.0 V at 150 mA
  • Vibration
    MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • Min Operating Temperature (°C)
    -25
  • Max Operating Temperature (°C)
    70
  • NEMA Rating
    NEMA 6P
  • Output Protection
    Protected against false pulse on power-up and continuous overload or short-circuit of outputs
  • IP Rating
    IP67
  • Discrete (Switched) Outputs
    Bipolar (NPN & PNP)
  • Max Discrete (Switched) Output (mA)
    150
  • Output Saturation Voltage PNP Outputs
    < 1.5 V at 10 mA; < 2.0 V at 150 mA
  • Temperature Effect (mm/°C)
    0.05% of sensing distance/°C
  • Mechanical Shock
    IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
  • Number of Pins
    5
  • Adjustments
    Teach Button; DIP Switches
  • Power Supply
    12-24 V dc
  • Max Sensing Distance (mm)
    3000
  • Minimum Sensing Distance (mm)
    250
  • Analog Resolution/Discrete Repeatability
    +/- 0.1% of measured distance (+/- 0.25 min)
  • Input/Output
    Discrete
  • Connection
    Flying Leads
  • Indicator
    LED(s)
  • Primary Housing Material
    PBT
  • Quick Disconnect Type
    No QD
  • Power
    DC
  • Device Type
    Sensor
  • Sensing Mode (General)
    Proximity
  • Housing Style
    Rectangular
  • Sensing Mode (Detailed)
    Time of Flight
  • Cable Length (m)
    2
  • PC Configurable
    No
  • Max Measurement Range
    >1 m - <=20 m
  • Sensing Beam
    Ultrasonic
  • Main function
    Sensor (Distance)
  • Thread size
    M30
  • Sub-range name
    Q45U series
  • Shape
    Rectangular
  • Primary brand
    Banner Engineering
  • Supply voltage (DC)
    12Vdc-24Vdc
  • Product series / family name
    U-GAGE series
  • Functions
    Versatile ultrasonic distance sensor green LED (power ON) amber LED (output state) red LED (signal) TEACH mode
  • Compliant with standard(s)
    cCSAus CE
  • Emission frequency
    128kHz
  • Sensing distance
    10cm...3m
  • Mounting mode
    Threaded mount
  • Ambient air temperature for operation
    -25...+70 °C
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Degree of protection
    IP67 NEMA 6P
  • Protection functions
    Overload Short-circuit
  • Material
    thermoplastic housing
  • Order code / Manufacturer SKU
    46360
  • Design
    time-of-flight system
  • Digital outputs
    1 x digital output (PNP/NPN transistor)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q45UBB63BC on Powermatic Associates is $616.00. Order now.


About the product

Banner Engineering Q45UBB63BC is an ultrasonic distance sensor belonging to the Q45U series. It features a versatile ultrasonic distance sensing capability with a time-of-flight system and TEACH mode for easy setup. This sensor is designed with an M30 threaded mount for secure installation and comes pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads for convenient connection. It operates within an ambient air temperature range of -25 to +70°C and is housed in a thermoplastic material, ensuring durability. The Q45UBB63BC operates on a supply voltage of 12Vdc-24Vdc and has a rectangular shape. It is capable of sensing distances from 25cm to 3m and includes 1 x digital output (PNP/NPN transistor) for signal processing. This sensor operates at a frequency of 128kHz and offers protection functions against overload and short-circuit conditions. It is rated with a degree of protection of IP67 NEMA 6P, indicating a high level of protection against dust and water ingress.
