Q45UBB63DAC Banner Ultrasonic Sensors

Banner Q45UBB63DAC Discrete Q45U Series: Proximity Mode; Range: 100 mm - 1.4 m; Input: 12-24 V dc; Output: Bipolar: 1 NPN; 1 PNP; 2 m (6.5 ft) Cable
Banner

Part#:Q45UBB63DAC

Manufacturer:Banner

Alt. Part#:44132

Product Lifecycle:Active

Get a quick Quote!

Discrete Q45U Series: Proximity Mode; Range: 100 mm - 1.4 m; Input: 12-24 V dc; Output: Bipolar: 1 NPN; 1 PNP; 2 m (6.5 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Ultrasonic Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q45UBB63DAC Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    344.72992 g
  • Country Of Origin
    US
  • RS-422
    No
  • PROFINET
    No
  • Profibus
    No
  • SSI
    No
  • Wireless
    No
  • 1-wire Serial Interface
    No
  • RS-485
    No
  • RS-232
    No
  • Feature: Timing (Hold/Delay)
    No
  • IO Link
    No
  • Application: Ultrasonic
    Yes
  • Common Ethernet Protocol
    No
  • Feature: Chemical Resistant
    No
  • Feature: Clear Object Detection
    Yes
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • Feature: Remote Teach
    Yes
  • Power/Current Consumption (exclusive of load)
    100 mA
  • Max Off-state Leakage Current (µA)
    25
  • Ultrasonic Frequency (kHz)
    230
  • Discrete Output Hysteresis (mm)
    5
  • Minimum Window Size (mm)
    10
  • Minimum Response Time (ms)
    20
  • Warm-up Time (minutes)
    15
  • Max Op. Relative Humidity Non-Condensing (%)
    100
  • Min Operating Temperature (°C)
    -25
  • Max Operating Temperature (°C)
    70
  • NEMA Rating
    NEMA 6P
  • IP Rating
    IP67
  • Output Protection
    Protected against false pulse on power-up and continuous overload or short-circuit of outputs
  • Discrete (Switched) Outputs
    Bipolar (NPN & PNP)
  • Max Discrete (Switched) Output (mA)
    150
  • Output Saturation Voltage PNP Outputs
    < 1.5 V at 10 mA; < 2.0 V at 150 mA
  • Output Saturation Voltage NPN Outputs
    < 1.5 V at 10 mA; < 2.0 V at 150 mA
  • Mechanical Shock
    IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
  • Vibration
    MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • Number of Pins
    5
  • Temperature Effect (mm/°C)
    0.05% of sensing distance/°C
  • Analog Resolution/Discrete Repeatability
    +/- 0.1% of measured distance (+/- 0.25 min)
  • Quick Disconnect Type
    No QD
  • Adjustments
    Teach Button; DIP Switches
  • Power Supply
    12-24 V dc
  • Minimum Sensing Distance (mm)
    100
  • Max Sensing Distance (mm)
    1400
  • Connection
    Flying Leads
  • Indicator
    LED(s)
  • Input/Output
    Discrete
  • Primary Housing Material
    PBT
  • PC Configurable
    No
  • Housing Style
    Rectangular
  • Sensing Mode (Detailed)
    Time of Flight
  • Sensing Mode (General)
    Proximity
  • Device Type
    Sensor
  • Power
    DC
  • Cable Length (m)
    2
  • Max Measurement Range
    >1 m - <=20 m
  • Sensing Beam
    Ultrasonic
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Material
    thermoplastic housing
  • Emission frequency
    239kHz
  • Main function
    Sensor (Distance)
  • Functions

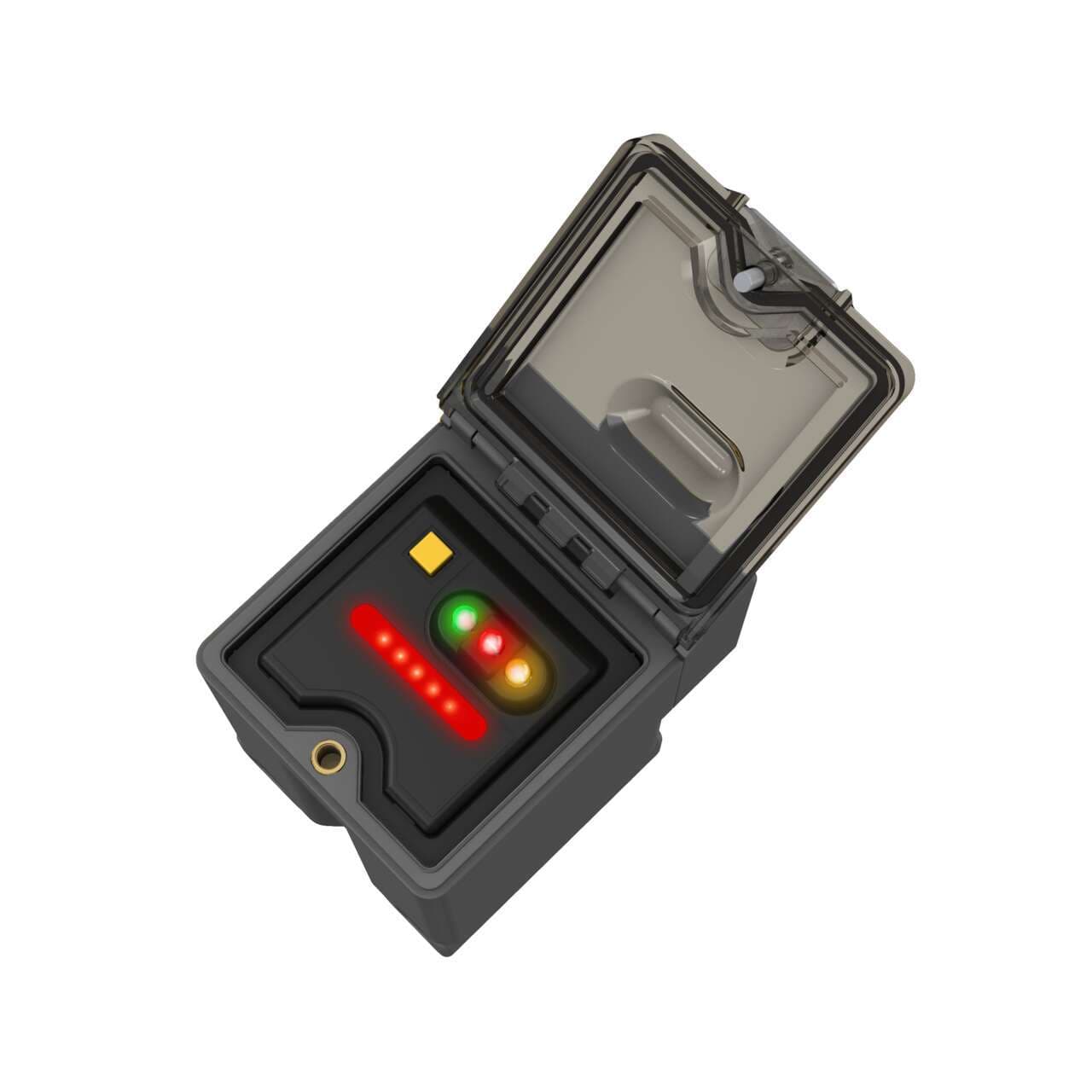

    Versatile ultrasonic distance sensor green LED (power ON) amber LED (output state) red LED (signal) TEACH mode
  • Mounting mode
    Threaded mount
  • Order code / Manufacturer SKU
    44132
  • Sub-range name
    Q45U series
  • Design
    time-of-flight system
  • Shape
    Rectangular
  • Ambient air temperature for operation
    -25...+70 °C
  • Product series / family name
    U-GAGE series
  • Sensing distance
    10cm...1.4m
  • Digital outputs
    1 x digital output (PNP/NPN transistor)
  • Protection functions
    Overload Short-circuit
  • Primary brand
    Banner Engineering
  • Supply voltage (DC)
    12Vdc-24Vdc
  • Thread size
    M30
  • Degree of protection
    IP67 NEMA 6P
  • Compliant with standard(s)
    cCSAus CE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


Q45UBB63DAC Description

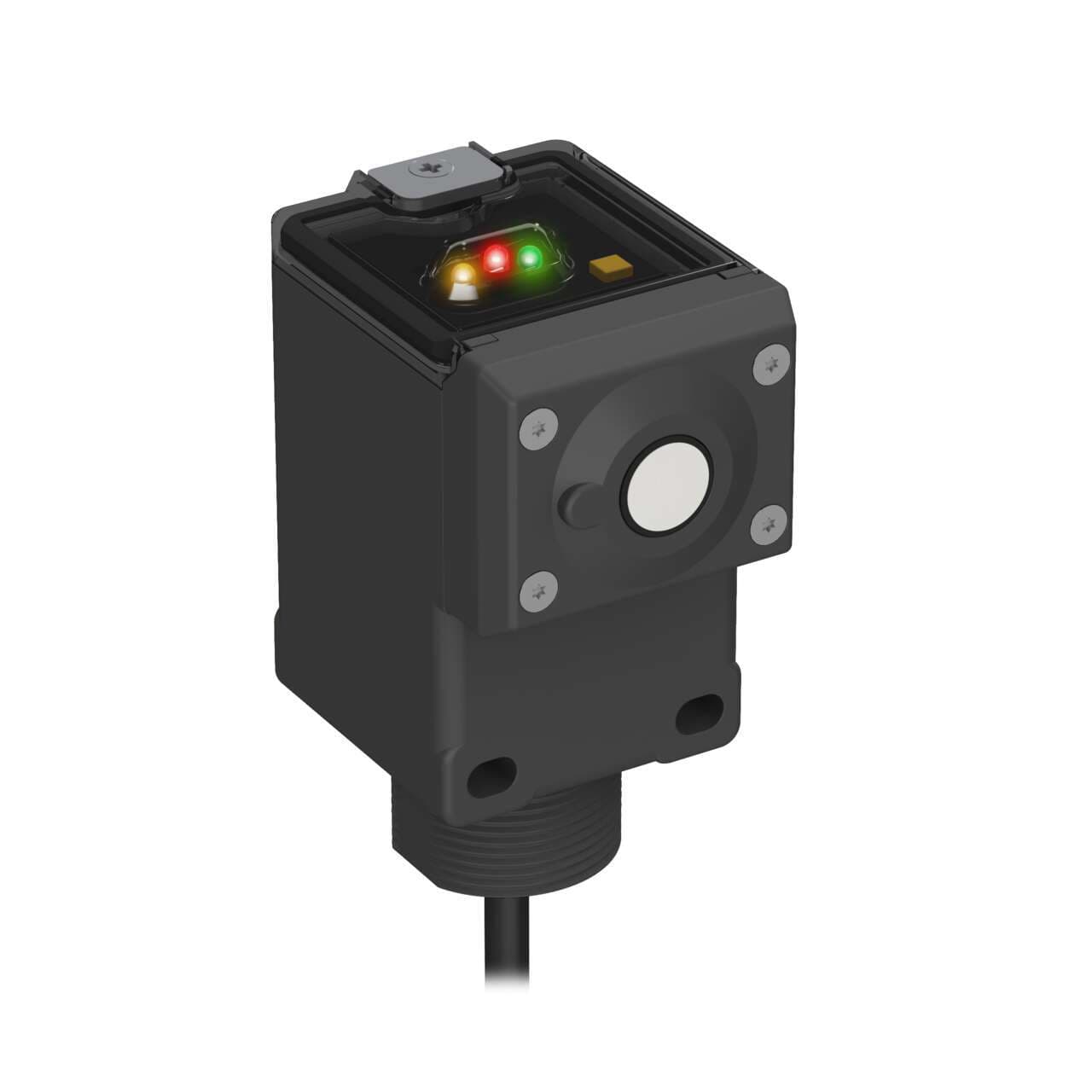

Banner Engineering Q45UBB63DAC is an ultrasonic distance sensor belonging to the Q45U series. It features a versatile design with a time-of-flight system and TEACH mode for operation. This sensor is equipped with an M30 threaded mount for installation and is designed to operate within an ambient air temperature range of -25 to +70°C. It comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for connectivity. The Q45UBB63DAC offers a sensing distance of 10cm to 1.4m and operates at a frequency of 239kHz. It has a rectangular shape and is constructed with a thermoplastic housing, ensuring durability. This sensor is powered by a supply voltage of 12Vdc to 24Vdc and includes 1 x digital output (PNP/NPN transistor) for signal processing. It is protected against overload and short-circuit conditions and boasts a degree of protection rated at IP67 NEMA 6P, making it suitable for various industrial applications.
