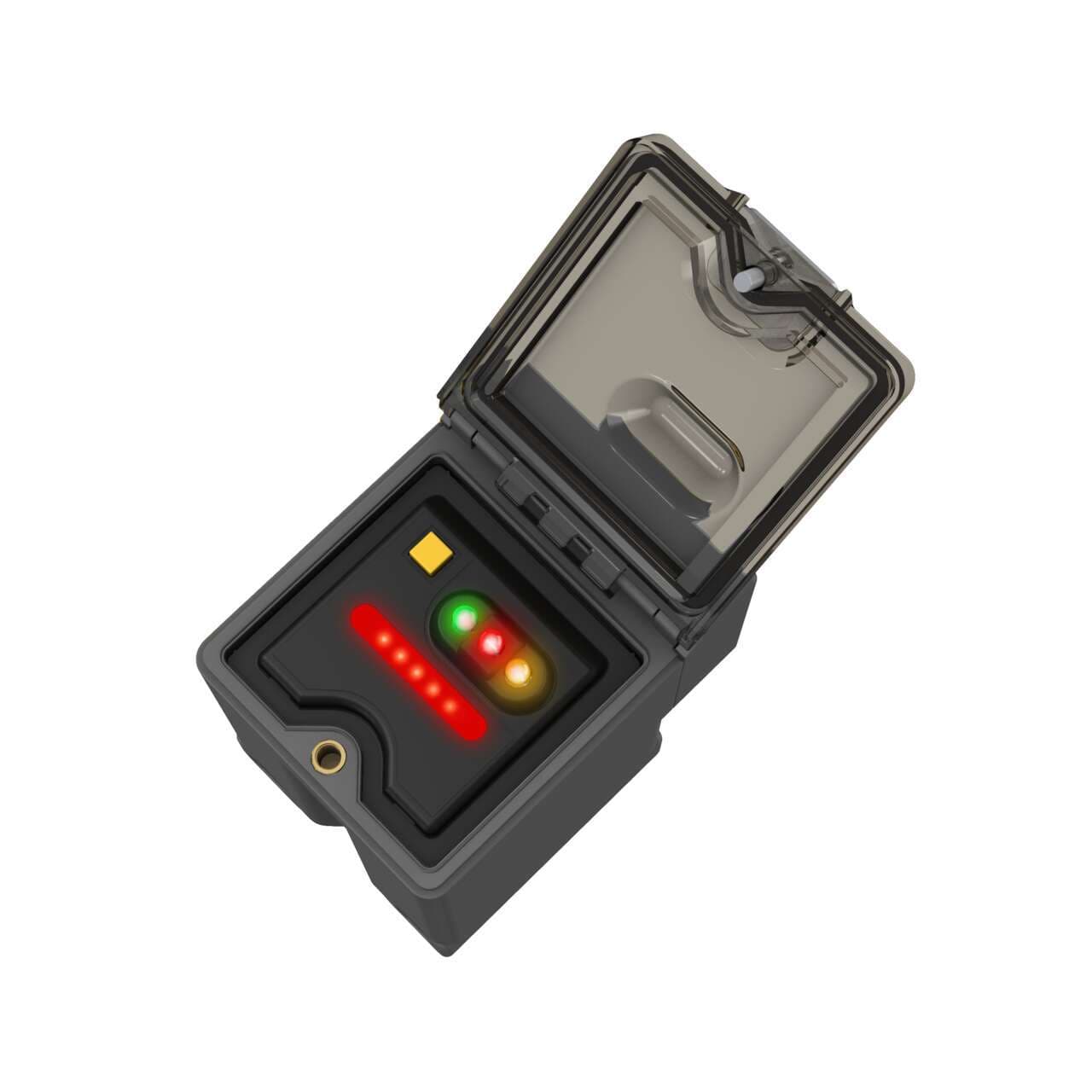

Q45UBB63DACQ Banner Ultrasonic Sensors

Name: Q45UBB63DACQ
Brand: Banner

Banner Q45UBB63DACQ Discrete Q45U Series: Proximity Mode; Range: 100 mm - 1.4 m; Input: 12-24 V dc; Output: Bipolar: 1 NPN; 1 PNP; 5-pin Mini Integral QD

Part#:Q45UBB63DACQ

Manufacturer:Banner

Alt. Part#:44133

Product Lifecycle:Active

Get a quick Quote!

Discrete Q45U Series: Proximity Mode; Range: 100 mm - 1.4 m; Input: 12-24 V dc; Output: Bipolar: 1 NPN; 1 PNP; 5-pin Mini Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Ultrasonic Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q45UBB63DACQ Banner price in the box on the right side or send a quick quote.

Product Details

Weight
308.44256 g
Country Of Origin
US
Profibus
No
1-wire Serial Interface
No
Wireless
No
SSI
No
RS-485
No
RS-422
No
IO Link
No
RS-232
No
Common Ethernet Protocol
No
Feature: Chemical Resistant
No
PROFINET
No
Application: Ultrasonic
Yes
Feature: Timing (Hold/Delay)
No
Feature: Clear Object Detection
Yes
Feature: Remote Teach
Yes
Max Off-state Leakage Current (µA)
25
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
Power/Current Consumption (exclusive of load)
100 mA

Ultrasonic Frequency (kHz)

230

Discrete Output Hysteresis (mm)

Minimum Window Size (mm)

Min Operating Temperature (°C)

-25

Max Operating Temperature (°C)

NEMA Rating

NEMA 6P

Minimum Response Time (ms)

Warm-up Time (minutes)

Max Op. Relative Humidity Non-Condensing (%)

100

Output Protection

Protected against false pulse on power-up and continuous overload or short-circuit of outputs

Discrete (Switched) Outputs

Bipolar (NPN & PNP)

IP Rating

IP67

Max Discrete (Switched) Output (mA)

150

Output Saturation Voltage PNP Outputs

< 1.5 V at 10 mA; < 2.0 V at 150 mA

Output Saturation Voltage NPN Outputs

< 1.5 V at 10 mA; < 2.0 V at 150 mA

Mechanical Shock

IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave

Vibration

MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).

Number of Pins

Temperature Effect (mm/°C)

0.05% of sensing distance/°C

Analog Resolution/Discrete Repeatability

+/- 0.1% of measured distance (+/- 0.25 min)

Adjustments

Teach Button; DIP Switches

Quick Disconnect Type

7/8 in. (Mini)

Power Supply

12-24 V dc

Minimum Sensing Distance (mm)

100

Indicator

LED(s)

Max Sensing Distance (mm)

1400

Input/Output

Discrete

Connection

Integral QD

Sensing Beam

Ultrasonic

Primary Housing Material

PBT

Housing Style

Rectangular

Device Type

Sensor

Sensing Mode (General)

Proximity

Power

PC Configurable

Max Measurement Range

>1 m - <=20 m

Sensing Mode (Detailed)

Time of Flight

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Q45UBB63DACQ Description

Banner Engineering Q45UBB63DACQ is an ultrasonic distance sensor belonging to the Q45U series. It features a versatile design capable of operating within an ambient air temperature range of -25 to +70°C. This sensor is equipped with a time-of-flight system TEACH mode for precise distance measurement and offers a sensing distance between 10cm and 1.4m. It is designed with a rectangular shape, M30 threaded mount for installation, and is pre-equipped with a 5-pin 7/8" mini connector for connectivity. The Q45UBB63DACQ operates on a supply voltage of 12Vdc-24Vdc and has a transmission frequency of 239kHz. The housing is made of thermoplastic, ensuring durability within specified conditions. It provides one digital output (PNP/NPN transistor) and includes protection functions against overload and short-circuit. This sensor is rated with a degree of protection of IP67 NEMA 6P, indicating its capability to withstand dust and water ingress in challenging environments.
