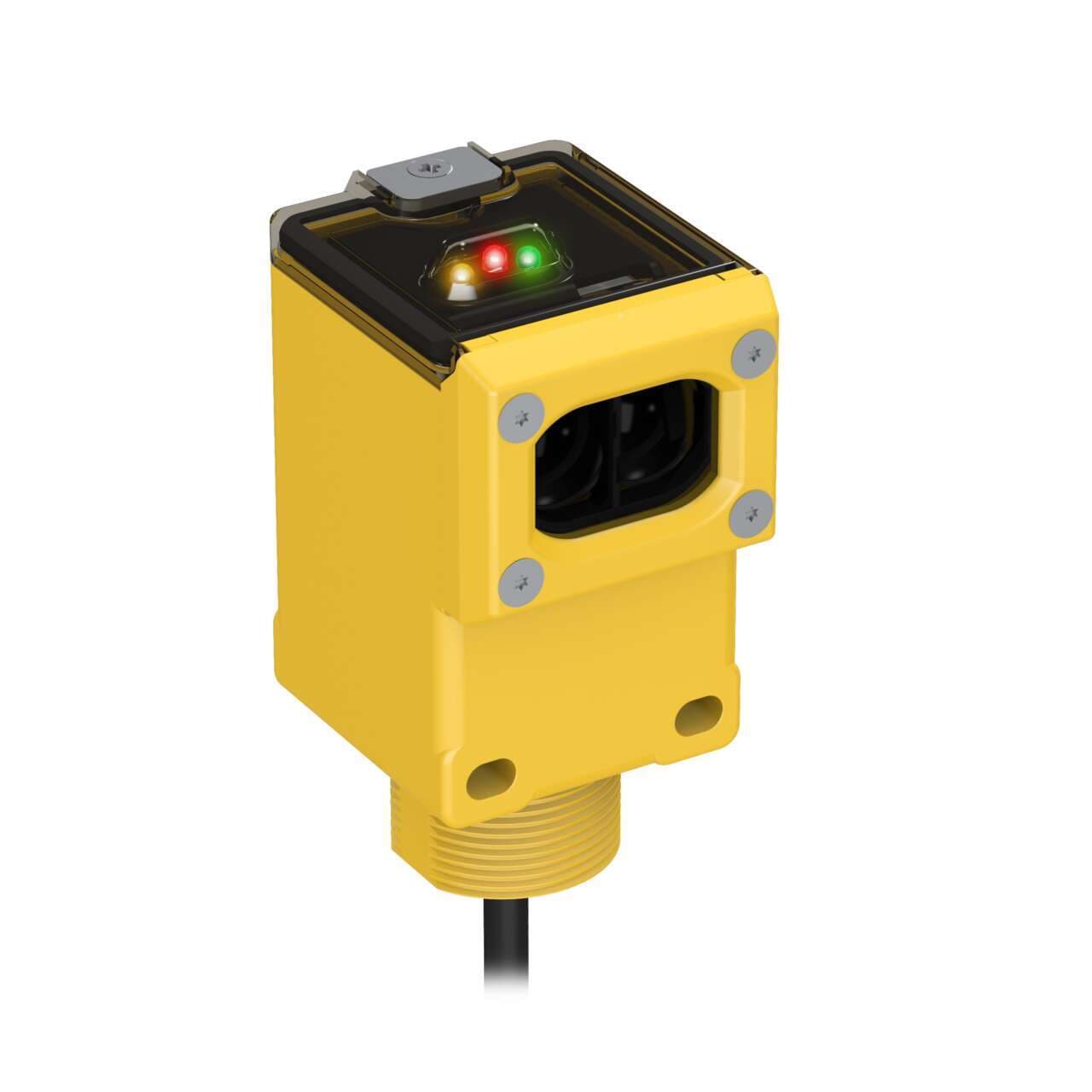

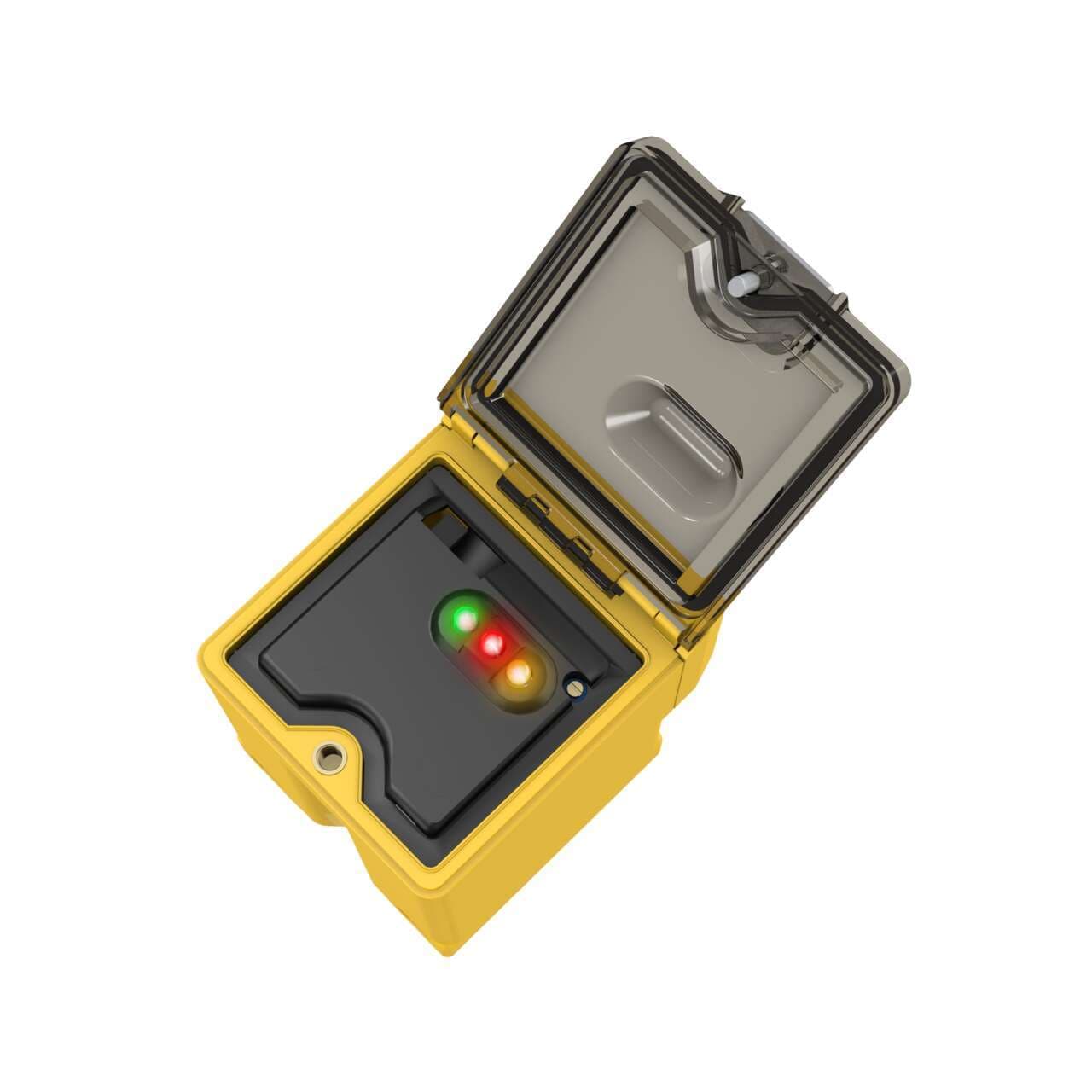

Q45BB6R Banner Proximity Sensors
Part#:Q45BB6R
Alt. Part#:36562
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
Q45 Series: Receiver; Range: 60 m; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 2 m (6.5 ft) Cable
Product Details
- Weight 325.225464 g
- Country Of Origin US
- Main function Sensor (Photo-electric)
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Sensing distance 60m
- Mounting mode Threaded mount
- Ambient air temperature for operation -40...+70 °C
- Primary brand Banner Engineering
- Light Color Infrared (IR)
- Product series / family name Q series
- Functions Photo-electric sensor receiver green LED (power ON) red LED (signal) amber LED (output state) potentiometer adjustment
- Sub-range name Q45BB6
- Wavelength 880 nm
- Thread size M30
- Operating mode Light-ON Dark-ON
- Design through-beam system / opposed mode
- Response time (ON) 2ms / 0.002 s(OFF) 1ms / 0.001 s
- Compliant with standard(s) cURus cCSAus CE
- Shape Rectangular
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Material thermoplastic housing Acrylic lns.
- Order code / Manufacturer SKU 36562
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Degree of protection IP67 NEMA 6P
- Adjustments Potentiometer
- Feature: Chemical Resistant No
- Sensing Mode (General) Opposed
- Connection Cable
- Barrel Diameter (mm) 30
- IO Link No
- Housing Style Rectangular
- Operation Light/Dark Operate
- Output response time (ms) 2 ON/1 OFF
- Repeatability (µs) 250
- Lens Material Acrylic
- Feature: Encapsulated No
- Feature: Audible No
- Input/Output Discrete
- Quick Disconnect Type No QD
- NEMA Rating NEMA 6P
- Feature: Hazardous Area No
- Power Supply/Supply Voltage 10-30 V dc
- Sensing Mode (Detailed) Receiver
- Delay at Power-up (ms) 100
- Feature: Timing (Hold/Delay) Yes
- Max Sensing Distance (mm) 60000
- Min Op. Temp. (°C) -40
- Power DC
- Outputs Bipolar (NPN & PNP)
- Sensing Beam Infrared LED
- Primary Housing Material Thermoplastic
- Special Feature: Intrinsically Safe No
- Special Feature: Water Detection No
- Number of Pins 4
- IP Rating IP67
- Cable Length (m) 2
- Max Op. Temp. (°C) 70
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 90% @ 50°C
- Indicator LEDs
- DeviceNet No
- Opposed Mode Emitter/Receiver Receiver
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q45BB6R on Powermatic Associates is $127.00. Order now.
About the product
Banner Engineering Q45BB6R is a photo-electric sensor designed for through-beam system applications with an opposed mode potentiometer adjustment. It features an M30 threaded mount for secure installation and operates within an ambient air temperature range of -40 to +70°C. This sensor is part of the Q45BB6 series and comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for easy connection. It boasts a degree of protection rated at IP67 NEMA 6P, ensuring durability in various environmental conditions. The Q45BB6R operates on a supply voltage of 10Vdc-30Vdc, with nominal voltages of 12Vdc and 24Vdc. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens, capable of sensing distances up to 60m. The sensor emits an infrared light with a wavelength of 880 nm and offers an operating mode that allows for both Light-ON and Dark-ON configurations. It includes 1 x digital output (PNP/NPN transistor) and features a rapid response time of 2ms for ON and 1ms for OFF operations.
