Q45BB6LLQ6
Banner
Product Lifecycle: Active

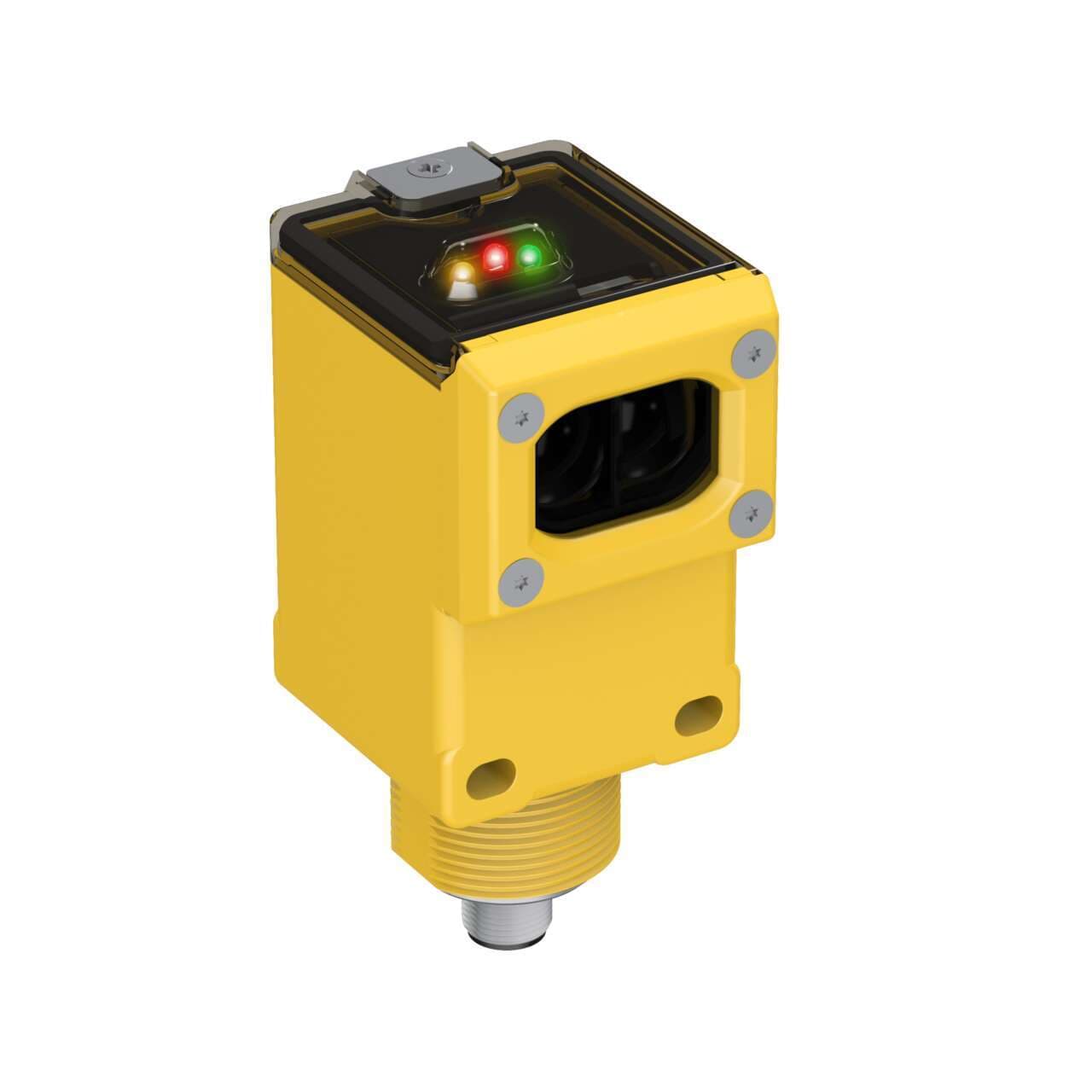

Banner Engineering Q45BB6LLQ6 is a photo-electric sensor equipped with a Class 2 laser diode, designed for retro-reflective mode operation with potentiometer adjustment. This sensor features an M30 threaded mount and is pre-equipped with a 5-pin Euro-style M12 connector for connectivity. It operates within an ambient air temperature range of -10 to +40°C and offers a sensing distance between 30cm and 70m. The Q45BB6LLQ6, part of the Q45BB6LL series, is housed in a thermoplastic casing with an acrylic lens and is shaped rectangularly. It provides a visible class 2 red laser light, with a wavelength of 655 nm, and supports both Light-ON and Dark-ON operating modes. The sensor is powered by a supply voltage ranging from 10Vdc to 30Vdc (with 12Vdc / 24Vdc nominal) and features a single digital output (PNP/NPN transistor) with a response time of 2ms / 0.002 s. It is designed to offer a degree of protection rated at IP67 NEMA 6P.
![Q45BB6LLQ6](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2Fdcecb07d-b652-4e97-858a-c8264c5c6e2f.jpeg&w=3840&q=75)
Banner Engineering Q45BB6LLQ6 is a photo-electric sensor equipped with a Class 2 laser diode, designed for retro-reflective mode operation with potentiometer adjustment. This sensor features an M30 threaded mount and is pre-equipped with a 5-pin Euro-style M12 connector for connectivity. It operates within an ambient air temperature range of -10 to +40°C and offers a sensing distance between 30cm and 70m. The Q45BB6LLQ6, part of the Q45BB6LL series, is housed in a thermoplastic casing with an acrylic lens and is shaped rectangularly. It provides a visible class 2 red laser light, with a wavelength of 655 nm, and supports both Light-ON and Dark-ON operating modes. The sensor is powered by a supply voltage ranging from 10Vdc to 30Vdc (with 12Vdc / 24Vdc nominal) and features a single digital output (PNP/NPN transistor) with a response time of 2ms / 0.002 s. It is designed to offer a degree of protection rated at IP67 NEMA 6P.
Product details
- IO LinkNo
- DeviceNetNo
- Feature: Chemical ResistantNo
- Feature: AudibleNo
- Feature: Hazardous AreaNo
- Feature: EncapsulatedNo
- Opposed Mode Emitter/ReceiverN/A
- Feature: Timing (Hold/Delay)Yes
- Lens MaterialAcrylic
- IndicatorLEDs
- Barrel Diameter (mm)30
- AdjustmentsPotentiometer
- Max Op. Relative Humidity [%]90% @ 50°C
- NEMA RatingNEMA 6P
- IP RatingIP67
- Delay at Power-up (ms)100
- Special Feature: Water DetectionNo
- Repeatability (µs)500
- Number of Pins5
- Special Feature: Remote TeachNo
- Special Feature: Intrinsically SafeNo
- Min Op. Temp. (°C)-10
- Max Op. Temp. (°C)40
- OperationLight/Dark Operate
- Output response time (ms)2
- Quick Disconnect TypeM12 (Euro)
- OutputsBipolar (NPN & PNP)
- Max Sensing Distance (mm)70000
- ConnectionIntegral QD
- Power Supply/Supply Voltage10-30 V dc
- Input/OutputDiscrete
- Laser ClassificationClass 2
- Small Visible SpotLaser
- Sensing Mode (Detailed)Non-Polarized
- Primary Housing MaterialThermoplastic
- PowerDC
- Housing StyleRectangular
- Sensing Mode (General)Retroreflective
- Sensing BeamVisible Red Laser
- Main functionSensor (Photo-electric)
- Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Light ColorVisible class 2 red Laser
- Sub-range nameQ45BB6LL
- Sensing distance30cm...70m
- Operating modeLight-ON Dark-ON
- Order code / Manufacturer SKU41032
- Product series / family nameQ series
- Designretro-reflective mode
- ShapeRectangular
- Wavelength655 nm
- Mounting modeThreaded mount
- Primary brandBanner Engineering
- Thread sizeM30
- Ambient air temperature for operation-10...+40 °C

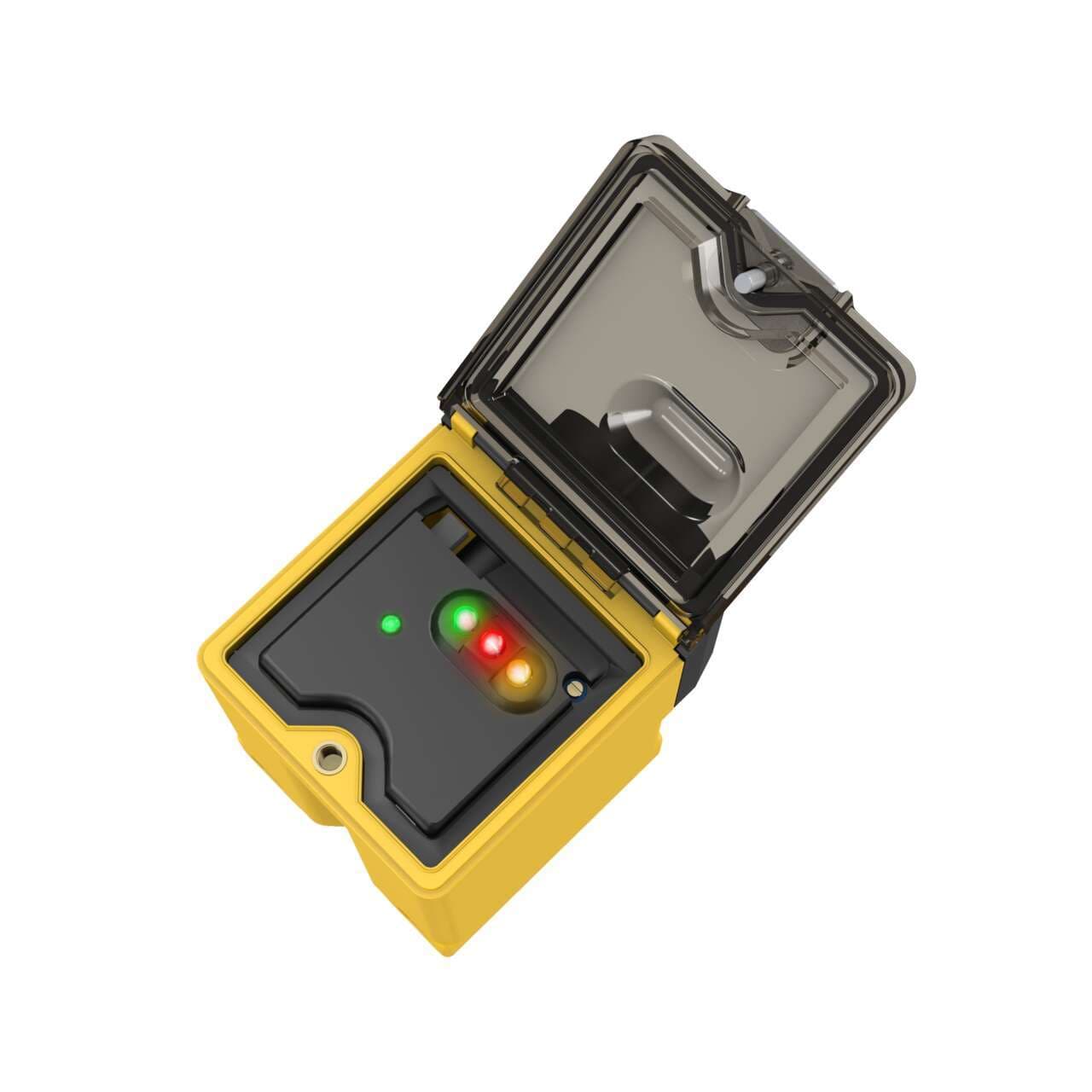

- FunctionsClass 2 Laser diode photo-electric sensor green LED (power ON) red LED (signal) amber LED (output state) potentiometer adjustment
- Connection typePre-equipped with 5-pin Euro-style M12 connector
- Materialthermoplastic housing Acrylic lns.
- Degree of protectionIP67 NEMA 6P
- Compliant with standard(s)cURus cCSAus CE
- Digital outputs1 x digital output (PNP/NPN transistor)
- Response time2ms / 0.002 s
