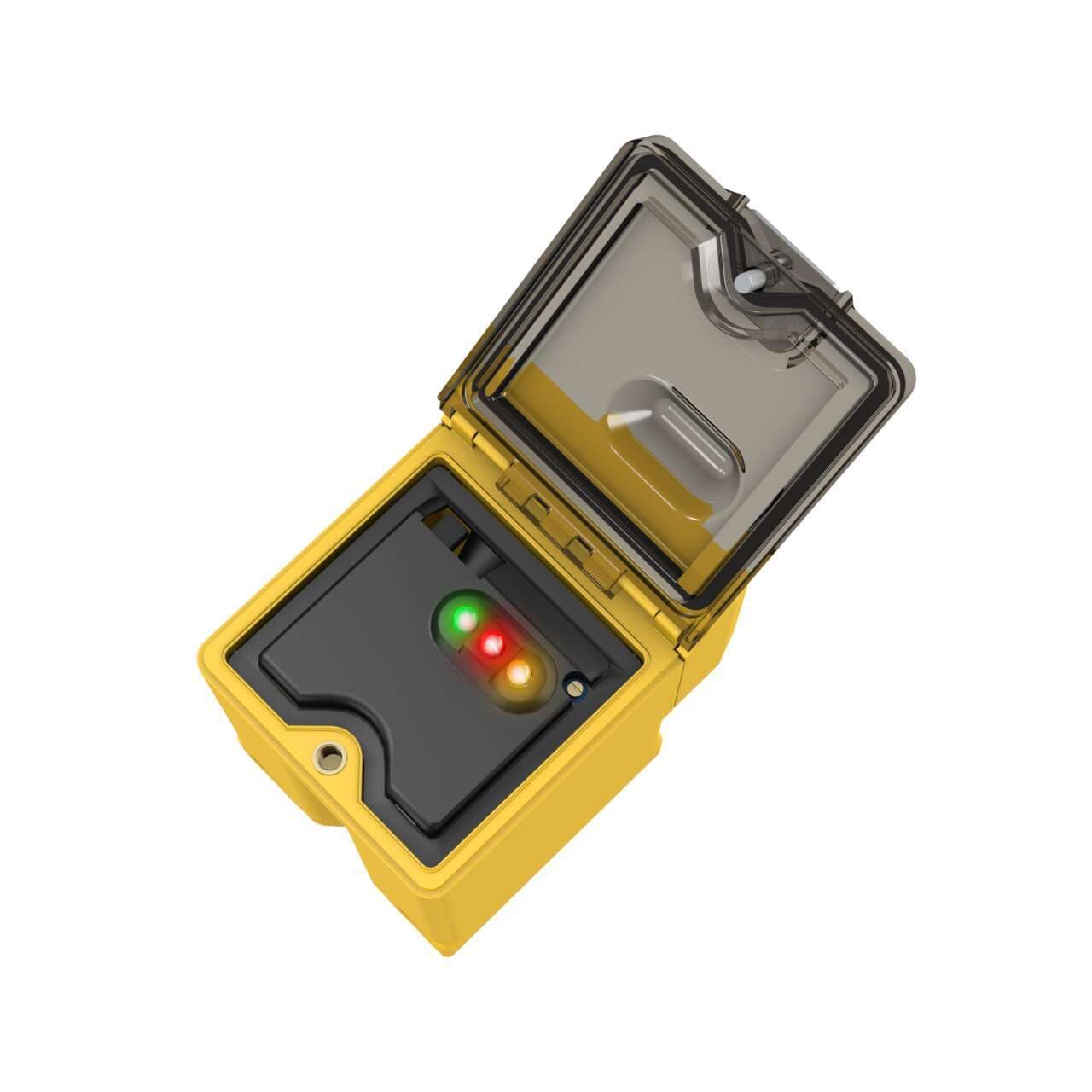

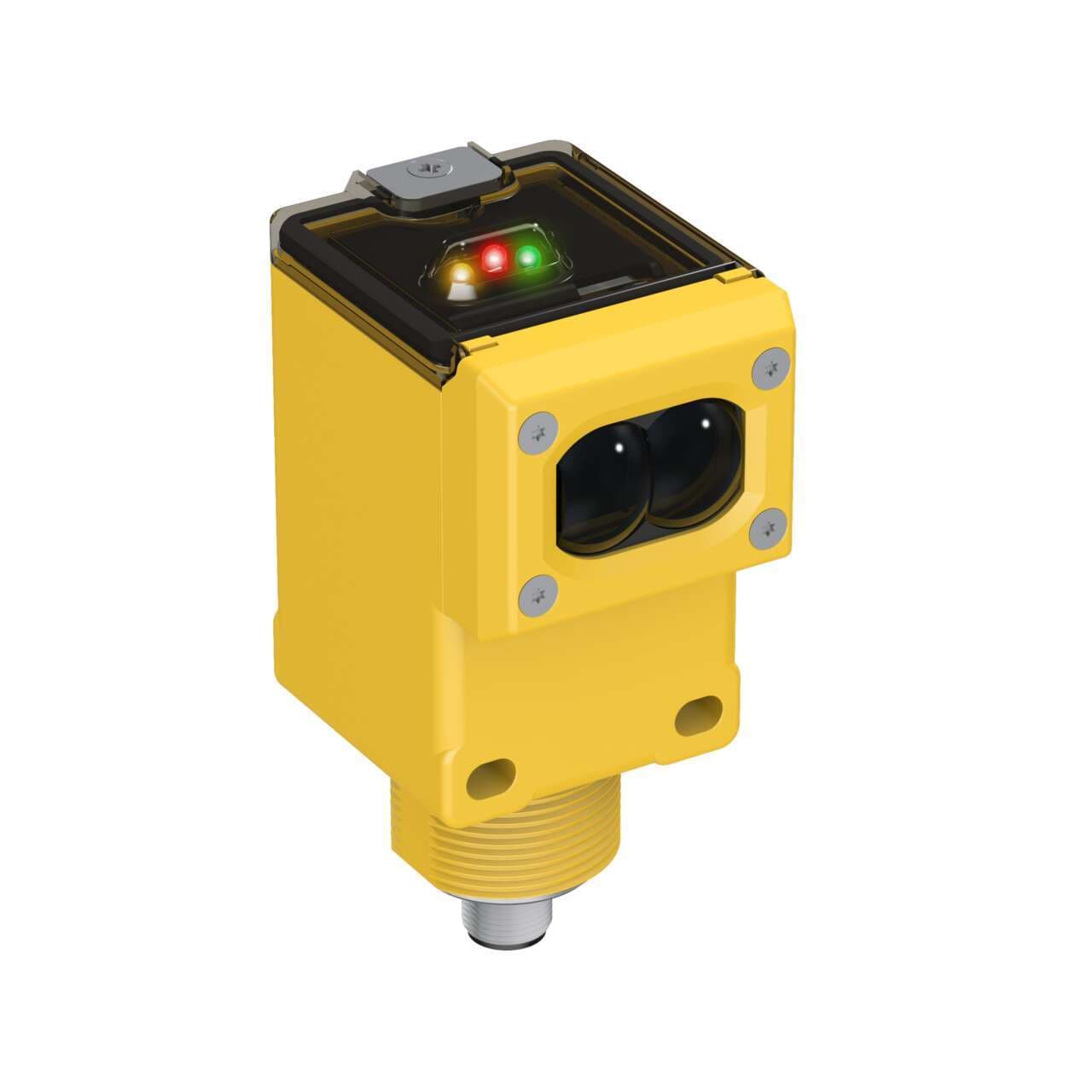

Q45BB6DXQ5 Banner Proximity Sensors

Q45BB6DXQ5 on Powermatic Associates
Banner
  • Q45BB6DXQ5
  • Q45BB6DXQ5

Part#:Q45BB6DXQ5

Alt. Part#:47138

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

Q45 Series: High-power Diffuse; Range: 3 m; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 4-pin M12 Integral QD

Product Details

  • Weight
    252.650744 g
  • Country Of Origin
    US
  • Main function
    Sensor (Photo-electric)
  • Light Color
    Infrared (IR)
  • Sub-range name
    Q45BB6
  • Connection type
    Pre-equipped with 4-pin Euro-style M12 connector
  • Response time
    2ms / 0.002 s
  • Shape
    Rectangular
  • Functions
    Photo-electric sensor green LED (power ON) red LED (signal) amber LED (output state) potentiometer adjustment
  • Sensing distance
    3m
  • Degree of protection
    IP67 NEMA 6P
  • Product series / family name
    Q series
  • Wavelength
    880 nm
  • Operating mode
    Light-ON Dark-ON
  • Material
    thermoplastic housing Acrylic lns.
  • Primary brand
    Banner Engineering
  • Design
    diffuse mode
  • Thread size
    M30
  • Digital outputs
    1 x digital output (PNP/NPN transistor)
  • Compliant with standard(s)
    cURus cCSAus CE
  • Ambient air temperature for operation
    -40...+70 °C
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Mounting mode
    Threaded mount
  • Order code / Manufacturer SKU
    47138
  • Operation
    Light/Dark Operate
  • IP Rating
    IP67
  • Feature: Encapsulated
    No
  • Sensing Mode (Detailed)
    Diffuse
  • Connection
    Integral QD
  • Special Feature: Water Detection
    No
  • Adjustments
    Potentiometer
  • IO Link
    No
  • Housing Style
    Rectangular
  • Special Feature: Intrinsically Safe
    No
  • Quick Disconnect Type
    M12 (Euro)
  • Lens Material
    Acrylic
  • Feature: Chemical Resistant
    No
  • Power Supply/Supply Voltage
    10-30 V dc
  • Max Sensing Distance (mm)
    3000
  • Delay at Power-up (ms)
    100
  • Barrel Diameter (mm)
    30
  • Outputs
    Bipolar (NPN & PNP)
  • Min Op. Temp. (°C)
    -40
  • NEMA Rating
    NEMA 6P
  • Feature: Hazardous Area
    No
  • Repeatability (µs)
    500
  • Feature: Timing (Hold/Delay)
    Yes
  • Power
    DC
  • Input/Output
    Discrete
  • Special Feature: Remote Teach
    No
  • Opposed Mode Emitter/Receiver
    N/A
  • Primary Housing Material
    Thermoplastic
  • Max Op. Temp. (°C)
    70
  • Number of Pins
    4
  • Indicator
    LEDs
  • DeviceNet
    No
  • Sensing Beam
    Infrared LED
  • Sensing Mode (General)
    Proximity
  • Output response time (ms)
    2
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Feature: Audible
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q45BB6DXQ5 on Powermatic Associates is $153.00. Order now.


About the product

Banner Engineering Q45BB6DXQ5 is a photo-electric sensor designed for versatile applications, featuring a diffuse mode with potentiometer adjustment. It comes with an M30 threaded mount for secure installation and is pre-equipped with a 4-pin Euro-style M12 connector for easy connection. This sensor operates within an ambient air temperature range of -40 to +70°C and is housed in a durable thermoplastic with an acrylic lens, ensuring its operation in challenging environments. It offers a sensing distance of up to 3m and utilizes infrared light with a wavelength of 880 nm for detection. The Q45BB6DXQ5 supports both Light-ON and Dark-ON operating modes and provides a single digital output (PNP/NPN transistor) with a rapid response time of 2ms. It is designed to work with a supply voltage range of 10Vdc to 30Vdc (12Vdc / 24Vdc nom.) and is protected to IP67 NEMA 6P standards, making it suitable for a wide range of industrial applications.
