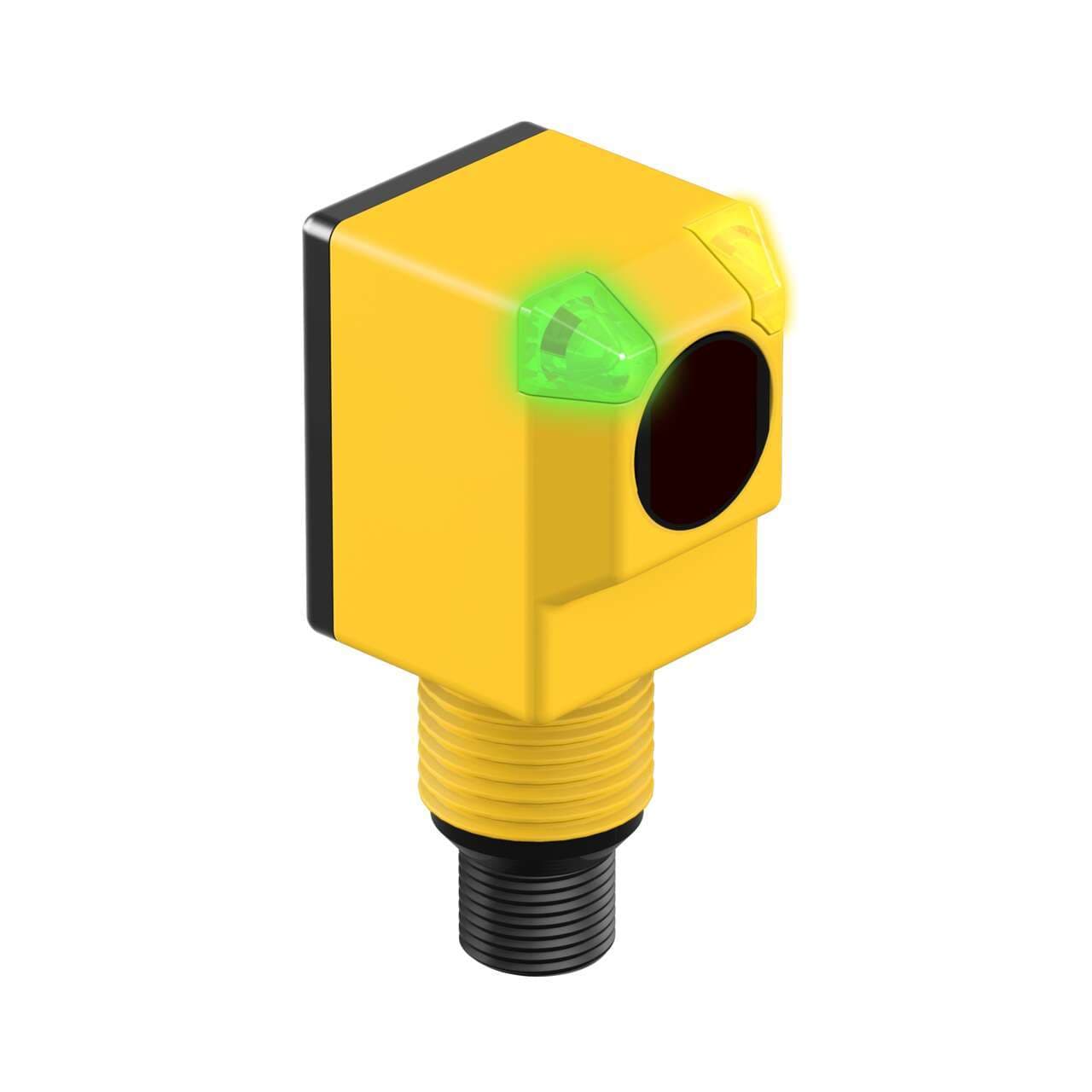

Q25AW3RQ1 Banner Proximity Sensors
Part#:Q25AW3RQ1
Alt. Part#:31972
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
EZ-BEAM Q25 Series: Receiver; Range: 20 m; Input: 20-250 V ac; Output: SPST Solid-state Light Operate; 4-pin Micro Integral QD
Product Details
- Weight 55.338224 g
- Country Of Origin US
- Main function Sensor (Photo-electric)
- Functions Photo-electric sensor receiver green LED (power ON) amber LED (output state)
- Thread size M18
- Degree of protection IP69K NEMA 6P
- Primary brand Banner Engineering
- Product series / family name EZ-BEAM series
- Sensing distance 20m
- Operating mode Light-ON
- Order code / Manufacturer SKU 31972
- Sub-range name Q25 AC series
- Design through-beam system / opposed mode
- Digital outputs 1 x digital output (Solid-state AC output; SPST contact type)
- Ambient air temperature for operation -40...+70 °C
- Light Color Infrared (IR)
- Connection type Pre-equipped with 4-pin 1/2" Micro connector
- Material thermoplastic housing Polycarbonate lns.
- Wavelength 950 nm
- Shape Rectangular
- Response time 16ms / 0.016 s
- Supply voltage (AC) 20Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
- Compliant with standard(s) cULus CCC cCSAus CE
- Sensing Mode (Detailed) Receiver
- Quick Disconnect Type 1/2 in. (Micro)
- Special Feature: Water Detection No
- Barrel Diameter (mm) 18
- Feature: Hazardous Area No
- Sensing Beam Infrared LED
- Operation Light Operate
- Repeatability (µs) 2000
- Feature: Timing (Hold/Delay) No
- Input/Output Solid-State AC Switch
- Connection Integral QD
- IP Rating IP69
- Feature: Encapsulated Yes
- Primary Housing Material Thermoplastic
- Power AC
- Special Feature: Intrinsically Safe No
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Chemical Resistant Yes
- Max Sensing Distance (mm) 20000
- Output response time (ms) 16 ON/8 OFF
- Number of Pins 4
- Opposed Mode Emitter/Receiver Receiver
- DeviceNet No
- Outputs Solid-State AC Switch
- Min Op. Temp. (°C) -40
- Delay at Power-up (ms) 100
- Feature: Washdown Rated Yes
- Sensing Mode (General) Opposed
- Max Op. Temp. (°C) 70
- NEMA Rating NEMA 6P
- Indicator LEDs
- IO Link No
- Housing Style Rectangular
- Power Supply/Supply Voltage 20-250 V ac
- Special Feature: Remote Teach No
- Adjustments N/A
- Feature: Ecolab Certified Yes
- Lens Material Polycarbonate
- Feature: Audible No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q25AW3RQ1 on Powermatic Associates is $114.00. Order now.
About the product
Banner Engineering Q25AW3RQ1 is a photo-electric sensor designed for through-beam system applications, featuring an M18 threaded mount for secure installation. This sensor operates within an ambient air temperature range of -40 to +70°C and is housed in a thermoplastic with a polycarbonate lens, ensuring durability. It is equipped with a 4-pin 1/2" micro connector for connectivity and requires a supply voltage of 20Vac-250Vac, with nominal values at 200Vac, 220Vac, and 240Vac. Part of the Q25 AC series, it offers a sensing distance of up to 20 meters and utilizes infrared light with a wavelength of 950 nm. The Q25AW3RQ1 operates in Light-ON mode and includes one digital output (Solid-state AC output; SPST contact type) with a response time of 16ms. It boasts a high degree of protection, rated at IP69K NEMA 6P, suitable for demanding environments.
