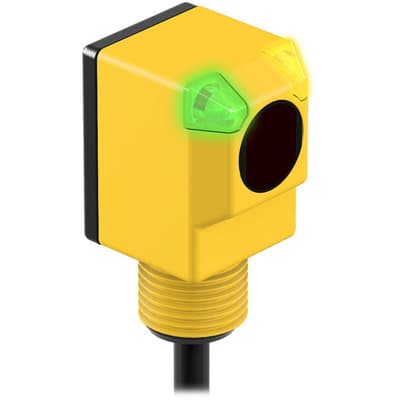

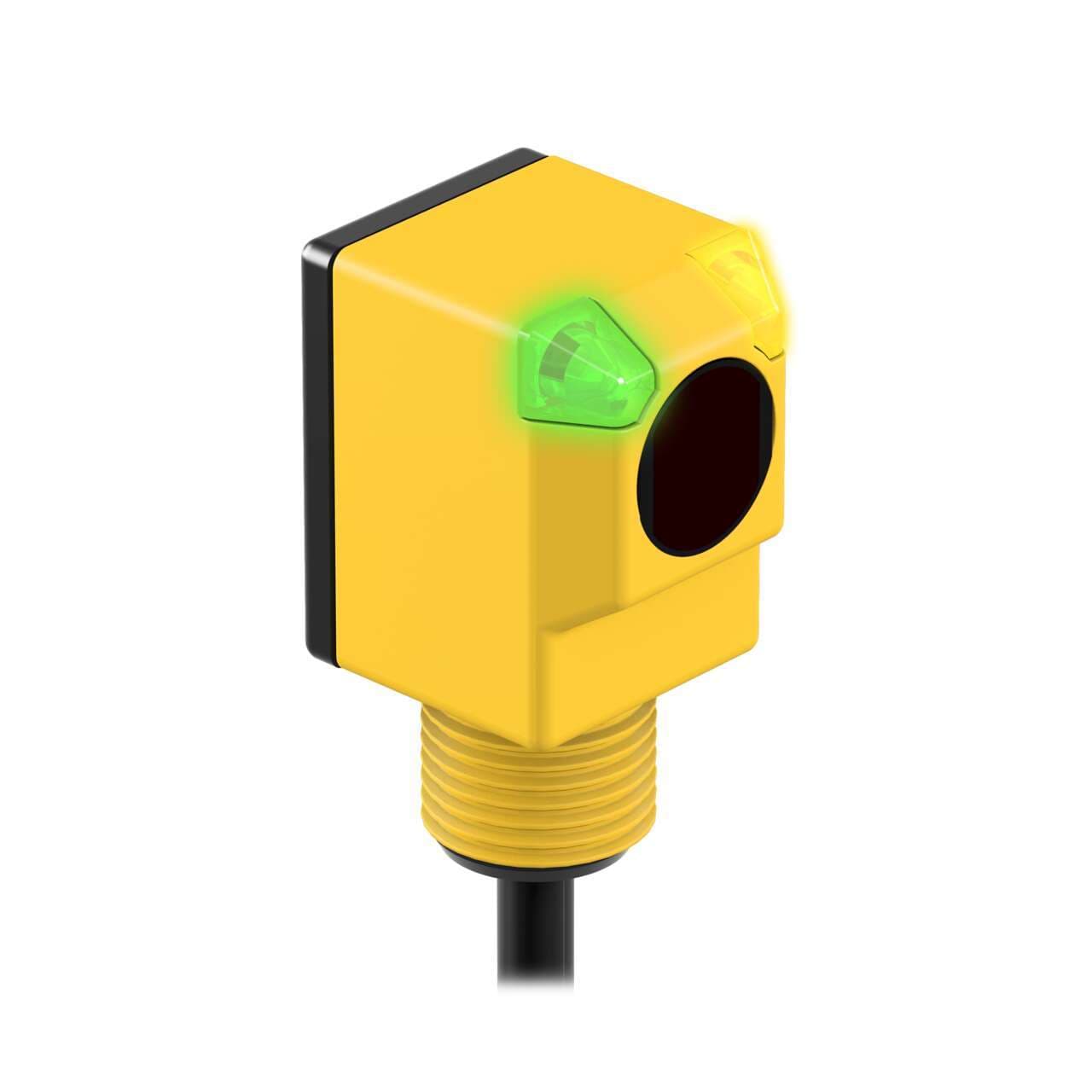

Q25AW3R Banner Proximity Sensors

Name: Q25AW3R
Brand: Banner

Banner Q25AW3R EZ-BEAM Q25 Series: Receiver; Range: 20 m; Input: 20-250 V ac; Output: SPST Solid-state Light Operate; 2 m (6.5 ft) Cable

Part#:Q25AW3R

Manufacturer:Banner

Alt. Part#:31967

Product Lifecycle:Active

Get a quick Quote!

EZ-BEAM Q25 Series: Receiver; Range: 20 m; Input: 20-250 V ac; Output: SPST Solid-state Light Operate; 2 m (6.5 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q25AW3R Banner price in the box on the right side or send a quick quote.

Product Details

Weight
157.850016 g
Country Of Origin
US
IO Link
No
Feature: Hazardous Area
No
Feature: Audible
No
DeviceNet
No
Feature: Chemical Resistant
Yes
Feature: Encapsulated
Yes
Feature: Ecolab Certified
Yes
Feature: Washdown Rated
Yes
Feature: Timing (Hold/Delay)
No
Opposed Mode Emitter/Receiver
Receiver
Indicator
LEDs
Barrel Diameter (mm)
18
Adjustments
N/A
Lens Material
Polycarbonate
Max Op. Relative Humidity [%]
90% @ 50°C
NEMA Rating
NEMA 6P
Repeatability (µs)
2000
IP Rating
IP69

Number of Pins

Special Feature: Water Detection

Delay at Power-up (ms)

100

Special Feature: Remote Teach

Special Feature: Intrinsically Safe

Output response time (ms)

16 ON/8 OFF

Max Op. Temp. (°C)

Operation

Light Operate

Quick Disconnect Type

No QD

Connection

Cable

Power Supply/Supply Voltage

20-250 V ac

Min Op. Temp. (°C)

-40

Outputs

Solid-State AC Switch

Cable Length (m)

Max Sensing Distance (mm)

20000

Sensing Mode (Detailed)

Receiver

Input/Output

Solid-State AC Switch

Primary Housing Material

Thermoplastic

Housing Style

Rectangular

Sensing Beam

Infrared LED

Power

Sensing Mode (General)

Opposed

Sub-range name

Q25 AC series

Sensing distance

20m

Operating mode

Light-ON

Degree of protection

IP67 NEMA 6P

Product series / family name

EZ-BEAM series

Design

through-beam system / opposed mode

Thread size

M18

Connection type

Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads

Compliant with standard(s)

cULus CCC cCSAus CE

Primary brand

Banner Engineering

Light Color

Infrared (IR)

Response time

16ms / 0.016 s

Main function

Sensor (Photo-electric)

Functions

Photo-electric sensor receiver green LED (power ON) amber LED (output state)

Shape

Rectangular

Digital outputs

1 x digital output (Solid-state AC output; SPST contact type)

Ambient air temperature for operation

-40...+70 °C

Order code / Manufacturer SKU

31967

Supply voltage (AC)

20Vac-250Vac (200Vac / 220Vac / 240Vac nom.)

Wavelength

950 nm

Material

thermoplastic housing Polycarbonate lns.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Q25AW3R Description

Banner Engineering Q25AW3R is a photo-electric sensor designed for through-beam system applications, featuring an M18 threaded mount for secure installation. This sensor operates within an ambient air temperature range of -40 to +70°C and is housed in a thermoplastic with a polycarbonate lens, ensuring durability. It is equipped with a pre-wired 6.5ft / 2m cable that terminates with bare end flying leads for easy connection. The Q25AW3R operates on a supply voltage of 20Vac-250Vac, with nominal voltages of 200Vac, 220Vac, and 240Vac, and belongs to the Q25 AC series. It offers a sensing distance of up to 20m and utilizes infrared light with a wavelength of 950 nm in a Light-ON operating mode. The sensor provides a single digital output (Solid-state AC output; SPST contact type) with a response time of 16ms / 0.016 s. It boasts a high degree of protection, rated at IP69K NEMA 6P, making it suitable for demanding environments.
