Q12RB6FF50 Banner Proximity Sensors
Part#:Q12RB6FF50
Manufacturer:Banner
Category:Proximity Sensors
Alt. Part#:72119
Product Lifecycle:Active
Get a quick Quote!

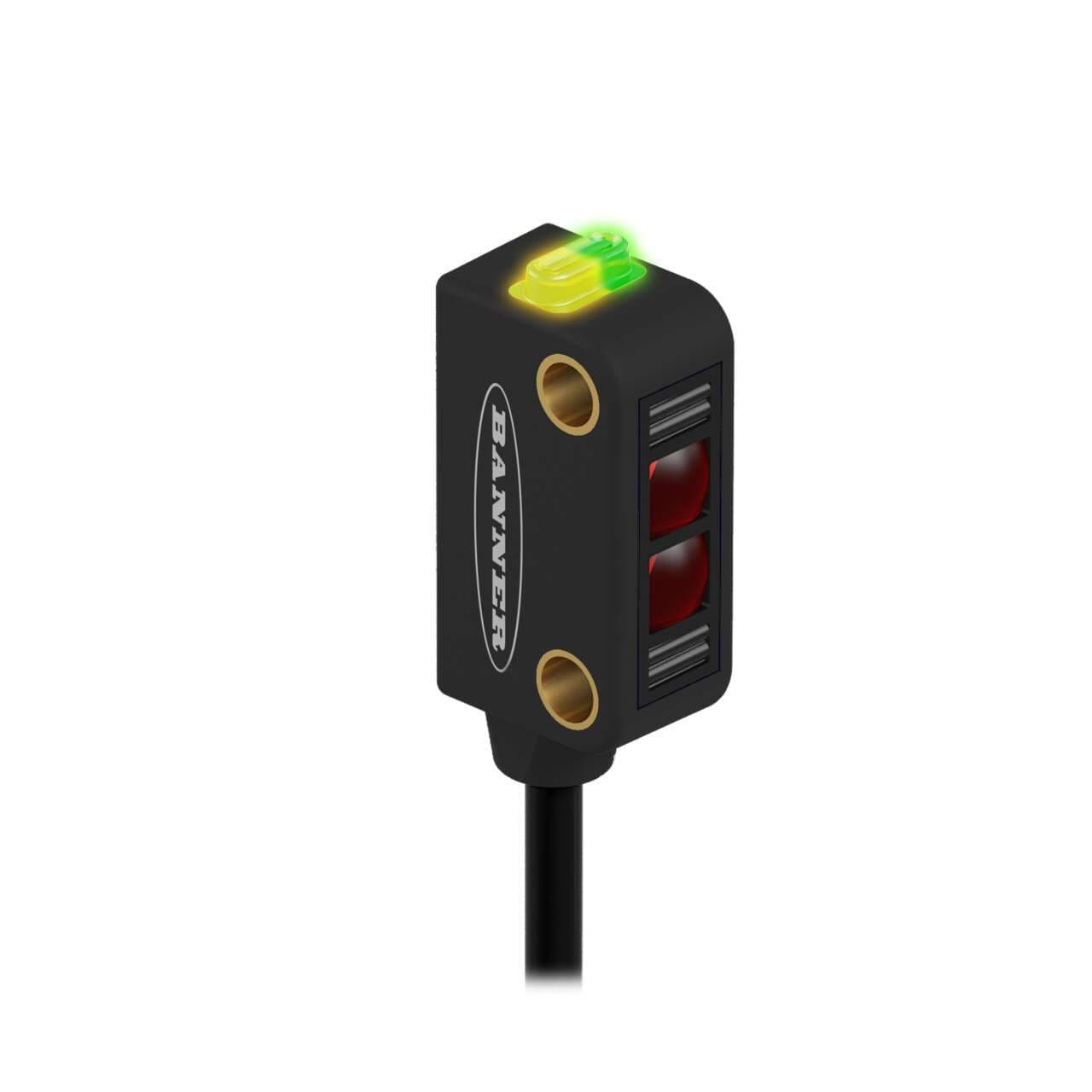

WORLD-BEAM Q12 Series: Fixed-Field; Range: 50 mm Cutoff; Input: 10-30 V dc; Output: DO (Dark Operate) Bipolar: 1 NPN; 1 PNP; 2 m (6.5 ft) Cable
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the Q12RB6FF50 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 27.21552 g
- Country Of Origin MX
- IO Link No
- DeviceNet No
- Feature: Chemical Resistant No
- Feature: Audible No
- Feature: Hazardous Area No
- Feature: Encapsulated No
- Adjustments N/A
- Feature: Timing (Hold/Delay) No
- Opposed Mode Emitter/Receiver N/A
- Barrel Diameter (mm) N/A
- Indicator LEDs
- Lens Material Polycarbonate
- Max Op. Relative Humidity [%] 95% @ 50°C
- IP Rating IP67
- Number of Pins 3
- Repeatability (µs) 175
- Delay at Power-up (ms) 120
- Special Feature: Water Detection No
- Sensing Beam Wavelength 640
- Special Feature: Remote Teach No
- Special Feature: Intrinsically Safe No
- Output response time (ms) 0.85 ON/OFF
- Max Op. Temp. (°C) 55
- Operation Dark Operate
- Power Supply/Supply Voltage 10-30 V dc
- Min Op. Temp. (°C) -20
- Quick Disconnect Type No QD
- Connection Cable
- Outputs Bipolar (NPN & PNP)
- Max Sensing Distance (mm) 50
- Cable Length (m) 2
- Sensing Mode (General) Proximity
- Housing Style Rectangular
- Small Visible Spot LED
- Input/Output Discrete
- Primary Housing Material Thermoplastic
- Power DC
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Sensing Beam Visible Red LED
- Primary brand Banner Engineering
- Main function Sensor (Photo-electric)
- Wavelength 640 nm
- Degree of protection IP67
- Sub-range name Q12 series
- Light Color Visible red
- Shape Rectangular
- Material thermoplastic housing Polycarbonate lns.
- Product series / family name WORLD-BEAM series
- Design background suppression system
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Ambient air temperature for operation -20...+55 °C
- Sensing distance 50mm
- Response time 0.7ms / 0.0007 s
- Compliant with standard(s) cURus CE
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Functions Fixed-field photo-electric sensor green LED (power ON) yellow LED (signal)
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Operating mode Dark-ON
- Order code / Manufacturer SKU 72119
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Q12RB6FF50 Description
Banner Engineering Q12RB6FF50 is a fixed-field photo-electric sensor designed with a background suppression system. It operates within an ambient air temperature range of -20 to +55 °C and is equipped with a pre-wired 6.5ft / 2m cable that terminates with bare end flying leads. This sensor falls under the Q12 series and offers a degree of protection rated at IP67, making it suitable for various industrial environments. It requires a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc being nominal. The Q12RB6FF50 features a rectangular shape and is constructed with a thermoplastic housing and a polycarbonate (PC) lens. It has a sensing distance of 50mm and utilizes visible red light with a wavelength of 640 nm. The operating mode is Dark-ON. Additionally, it includes 1 x digital output (PNP/NPN transistor) and boasts a response time of 0.7ms / 0.0007 s.
