Q12AB6LPQ5 Banner Electronic Components

Name: Q12AB6LPQ5
Brand: Banner

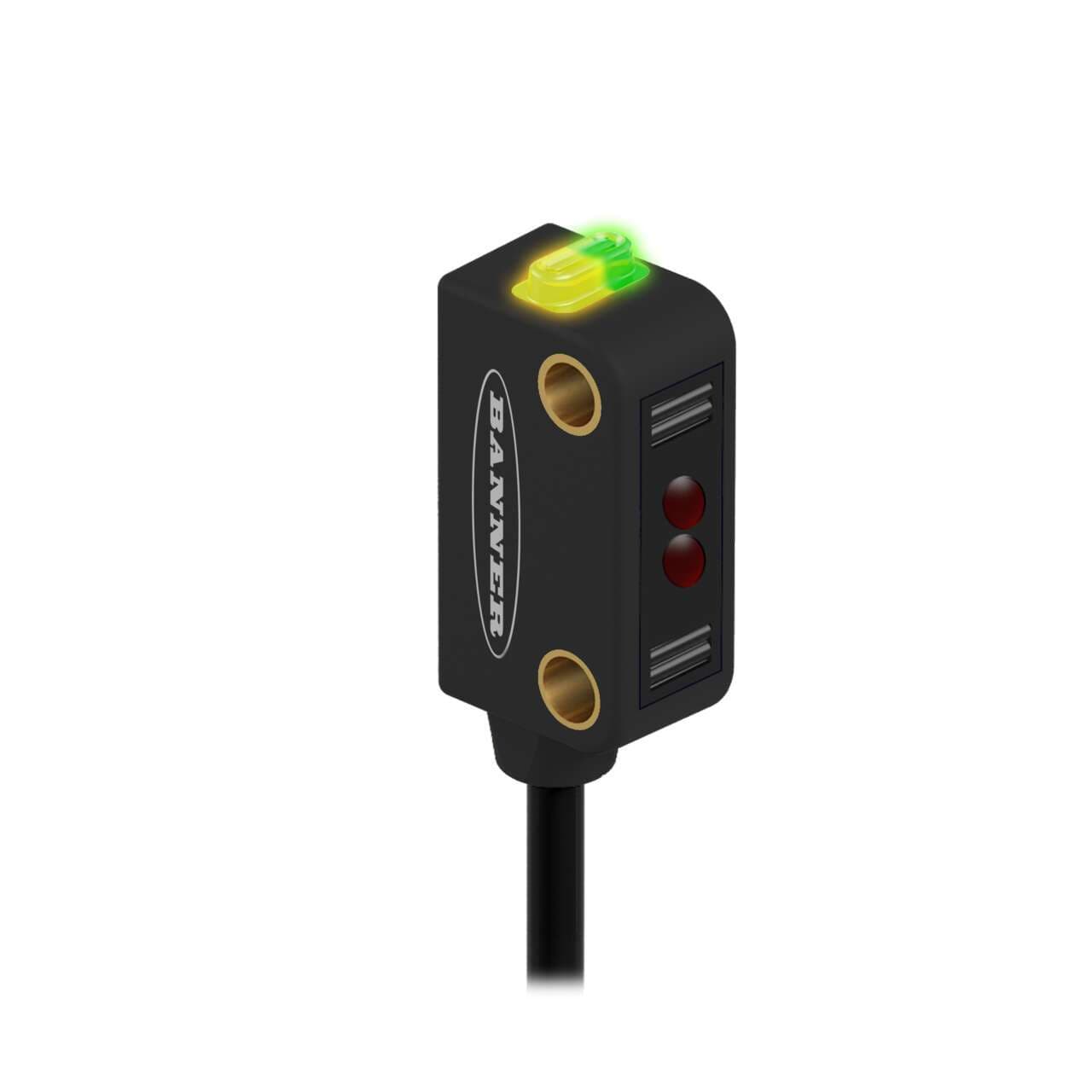

Banner Q12AB6LPQ5 Banner Engineering Q12AB6LPQ5 is a polarized photo-electric sensor designed for a variety of applications requiring precise detection. It operates within an ambient air temperature range of -20 to +55 °C and features a retro-reflective mode for enhanced sensing capabilities. This sensor is pre-wired with a 6" / 150mm pigtail that terminates with a 4-pin Euro-style M12 connector, ensuring easy integration into existing systems. Part of the Q12 series, it boasts an IP67 degree of protection, making it suitable for use in demanding environments. The Q12AB6LPQ5 operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. Its rectangular shape is constructed from a thermoplastic housing with a glass lens, ensuring durability. The sensor has a sensing distance of 1m and emits visible red light at a wavelength of 640 nm. It operates in Light-ON mode and features a single digital output (PNP/NPN transistor) with a rapid response time of 0.7ms / 0.0007 s.

Part#:Q12AB6LPQ5

Manufacturer:Banner

Product Lifecycle:Active

Get a quick Quote!

Banner Engineering Q12AB6LPQ5 is a polarized photo-electric sensor designed for a variety of applications requiring precise detection. It operates within an ambient air temperature range of -20 to +55 °C and features a retro-reflective mode for enhanced sensing capabilities. This sensor is pre-wired with a 6" / 150mm pigtail that terminates with a 4-pin Euro-style M12 connector, ensuring easy integration into existing systems. Part of the Q12 series, it boasts an IP67 degree of protection, making it suitable for use in demanding environments. The Q12AB6LPQ5 operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. Its rectangular shape is constructed from a thermoplastic housing with a glass lens, ensuring durability. The sensor has a sensing distance of 1m and emits visible red light at a wavelength of 640 nm. It operates in Light-ON mode and features a single digital output (PNP/NPN transistor) with a rapid response time of 0.7ms / 0.0007 s.

About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q12AB6LPQ5 Banner price in the box on the right side or send a quick quote.

Product Details

IO Link
No
Feature: Chemical Resistant
No
Feature: Audible
No
Feature: Hazardous Area
No
Feature: Timing (Hold/Delay)
No
Adjustments
N/A
Opposed Mode Emitter/Receiver
N/A
Barrel Diameter (mm)
N/A
Indicator
LEDs
Max Op. Relative Humidity [%]
95% @ 50°C
Repeatability (µs)
175
Sensing Beam Wavelength
640
Special Feature: Water Detection
No
Special Feature: Intrinsically Safe
No
DeviceNet
No
Feature: Encapsulated
No
Lens Material
Glass
IP Rating
IP67
Number of Pins
4
Delay at Power-up (ms)
120

Special Feature: Remote Teach

Output response time (ms)

0.7

Operation

Light Operate

Min Op. Temp. (°C)

-20

Quick Disconnect Type

M12 (Euro)

Max Op. Temp. (°C)

Max Sensing Distance (mm)

1000

Connection

Pigtail QD

Power Supply/Supply Voltage

10-30 V dc

Outputs

Bipolar (NPN & PNP)

Cable Length (m)

0.15

Input/Output

Discrete

Primary Housing Material

Thermoplastic

Housing Style

Rectangular

Sensing Mode (Detailed)

Polarized

Sensing Mode (General)

Retroreflective

Power

Sensing Beam

Visible Red LED

Wavelength

640 nm

Light Color

Visible red

Sensing distance

Shape

Rectangular

Sub-range name

Q12 series

Compliant with standard(s)

cURus CE

Primary brand

Banner Engineering

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Degree of protection

IP67

Main function

Sensor (Photo-electric)

Functions

Polarized photo-electric sensor green LED (power ON) yellow LED (signal)

Product series / family name

WORLD-BEAM series

Design

retro-reflective mode

Operating mode

Light-ON

Connection type

Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector

Ambient air temperature for operation

-20...+55 °C

Digital outputs

1 x digital output (PNP/NPN transistor)

Response time

0.7ms / 0.0007 s

Order code / Manufacturer SKU

74145

Material

thermoplastic housing Glass lns.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
