Q120RA-US-AF

Banner

Product Lifecycle: Active

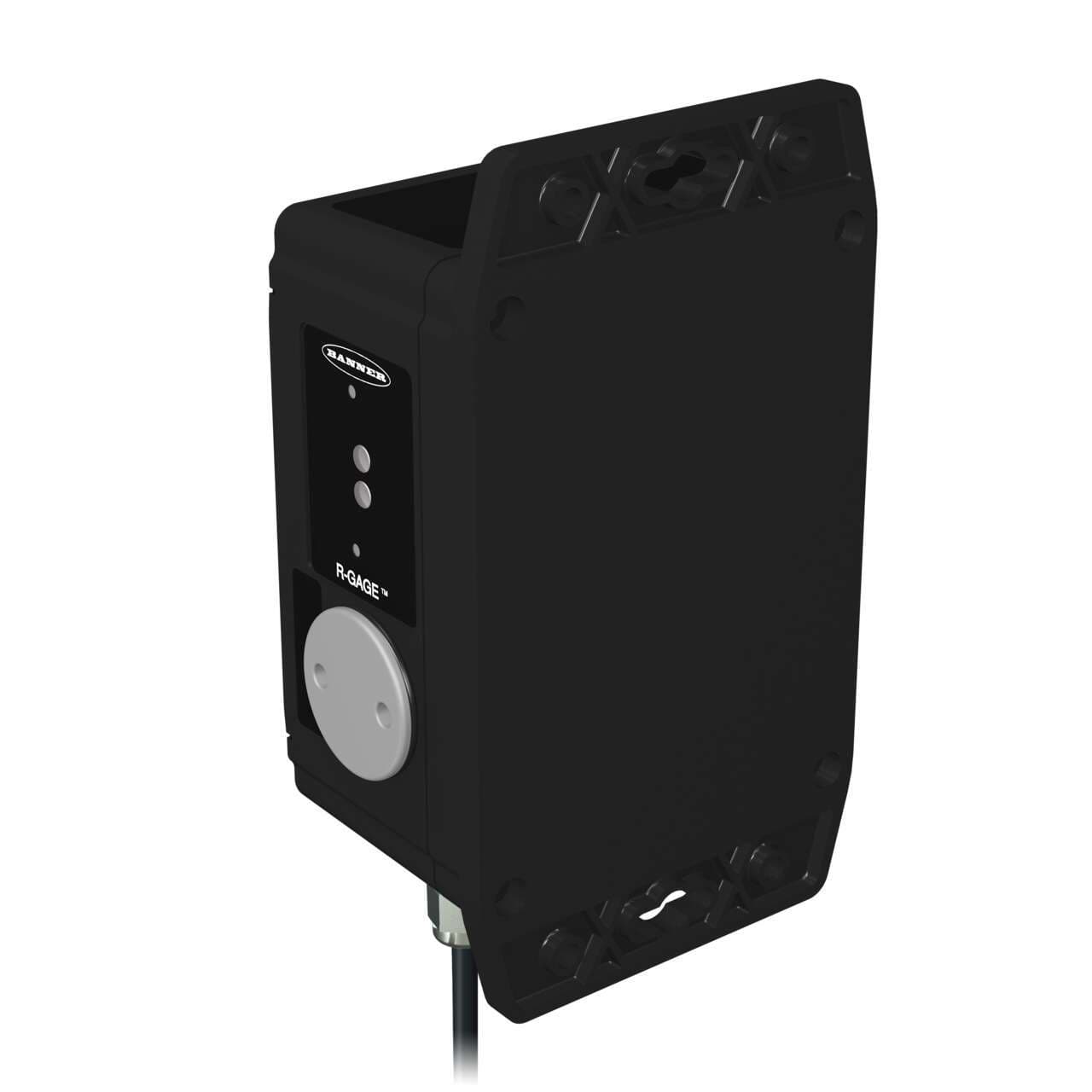

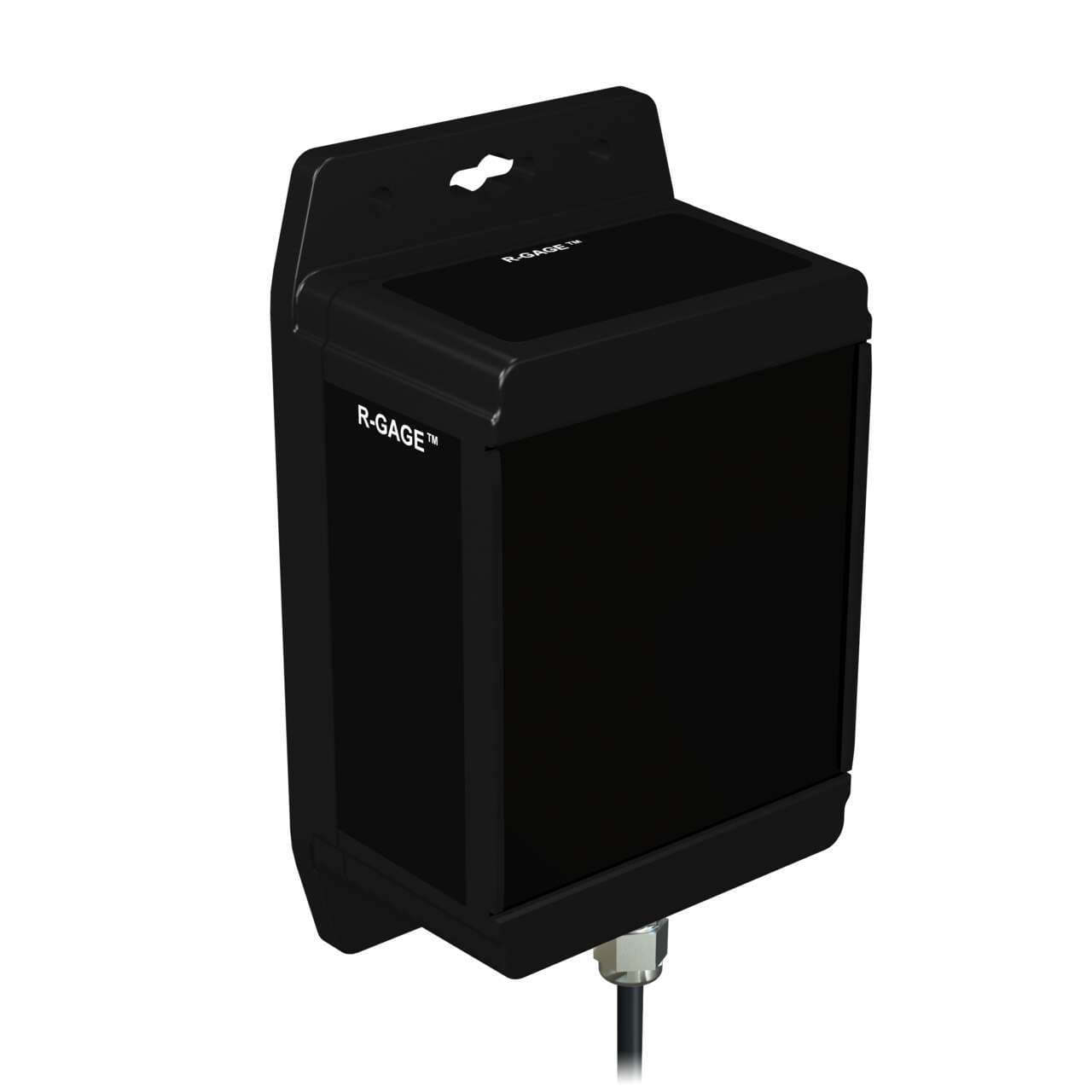

Banner Engineering Q120RA-US-AF is a narrow-beam adjustable-field radar sensor designed with a time-of-flight system and is US / Brazil Telecom-approved. It operates within an ambient air temperature range of -40 to +65 °C and is housed in an ABS / Polycarbonate (PC) material, ensuring durability. This sensor is part of the Q120RA-AF series and features a pre-wired connection with a 6.5ft / 2m cable terminated with bare end flying leads for easy installation. It offers a sensing distance of 3.5 to 12m and operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc being nominal. The Q120RA-US-AF operates at a frequency range of 24.075GHz to 24.175GHz within the ISM band and provides one digital output (PNP/NPN transistor) for connectivity. It supports both Normally Open (NO) and Normally Closed (NC) operating modes and is equipped with protection functions against reverse polarity and short-circuit. The device is designed in a rectangular shape and offers a degree of protection rated at IP67, making it suitable for various industrial applications.

Q120RA-US-AF

Banner Engineering Q120RA-US-AF is a narrow-beam adjustable-field radar sensor designed with a time-of-flight system and is US / Brazil Telecom-approved. It operates within an ambient air temperature range of -40 to +65 °C and is housed in an ABS / Polycarbonate (PC) material, ensuring durability. This sensor is part of the Q120RA-AF series and features a pre-wired connection with a 6.5ft / 2m cable terminated with bare end flying leads for easy installation. It offers a sensing distance of 3.5 to 12m and operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc being nominal. The Q120RA-US-AF operates at a frequency range of 24.075GHz to 24.175GHz within the ISM band and provides one digital output (PNP/NPN transistor) for connectivity. It supports both Normally Open (NO) and Normally Closed (NC) operating modes and is equipped with protection functions against reverse polarity and short-circuit. The device is designed in a rectangular shape and offers a degree of protection rated at IP67, making it suitable for various industrial applications.

Q120RA CABLE WEB CAD DRAWING 2D/3D.pdf

R-GAGE Q120RA-AF Sensor.pdf

Q120RA CABLE WEB CAD DRAWING 2D/3D.stp

Product details

Q120RA CABLE WEB CAD DRAWING 2D/3D.pdf

R-GAGE Q120RA-AF Sensor.pdf

Q120RA CABLE WEB CAD DRAWING 2D/3D.stp

Cert: BrazilYes
Cert: USYes
ProfibusNo
1-wire Serial InterfaceNo
SSINo
WirelessNo

RS-485No

RS-422No

RS-232No

PROFINETNo

Common Ethernet ProtocolNo

IO LinkNo

Feature: Timing (Hold/Delay)No

Feature: Chemical ResistantNo

Supply Protection CircuitryProtected against reverse polarity and transient overvoltages

Power/Current Consumption (exclusive of load)< 100 mA

Minimum Response Time (ms)15

Min Operating Temperature (°C)-40

Max Operating Temperature (°C)65

IP RatingIP67

Output ProtectionProtected against short circuit

Number of Pins5

Max Discrete (Switched) Output (mA)150

Discrete (Switched) OutputsBipolar (NPN & PNP)

AdjustmentsDip Switch

Power Supply12-30 V dc

Delay at Power-up (ms)2000

Radar Beam Pattern (H x V °)24 x 50

Quick Disconnect TypeNo QD

Minimum Sensing Distance (mm)3500

ConnectionFlying Leads

Max Sensing Distance (mm)12000

IndicatorLED(s)

Input/OutputDiscrete

Primary Housing MaterialABS/Polycarbonate

Device TypeSensor

PC ConfigurableNo

Sensing Mode (Detailed)Time of Flight

Housing StyleRectangular

Sensing Mode (General)Proximity

Operating Frequency24 GHz

PowerDC

Max Measurement Range>5 m - <=20 m

Cable Length (m)2

Sensing BeamRadar

Supply voltage (DC)12Vdc-30Vdc (24Vdc nom.)

Sub-range nameQ120RA-AF

ShapeRectangular

Ambient air temperature for operation-40...+65 °C

Main functionSensor (Radar)

Sensing distance3.5...12m

Digital outputs1 x digital output (PNP/NPN transistor)

Emission frequency24.075GHz...24.175GHz (ISM band)

Product series / family nameR-GAGE series

Primary brandBanner Engineering

Designtime-of-flight system US / Brazil Telecom-approved

MaterialABS / polycarbonate housing

Compliant with standard(s)cULus CE

FunctionsNarrow-beam adjustable-field radar sensor green LED (power ON) yellow LED (output state)

Connection typePre-wired with 6.5ft / 2m cable terminated with bare end flying leads

Protection functionsReverse polarity Short-circuit

Equivalent toQ120RAUSAF

Operating modeNO (Normally Open) NC (Normally Closed)

Degree of protectionIP67

Order code / Manufacturer SKU54278
