PVA100P6QK W/15 Banner Electronic Components

PVA100P6QK W/15 on Powermatic Associates
Banner

Part#:PVA100P6QK W/15

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

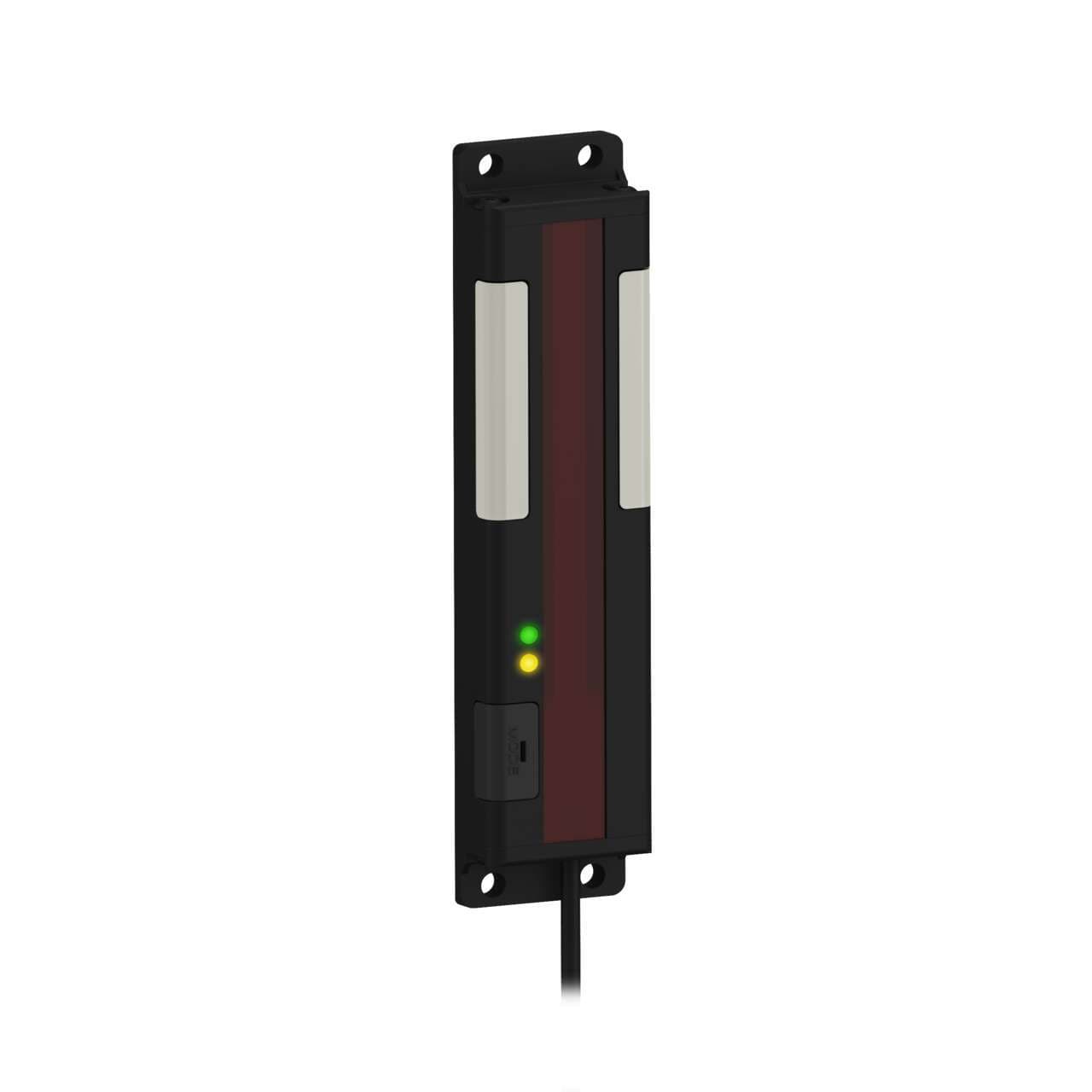

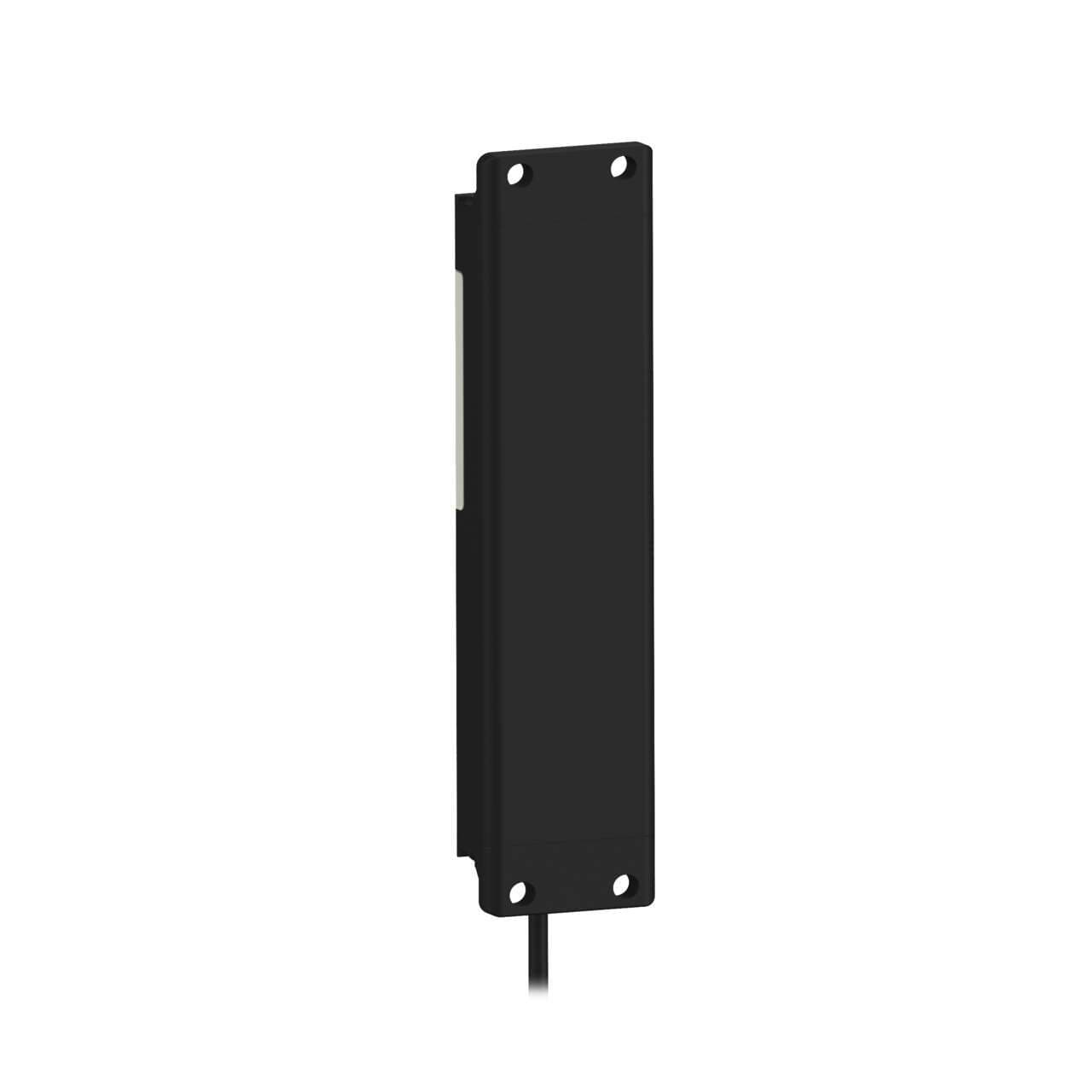

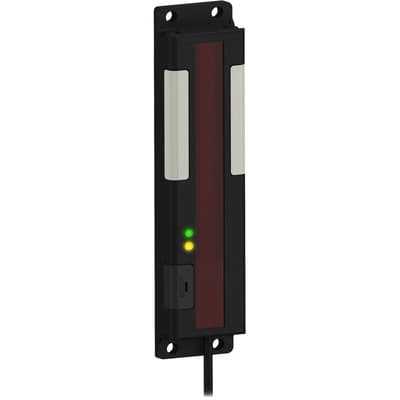

PVA Series: 100 mm Array, E/R and bracket kit; Range: 2 m; Input: 12 to 30 V dc, Output: 1 PNP (on receiver), Euro 15 inch Pigtail QD

Product Details

  • Wireless
    No
  • Feature: Chemical Resistant
    No
  • Job Light
    Green
  • Pro-Editor Compatible (Discrete)
    No
  • NEMA Type and UL Type Rating
    NEMA 2
  • Primary Housing Color
    Black
  • Modbus RTU
    No
  • IO Link
    No
  • Environmental Rating
    IP62
  • Max Op. Temperature (°C)
    50
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Sensing Resolution (mm)
    35.0
  • Primary Window Material
    Acrylic Clear
  • Button Operation
    Momentary
  • Beam Spacing (mm)
    25.0
  • Number of Beams
    5
  • Maximum Sensing Distance (mm)
    2000
  • Input Type
    Bimodal (PNP/NPN)
  • Array Length (mm)
    100.0
  • Max Output Response Time (ms)
    20
  • Max Current Color (mA)
    62
  • Output Type
    PNP
  • Operation
    Normally Open/Normally Closed
  • Supply Voltage
    12-30 V dc
  • Sensing Array Length (mm)
    100
  • Color Technology
    Standard LED
  • Color Option 1
    Green
  • Animation Option 1
    Dip-Switch Controlled
  • Mounting Thread
    No Thread
  • Number of Colors / Segments
    1
  • Actuation
    Yes
  • Product Size (mm)
    Other
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Sensing Mode (General)
    Opposed
  • Power
    DC
  • Primary Housing Material
    Aluminum
  • Sensing Mode (Detailed)
    Emitter/Receiver Pair
  • Power Source
    DC
  • Cable Length (m)
    0.38
  • Physical Dimensions (LxWxH or DxH mm)
    137.8 x 30.0 x 15.0
  • Number of Input Pins/Conductors
    4
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Pigtail QD
  • Activation Function
    Optical
  • Housing Style
    Flat Mount - Array

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
