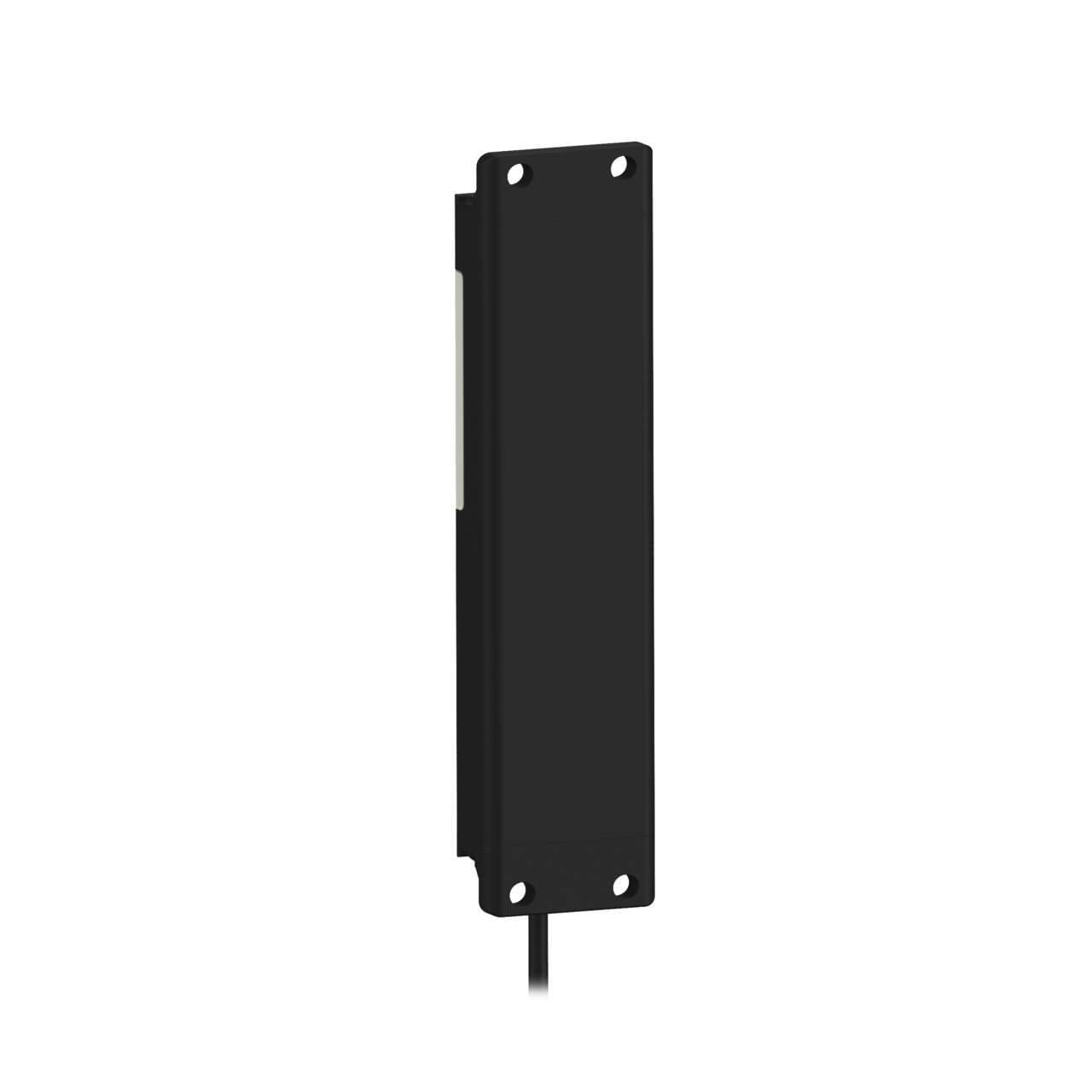

PVA100N6R Banner Optical Sensors

PVA100N6R on Powermatic Associates
Banner
  • PVA100N6R
  • PVA100N6R

Part#:PVA100N6R

Alt. Part#:51909

Manufacturer:Banner

Category:Optical Sensors

Product Lifecycle:Active

Product description

PVA Series: 100 mm Array - Receiver; Range: 2 m; Input: 12-30 V dc; Output: 1 NPN Programmable for LO/DO; 2 m (6.5 ft) Integral Cable

Product Details

  • Weight
    217.72416 g
  • Country Of Origin
    MX
  • Wireless
    No
  • Modbus RTU
    No
  • IO Link
    No
  • Feature: Hazardous Area
    No
  • Feature: Audible
    No
  • Sensing Resolution (mm)
    35.0
  • Button Operation
    Momentary
  • NEMA Type and UL Type Rating
    NEMA 2
  • Beam Spacing (mm)
    25.0
  • Feature: Quick Disconnect
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Job Light
    Green
  • Feature: Chemical Resistant
    No
  • Primary Window Material
    Acrylic Clear
  • Primary Housing Color
    Black
  • Max Op. Temperature (°C)
    50
  • Environmental Rating
    IP62
  • Number of Beams
    5
  • Physical Dimensions (LxWxH or DxH mm)
    137.8 x 30.0 x 15.0
  • Maximum Sensing Distance (mm)
    2000
  • Sensing Array Length (mm)
    100
  • Array Length (mm)
    100.0
  • Max Output Response Time (ms)
    20
  • Input Type
    Bimodal (PNP/NPN)
  • Output Type
    NPN
  • Supply Voltage
    12-30 V dc
  • Operation
    Normally Open/Normally Closed
  • Number of Input Pins/Conductors
    4
  • Max Current Color (mA)
    62
  • Connection
    Cable
  • Animation Option 1
    Dip-Switch Controlled
  • Color Option 1
    Green
  • Color Technology
    Standard LED
  • Product Size (mm)
    Other
  • Number of Colors / Segments
    1
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Mounting Thread
    No Thread
  • Cable Length (m)
    0.5
  • Actuation
    Yes
  • Activation Function
    Optical
  • Primary Housing Material
    Aluminum
  • Housing Style
    Flat Mount - Array
  • Power Source
    DC
  • Power
    DC
  • Sensing Mode (General)
    Opposed
  • Sensing Mode (Detailed)
    Receiver

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PVA100N6R on Powermatic Associates is $305.00. Order now.

About the product

Banner Engineering PVA100N6R is a photo-electric array sensor designed for precise object detection and measurement tasks. This sensor operates within an ambient air temperature of up to +50°C and features a net height of 15 mm. It comes pre-wired with a 2m pigtail that terminates with a 4-pin M12 connector, ensuring easy integration into various systems. The sensor's dimensions include a 100mm array length, a net width of 30 mm, and a net depth of 138 mm, housed in a durable aluminum casing with an acrylic window for sensor protection. It offers a degree of protection rated at IP62 NEMA 2, suitable for certain indoor applications. The PVA100N6R operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc, and has a rectangular shape. It is capable of sensing objects up to 2m away, with a 25mm beam spacing/pitch and emits green light for detection purposes. The operating modes available are NO (Normally Open) and NC (Normally Closed), and it features 1 x digital output (NPN transistor) for signal processing. The current consumption of this sensor is 62mA / 0.062 A, making it a practical choice for various automation tasks.
