Part#:PVA100P6E

Alt. Part#:50784

Manufacturer:Banner

Category:Optical Sensors

Product Lifecycle:Active

Product description

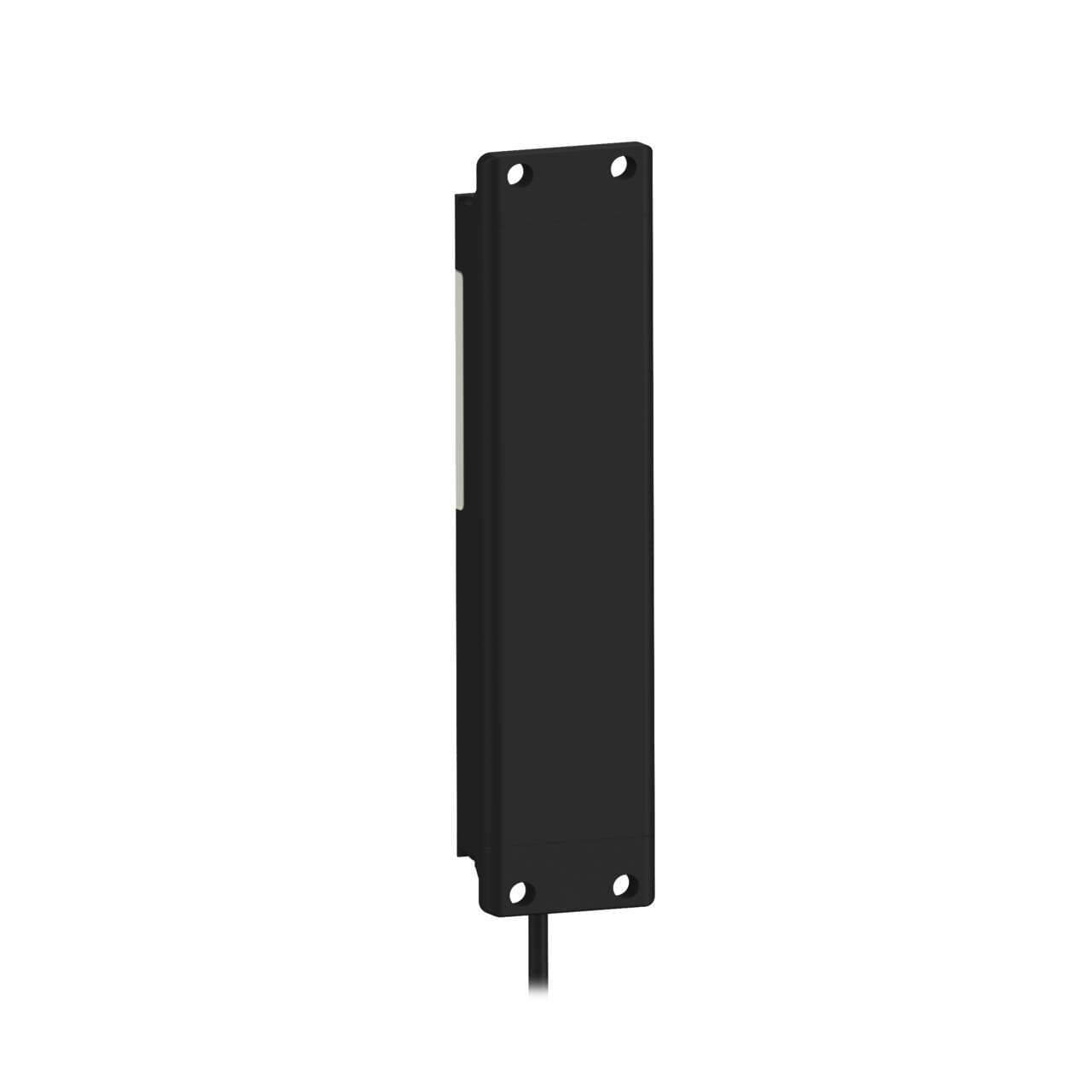

PVA Series: 100 mm Array - Emitter; Range: 2 m; Input: 12-30 V dc; Output: Not Applicable; 2 m (6.5 ft) Integral Cables

Product Details

  • Weight
    208.65232 g
  • Country Of Origin
    MX
  • IO Link
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Job Light
    Green
  • Modbus RTU
    No
  • Wireless
    No
  • Feature: Audible
    No
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • Sensing Resolution (mm)
    35.0
  • Primary Window Material
    Acrylic Clear
  • Primary Housing Color
    Black
  • Max Op. Temperature (°C)
    50
  • Button Operation
    Momentary
  • NEMA Type and UL Type Rating
    NEMA 2
  • Environmental Rating
    IP62
  • Number of Beams
    5
  • Beam Spacing (mm)
    25.0
  • Physical Dimensions (LxWxH or DxH mm)
    137.8 x 30.0 x 15.0
  • Array Length (mm)
    100.0
  • Maximum Sensing Distance (mm)
    2000
  • Sensing Array Length (mm)
    100
  • Max Output Response Time (ms)
    20
  • Number of Input Pins/Conductors
    4
  • Input Type
    Bimodal (PNP/NPN)
  • Supply Voltage
    12-30 V dc
  • Color Option 1
    Green
  • Animation Option 1
    Dip-Switch Controlled
  • Max Current Color (mA)
    62
  • Connection
    Cable
  • Color Technology
    Standard LED
  • Product Size (mm)
    Other
  • Number of Colors / Segments
    1
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Mounting Thread
    No Thread
  • Primary Housing Material
    Aluminum
  • Activation Function
    Optical
  • Housing Style
    Flat Mount - Array
  • Actuation
    Yes
  • Sensing Mode (Detailed)
    Emitter
  • Power
    DC
  • Sensing Mode (General)
    Opposed
  • Power Source
    DC
  • Cable Length (m)
    2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PVA100P6E on Powermatic Associates is $305.00. Order now.

About the product

Banner Engineering PVA100P6E is a photo-electric array sensor designed for a variety of automation applications. This emitter-only sensor operates within an ambient air temperature of up to +50°C and is housed in a durable aluminum casing with an acrylic window. It features a rectangular shape with dimensions of 100mm in array length, 30mm in width, and 138mm in depth. The sensor is pre-wired with a 6-inch (150mm) pigtail terminated with a 4-pin M12 connector for easy installation. It offers a sensing distance of up to 2 meters (2000mm) with a 25mm beam spacing/pitch and emits green light for detection purposes. The PVA100P6E operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc, and includes one digital output (PNP transistor). It is rated with a degree of protection of IP62 NEMA 2, indicating a certain level of dust and water resistance.
