PKW4M-416-MQDEC Banner Cordsets

PKW4M-416-MQDEC on Powermatic Associates
Banner

Part#:PKW4M-416-MQDEC

Manufacturer:Banner

Alt. Part#:25062

Product Lifecycle:Active

Get a quick Quote!

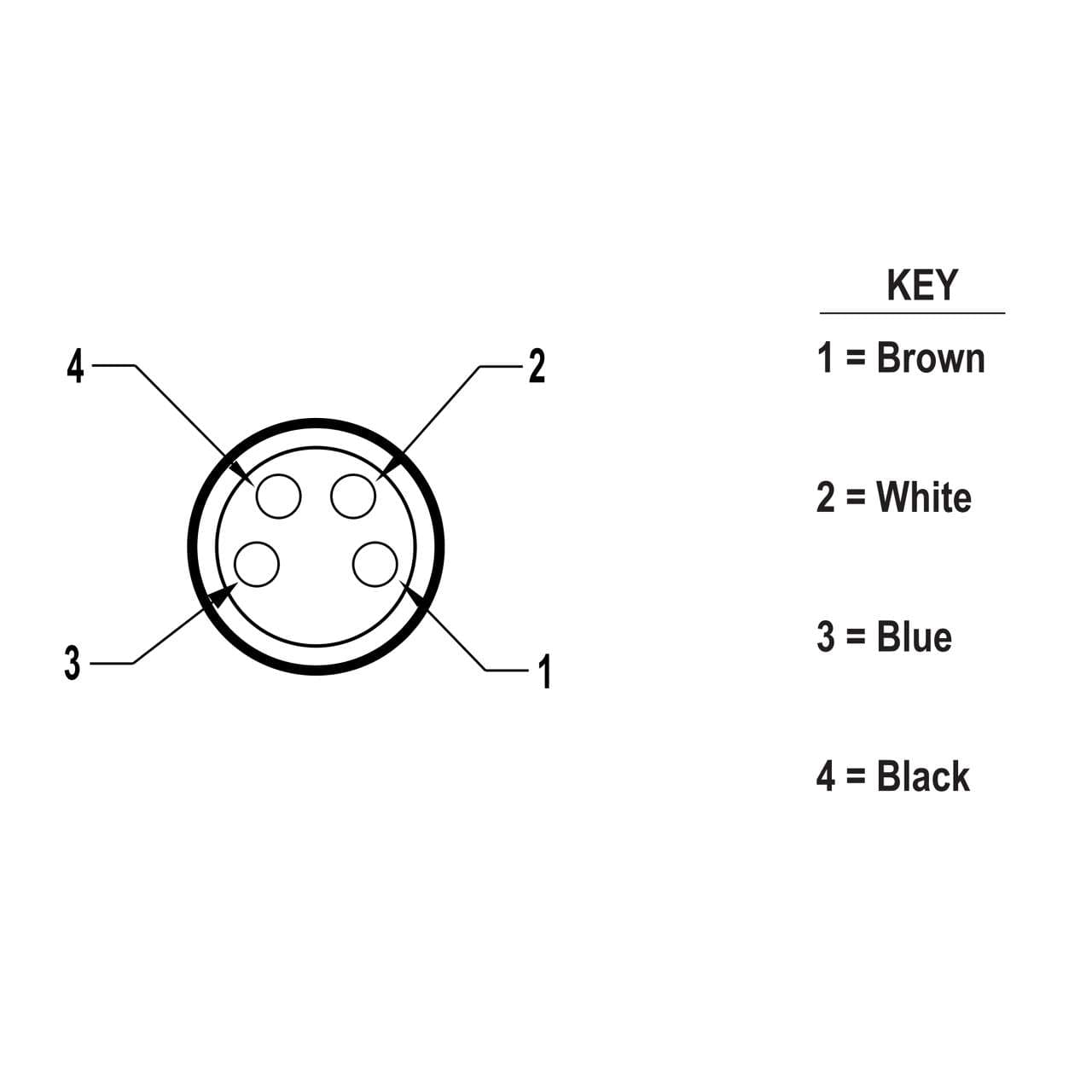

Cordset: Double Ended M8 to M12; 4-pin Right-Angle Female; 4-pin Straight Male; 5 m (16.4 ft) 3x24 Black PUR Jacket; Nickel-Plated Brass Coupling Nuts

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the PKW4M-416-MQDEC Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    68.0388 g
  • Country Of Origin
    TW
  • Oil/Grease Resistant
    No
  • Feature: Hazardous Area
    No
  • Secondary Number of Conductors
    4
  • Secondary Coupling Method
    M12 Single Key
  • Secondary Gender
    Male
  • Secondary AWG
    24
  • Secondary Orientation
    Straight
  • Secondary Connector Type
    EURO
  • Primary AWG
    24
  • Primary Number of Conductors
    4
  • Primary Orientation
    Right Angle
  • Primary Gender
    Female
  • Primary Coupling Method
    M8 Thread
  • Primary Connector Type
    PICO
  • IP Rating
    IP67
  • Voltage Rating (V)
    125 V ac/dc
  • Current Rating (A)
    4.0
  • Minimum Temp. (°C)
    -40
  • Maximum Temp. (°C)
    105
  • Coupling Material/Color
    Nickel Plated Brass
  • Trunk Length (m)
    No Trunk
  • Number of Connectors
    2
  • Outside Cable Diameter (mm)
    4.4
  • Shield/No Shield
    No Shield
  • Cable Jacket Color
    Black
  • Cable Jacket Material
    PUR
  • Number of Contacts
    3
  • Connector Body Material/Color
    PUR Black
  • Cordset Length (m)
    5

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PKW4M-416-MQDEC Description

Banner Engineering PKW4M-416-MQDEC is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 4.3mm diameter PVC cable and a 4-pin M8 female right-angled connector with bare end flying leads. The cable is protected by black sheathing and offers an ambient air temperature operation range of -40 to +105°C. It has a length of 16.4ft / 5m and is rated for a voltage of 125Vac. This part is designed to meet IP67 standards for protection against dust and water ingress.

Manufacturer warranty

$151.00

Request a quote, and we will send availability within minutes.

Select Qty:

$151.00

$151.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
